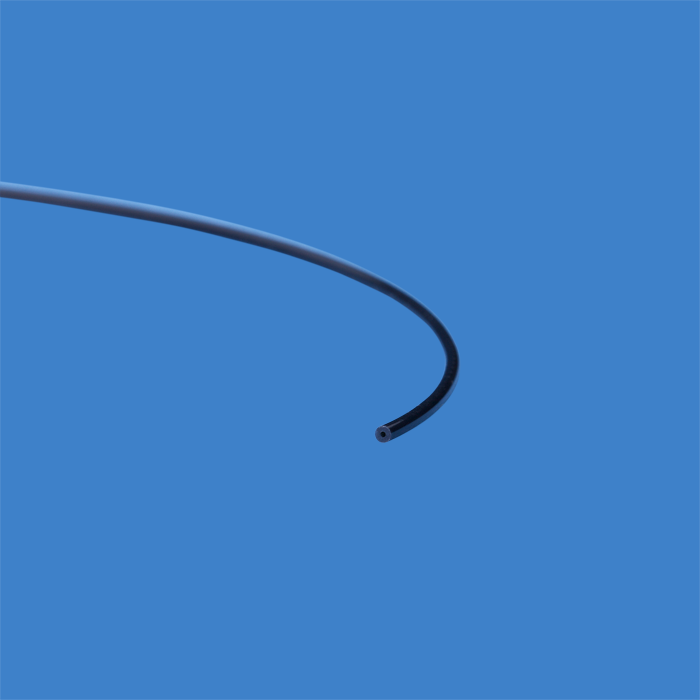

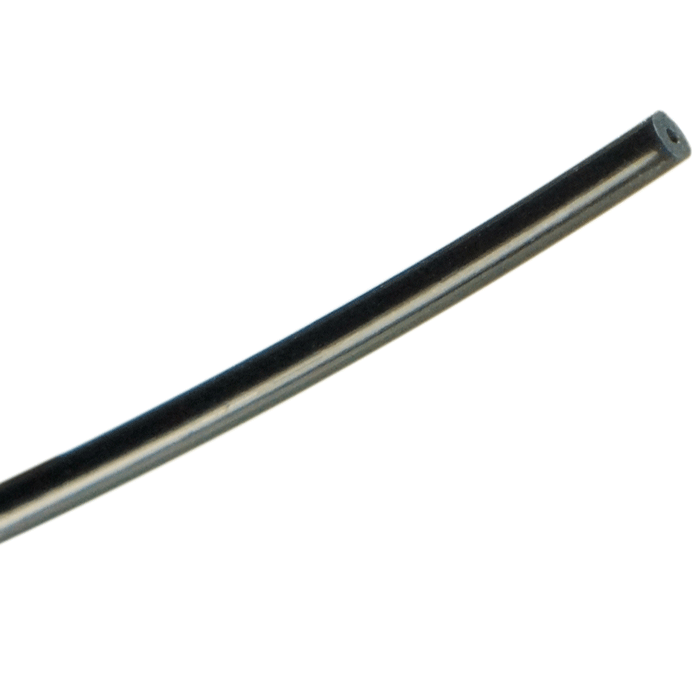

Tubing, PTFE, 0.020 inch (0.50 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, black, Your custom continuous length tubing, priced per meter. ARE-Applied Research brand.
Additional Info:
Polytetrafluoroethylene) tubing, which is extruded from virgin PTFE. No additives are added to the original PTFE material, except for particles for color coding.
This tubing is used widely in all low-pressure, laboratory applications including before and after an HPLC Pump such as with Mobile Phase Delivery and Solvent Waste Systems. Since PTFE tubing contains "micro-pores" in the tubing wall, which allows a quick air exchange, consideration for use with degassed and oxygen-sensitive solvents is needed.
Internal and Outer Dimensional Tolerance: +/- 0.20mm
Color: Black
Wall Thickness: 0.55 mm
Pressure rating: 725 psi (49.9 bar)
Max Temperature: 260°C
Lengths of 15 m or longer supplied on a convenient spool.
Other lengths available:
This is a CUSTOM ORDER manufactured item which cannot be returned or canceled once an order has been placed. Click HERE for more information on what is a Custom Order.
