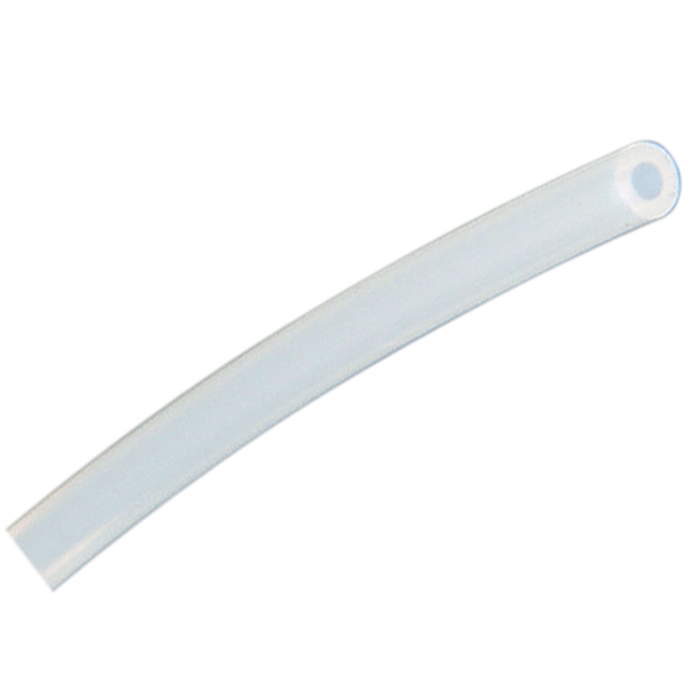

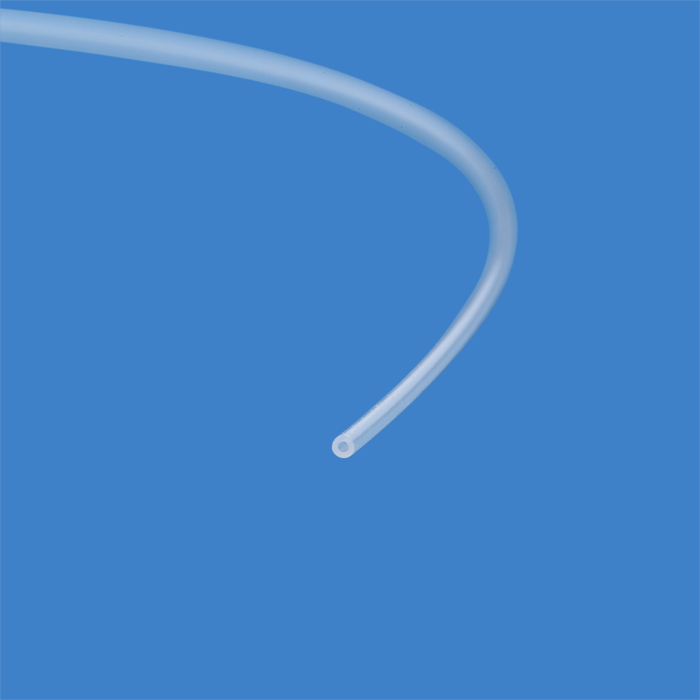

Tubing, PTFE, 0.030 inch (0.75 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-30-C ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution developed for HPLC, UHPLC, LC‑MS, and general laboratory applications, featuring a large internal diameter for high‑flow solvent handling and extended continuous length for flexible system routing.
Manufactured from 100% virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring low extractables and compatibility with sensitive analytical workflows.
Supplied on a convenient 25 meter spool, this configuration is ideal for bulk use, custom installations, and OEM applications.
Precision Dimensions – Maximum Flow Optimization
Inner Diameter (ID): 0.030" (0.75 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.425 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Largest ID in this series delivers maximum flow capacity with minimal restriction
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector solvent waste lines
Bulk solvent transfer
Pressure Rating: 510 psi (35.1 bar)
✅ Ideal for high‑volume, low‑pressure solvent movement over long distances
Virgin PTFE Construction – High Purity & Inertness
Manufactured from 100% virgin PTFE
No additives or plasticizers (except trace particles from manufacturing)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and trace‑level analytical applications
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for aggressive chemical environments and elevated temperatures
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores allowing slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive workflows
✅ Consider alternative tubing when gas impermeability is required
Flexible & Durable Design
Flexible for long‑distance routing and custom system integration
Durable under repeated laboratory use
Natural translucent appearance allows visual monitoring of flow
✅ Supports efficient installation and system maintenance
Convenient Spool Format – High Volume Efficiency
Supplied on a 25 meter spool
Ideal for:
Bulk laboratory use
Custom cut lengths
OEM manufacturing
✅ Reduces handling complexity and improves workflow efficiency
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Select the appropriate length for your application:
25 meter spool (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
High‑flow HPLC mobile phase delivery (pre‑pump)
Bulk solvent transfer and routing
Extended solvent waste lines
Low‑pressure laboratory fluid handling
OEM and instrument integration
