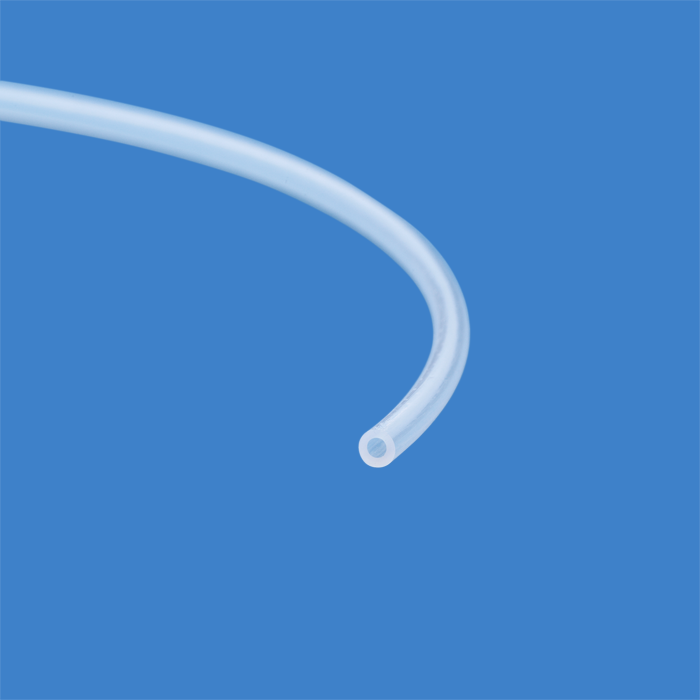

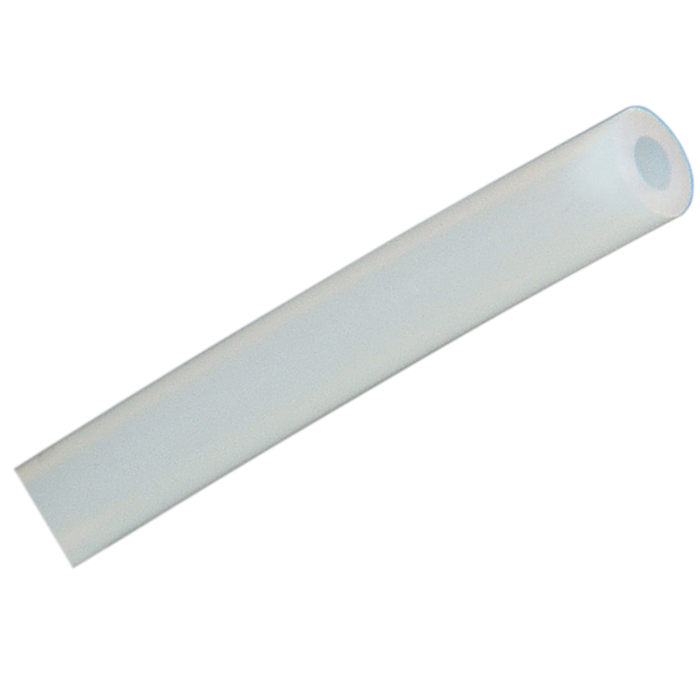

Tubing, PTFE, 1/16th inch (1.6 mm) ID, 1/8th inch (3.2 mm) OD, low pressure, 10 meter roll, ARE-Applied Research brand. 1 EA.

Additional Info:

This thin-walled PTFE (Polytetrafluoroethylene) tubing is extruded from virgin PTFE. No additives are added to the original PTFE material.

This tubing is used widely in all low-pressure, laboratory applications including before and after an HPLC Pump such as with Mobile Phase Delivery and Solvent Waste Systems. Since PTFE tubing contains "micro-pores" in the tubing wall, which allows a quick air exchange, consideration for use with degassed and oxygen-sensitive solvents is needed.

  • Internal and Outer Dimensional Tolerance: +/- 0.20mm

  • Color: Natural, Translucent

  • Wall Thickness; 0.80 mm

  • Pressure rating: 510 psi (35 bar)

  • Max Temperature: 260°C

Other lengths available:
