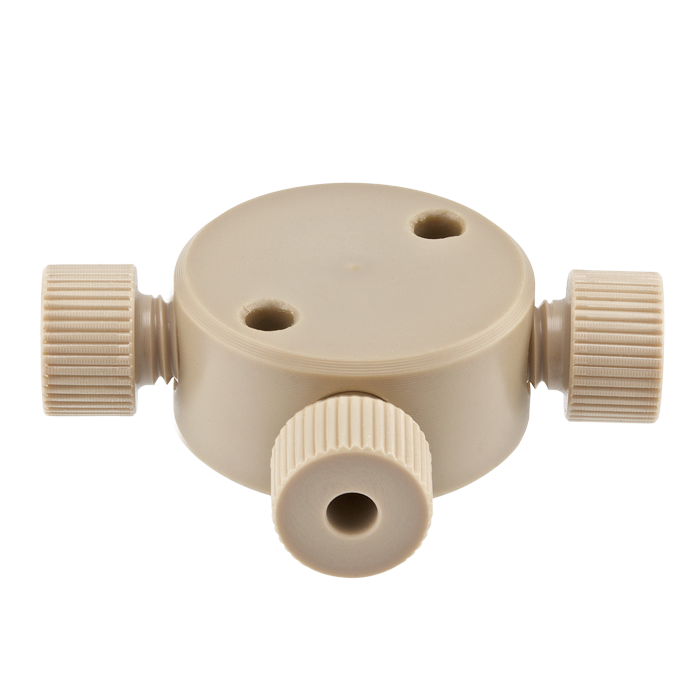

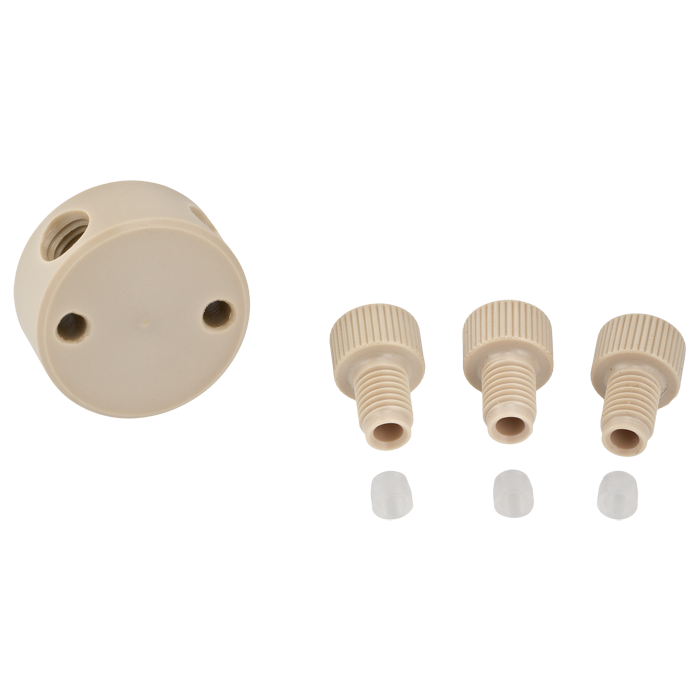

Union, connector set, Tee, low pressure, 1.5 mm / 0.060 inch through hole with 1/4-28 screw threads. PEEK, round with an internal "T". Use with 1/16 inch tubing. ARE-Applied Research brand. 1 each.
Additional Info:
Low‑pressure PEEK Tee union connector sets are designed for connecting three pieces of 1/16" tubing in laboratory and analytical fluidic systems requiring chemically resistant, metal‑free flow path components. The large 1.5 mm (0.060") through hole design and standard 1/4‑28 screw threads provide dependable low‑pressure tubing connections with increased internal flow capacity.
The 49302‑T13 Tee union is suitable for joining three tubing lines into one flow path or splitting one flow path into two outgoing lines in low‑pressure HPLC applications and laboratory fluid handling systems.
This Tee fitting contains an internal T configuration for versatile flow distribution and blending applications using compatible 1/4‑28 fittings and 1/16" tubing.
Key Benefits
Tee configuration for flow splitting or blending
Large 1.5 mm / 0.060" through hole design
All‑PEEK fluidic construction
Chemically resistant metal‑free flow path
Compatible with 1/16" tubing
Standard 1/4‑28 thread compatibility
Suitable for low‑pressure laboratory fluidics
Ideal for flow distribution applications
Specifications
Product Type: Tee union connector set
Material: PEEK
Through Hole Diameter: 1.5 mm / 0.060"
Thread: 1/4‑28
Configuration: Internal Tee (T)
Tubing Compatibility: 1/16" tubing
Pack Size: 1 each
Usage Notes
For low‑pressure fluidic applications
Designed for connecting three pieces of 1/16" tubing
Suitable for blending or splitting liquid flow
Compatible with standard 1/4‑28 threaded fittings
Not intended for high‑pressure UHPLC applications
