Tubing, Gas Tight, Polymeric 1/8'' OD x 1.65 mm ID. 1 Meter supplied in continuous length. ARE-Applied Research brand. 1EA.
Additional Information:
ARE-Applied Research Gas Tight Tubing is a dual-layer polymeric tubing system designed specifically for the transport of degassed solvents, purified water, and other laboratory fluids where minimizing gas permeation is important. Unlike conventional single-wall tubing, this design combines the chemical purity and inertness of FEP (fluorinated ethylene propylene) tubing with a non-porous PVDF (polyvinylidene fluoride) outer layer that helps prevent gas exchange through the tubing wall.
49811-01 consists of an FEP inner liner fused to a PVDF outer tubing layer, supplied as a continuous 1-meter length with a 1.65 mm internal diameter and 1/8 inch outer diameter. The FEP inner surface provides excellent chemical resistance and high purity fluid contact, while the PVDF outer layer provides an additional barrier against oxygen ingress and solvent outgassing. This construction makes the tubing particularly suitable for transporting degassed mobile phases and other oxygen-sensitive laboratory solutions.

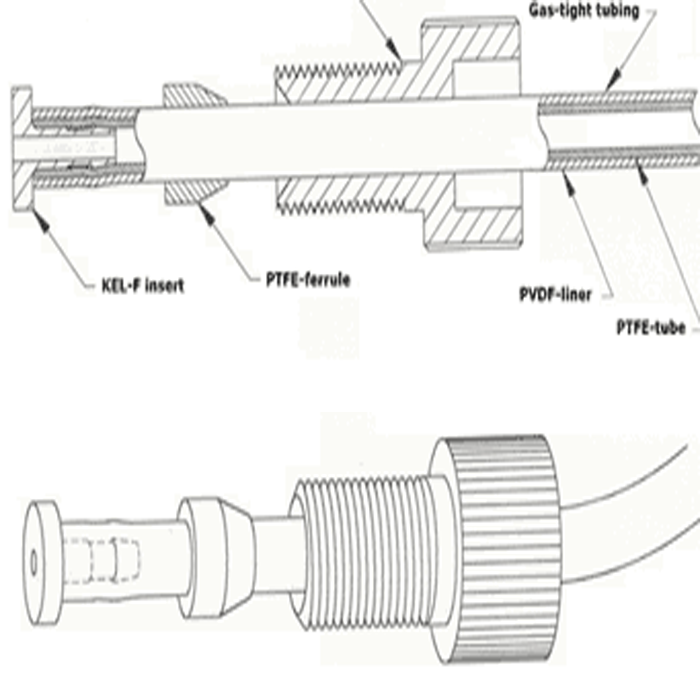

To maintain a gas-tight connection at tubing interfaces, Kel-F inserts are used inside the FEP tubing bore. When combined with compatible polypropylene ferrules and flange-free low-pressure nuts, the system forms a reliable, leak-free, gas-tight fluid path for laboratory and chromatography applications.
Key Benefits
Dual-layer gas-tight tubing construction
Chemically inert FEP fluid-contact surface
Non-porous PVDF outer layer reduces gas permeation
Ideal for degassed solvents and oxygen-sensitive fluids
High-purity fluid pathway
Excellent chemical resistance
Helps maintain solvent integrity
Compatible with gas-tight tubing fittings and Kel-F inserts
Typical Applications
Degassed HPLC mobile phase transport
Solvent delivery systems
Laboratory water transfer
Oxygen-sensitive fluid handling
Chromatography systems
Analytical instrumentation
Mobile phase reservoir connections
Laboratory fluid transport applications
Specifications
Product Type: Gas Tight Polymeric Tubing
Inner Tubing Material: FEP
Outer Tubing Material: PVDF
Internal Diameter: 1.65 mm
Outer Diameter: 1/8 in.
Length: 1 Meter
Configuration: Continuous Length
Brand: ARE-Applied Research
Required Accessories
Gas-tight performance requires the use of Kel-F inserts and compatible low-pressure fittings.
Important Notes
Designed for transport of degassed solvents
FEP inner surface contacts the fluid path
PVDF outer layer helps prevent gas exchange
Use Kel-F inserts for proper sealing performance
Compatible with polypropylene ferrules and flange-free nuts
Suitable for chromatography and general laboratory applications
Helps preserve dissolved gas conditions in mobile phases
