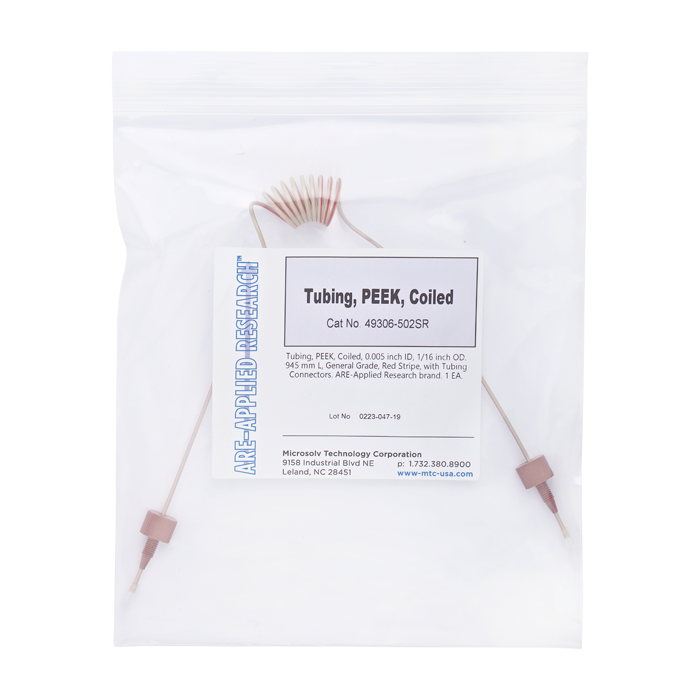

Tubing, PEEK, Coiled, 0.005 (0.13 mm) ID, 1/16th inch (1.6 mm) OD. 945 mm L, HPLC grade, red stripe, with tubing connectors. ARE-Applied Research brand. 1 EA.
Additional Info:
FlexiTubes™ is the trademarked product name used for these flexible, coiled PEEK tubing assemblies designed for space‑saving HPLC and laboratory fluidic applications.

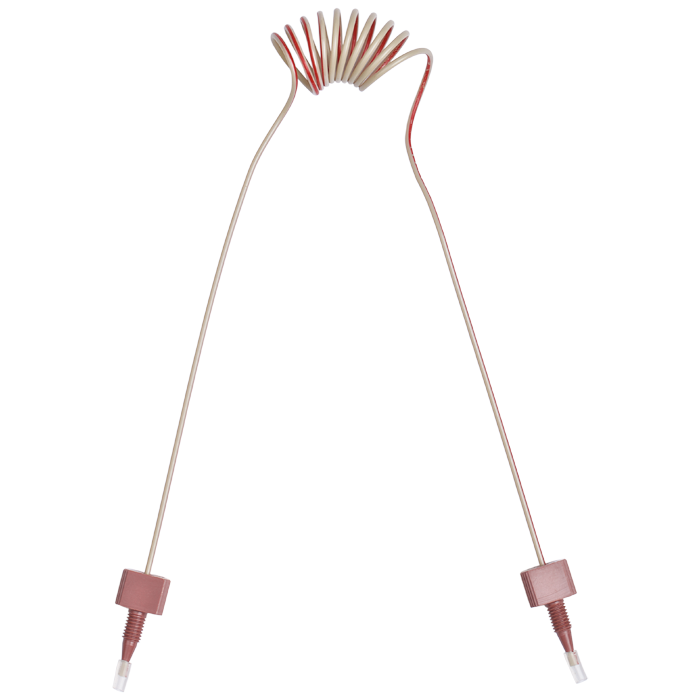

The 49306‑502SR FlexiTubes™ assembly consists of coiled HPLC grade PEEK tubing with a 0.005" (0.13 mm) ID, 1/16" (1.6 mm) OD, and 945 mm overall tubing length supplied with tubing connectors for convenient installation and routing between HPLC system components.
The coiled tubing design expands and contracts during use, helping reduce excess tubing clutter behind instruments and in crowded laboratory workspaces while maintaining flexible fluidic routing.
These coiled tubing assemblies may also provide a pulse dampening effect in parabolic flow fluid applications, which can contribute to quieter baselines and help reduce band broadening associated with excessive tubing lengths.
This Type 3 FlexiTubes™ configuration is color coded with a red stripe to identify the 0.005" (0.13 mm) internal diameter tubing size.
Key Benefits
FlexiTubes™ trademarked coiled tubing design
HPLC grade PEEK tubing construction
Flexible expanding and contracting coil format
Helps save space behind laboratory instruments
May reduce excess tubing clutter
Potential pulse dampening effect
Red stripe color coding for 0.005" ID identification
Includes tubing connectors for installation
Specifications
Product Type: Coiled PEEK tubing assembly
Brand: ARE‑Applied Research
Trade Name: FlexiTubes™
Tubing Material: PEEK
Tubing ID: 0.005" (0.13 mm)
Tubing OD: 1/16" (1.6 mm)
Tubing Length: 945 mm
Coil Width at Rest: 20 mm
Coil Width Fully Extended: 120 mm
Color Code: Red stripe
Includes: Tubing connectors
Pack Size: 1 each
Applications
HPLC fluidic connections
Space‑saving laboratory tubing layouts
Instrument‑to‑instrument tubing connections
Flexible routing behind HPLC systems
General analytical laboratory fluidics
Usage Information
Designed for HPLC and laboratory fluidic applications
Flexible coil design expands and contracts during use
Helps organize excess tubing length in limited spaces
Red stripe color coding identifies 0.005" ID tubing
Compatible with standard 1/16" HPLC fluidic systems
