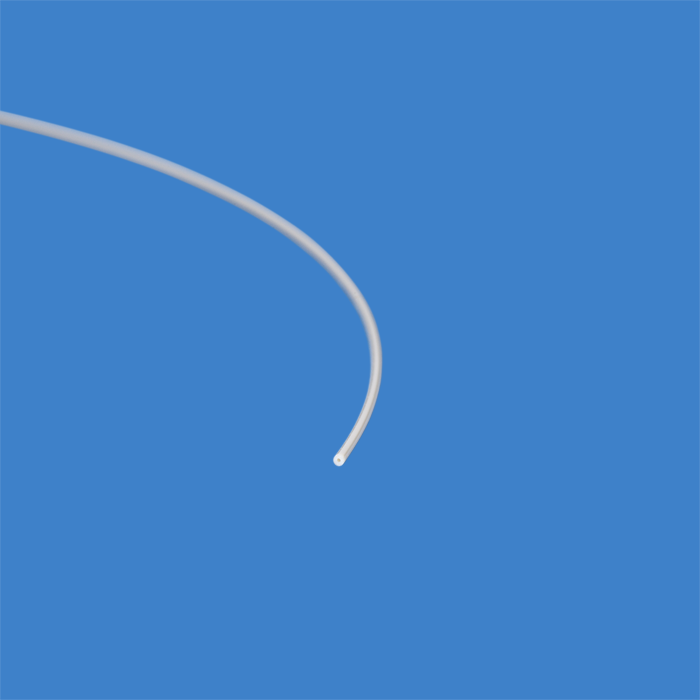

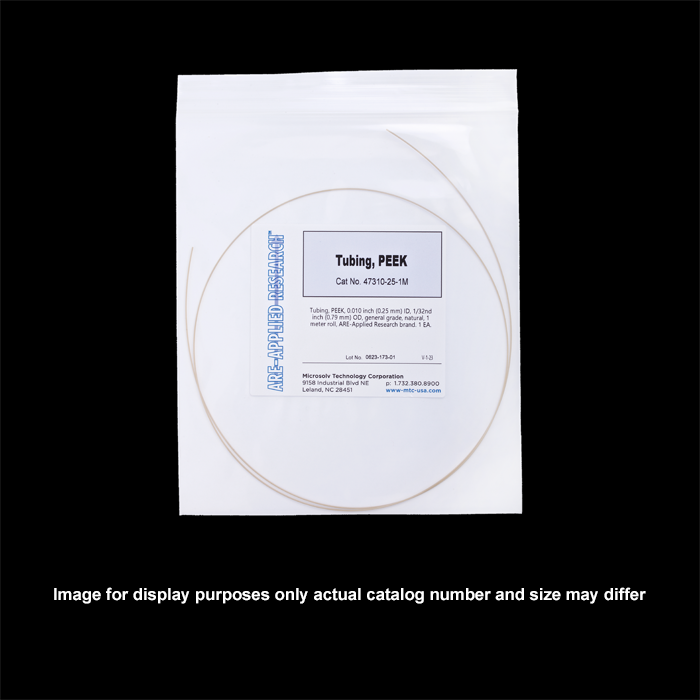

Tubing, PEEK, 0.010 inch (0.25 mm) ID, 1/32nd inch (0.79 mm) OD, general grade, natural, 3 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
This general grade PEEK tubing is manufactured from virgin PEEK material without processing additives for chromatography and laboratory fluidic applications.
The 47310‑25‑3M tubing features a 0.010" (0.25 mm) ID with a 1/32" (0.79 mm) OD for applications requiring low internal volume and narrow flow paths.
No color additives are used, leaving the tubing natural virgin PEEK throughout the internal and external surfaces to minimize potential leachables.
Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
Key Benefits
Virgin PEEK tubing construction
Natural color tubing
Narrow internal flow path
Low internal volume tubing
Suitable for HPLC and LC‑MS
Chemically resistant tubing
Metal‑free fluidic pathway
3 meter roll format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: General
Material: Virgin PEEK
Tubing ID: 0.010" (0.25 mm)
Tubing OD: 1/32" (0.79 mm)
Wall Thickness: 0.27 mm
Tolerance: ± 0.05 mm
Color: Natural
Pressure Rating: 4500 psi (310 bar)
Length: 3 meter roll
Applications
Analytical HPLC
LC‑MS systems
Low internal volume fluidics
Metal‑free chromatography pathways
Narrow bore fluid transfer
Usage Information
Designed for chromatography and laboratory applications
Natural virgin PEEK throughout tubing pathway
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
