Tubing, PTFE, 0.011 inch (0.3 mm) ID, 0.031 inch (0.8 mm) OD, low pressure. 25 meter roll, ARE-Applied Research brand. 1 EA.
Additional Information:
ARE-Applied Research PTFE (Polytetrafluoroethylene) tubing is manufactured from virgin PTFE resin without additives or fillers. PTFE tubing is widely used in low-pressure laboratory fluid handling applications due to its broad chemical compatibility, temperature resistance, and inert surface characteristics. Because PTFE tubing contains microscopic pores within the tubing wall, it allows relatively rapid gas exchange compared to ETFE tubing, making it less suitable for degassed solvents or oxygen-sensitive mobile phases.

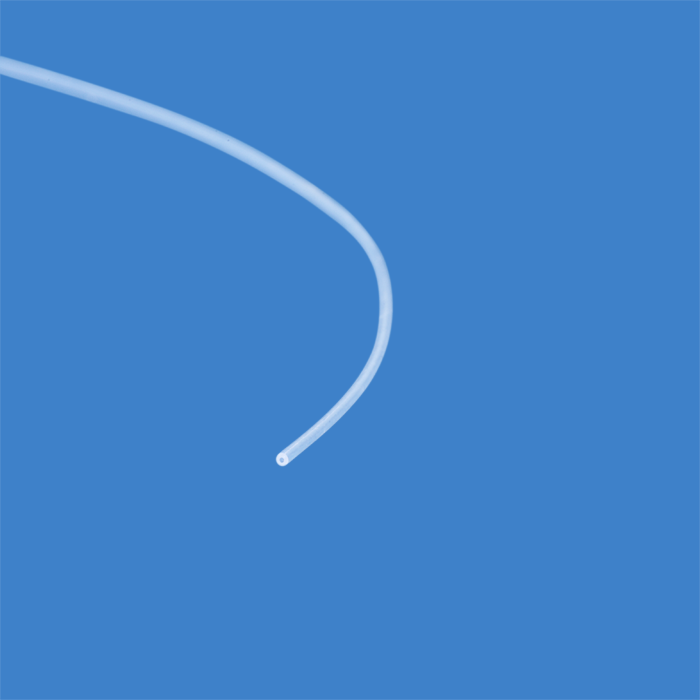

49225-80-C is supplied as a 25-meter continuous roll of natural translucent PTFE tubing with a 0.011 inch (0.3 mm) internal diameter and 0.031 inch (0.8 mm) outer diameter. The small internal diameter helps minimize dead volume and is well suited for low-flow analytical applications, sample transfer, and laboratory fluid pathways where minimizing volume is important. For improved handling, storage, and dispensing, this tubing length is supplied on a convenient spool.
The tubing is suitable for use before and after HPLC pumps, including mobile phase delivery, solvent waste handling, reagent transfer, and general laboratory fluid transport. PTFE offers excellent chemical resistance and can withstand temperatures up to 260°C. This product is compliant with RoHS EU Directive 2011/65/EU and amendment (EU) 2015/863 regarding restricted hazardous substances.
Key Benefits
Manufactured from virgin PTFE resin
No additives or fillers
Excellent chemical resistance
Small internal diameter helps minimize dead volume
Suitable for low-flow laboratory applications
High temperature resistance up to 260°C
Supplied on a convenient spool
RoHS compliant
Typical Applications
HPLC mobile phase delivery
HPLC solvent waste systems
Sample transfer
Laboratory fluid transfer
Analytical instrumentation
Reagent delivery
Low-flow fluid pathways
General laboratory fluid handling
Specifications
Product Type: PTFE Tubing
Material: PTFE (Polytetrafluoroethylene)
Internal Diameter: 0.011 in. (0.3 mm)
Outer Diameter: 0.031 in. (0.8 mm)
Wall Thickness: 0.25 mm
Color: Natural, Translucent
Length: 25 Meters
Packaging: Spool
Maximum Temperature: 260°C
Dimensional Tolerance: ±0.10 mm
RoHS Compliance: Yes
Brand: ARE-Applied Research
Additional Lengths
Custom Length Information
Custom cuts are available for applications requiring specific tubing lengths.
Important Notes
Low-pressure tubing application
Supplied on a convenient spool
Manufactured from virgin PTFE resin
PTFE walls allow greater gas exchange than ETFE tubing
Consider solvent permeability when using degassed or oxygen-sensitive solvents
Maximum operating temperature of 260°C
RoHS compliant
Excellent chemical resistance
Suitable before and after HPLC pumps
