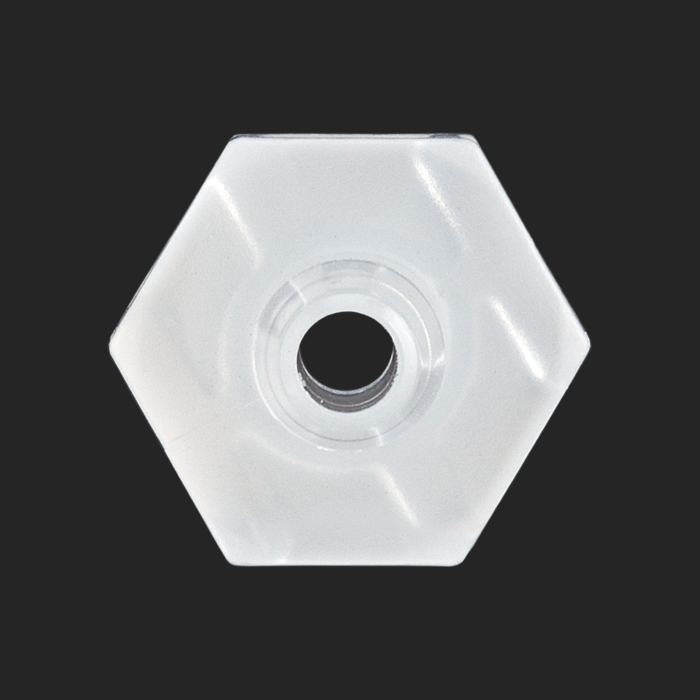

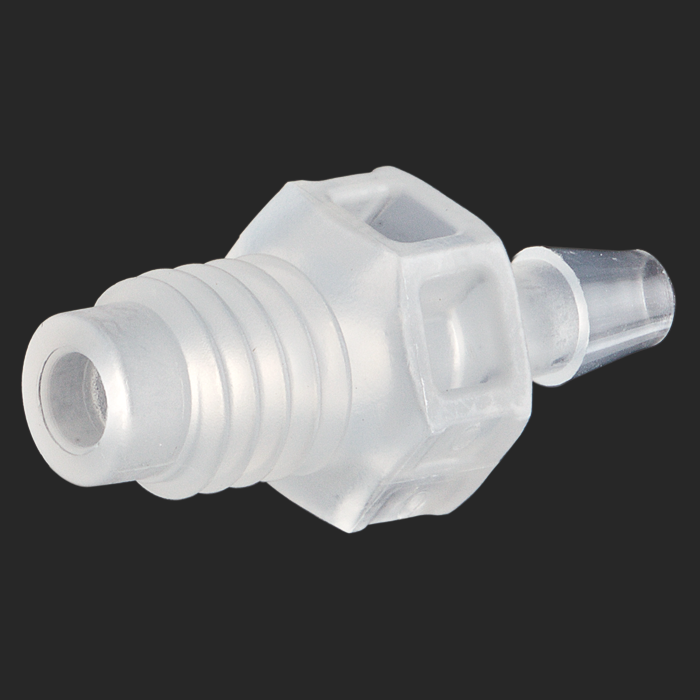

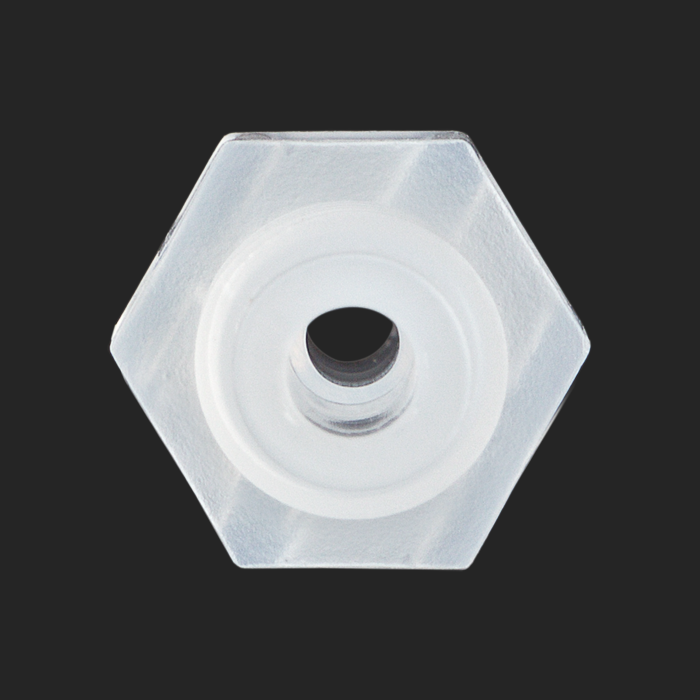

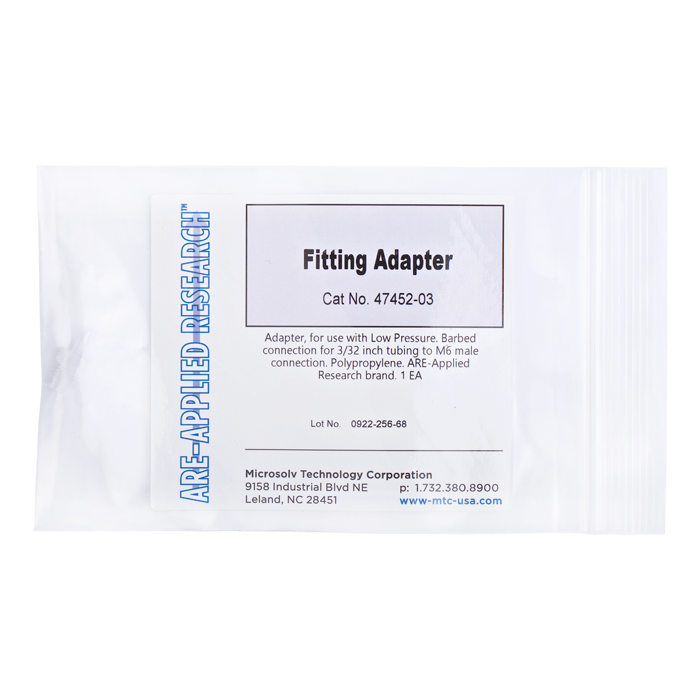

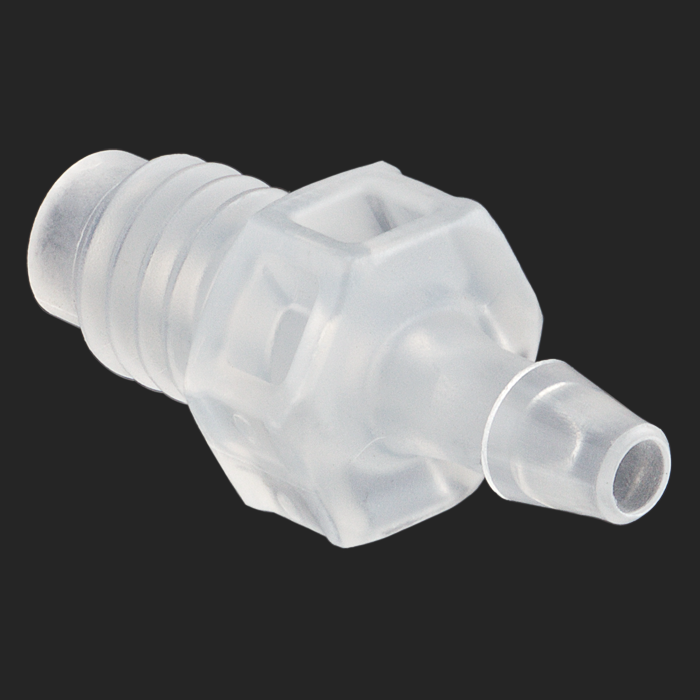

Adapter, for use with low pressure. Barbed connection for 3/32 inch tubing to M6 male connection. Polypropylene. ARE-Applied Research brand. 10/PK.
Additional Info:
Low‑pressure polypropylene adapters are designed for laboratory and analytical fluidic systems requiring dependable barbed‑to‑threaded tubing transitions. These fittings are suitable for solvent transfer, waste lines, and general low‑pressure fluid handling applications used in HPLC laboratories and related analytical systems.
The 47452‑03‑010 (10/Pack) adapters feature a European‑style M6 male threaded connection on one side for compatibility with European laboratory and HPLC fluidic systems.
The opposite side contains a barbed fitting designed for secure connection to 3/32" tubing. When tubing is pushed over the barb, the fitting helps maintain dependable tubing retention during low‑pressure fluid transfer operations.
Manufactured from chemically resistant polypropylene material, these adapters are suitable for a broad range of laboratory fluid handling applications where durable, lightweight polymer fittings are preferred.
Key Benefits
European‑style M6 male threaded connection
Barbed fitting for 3/32" tubing
Chemically resistant polypropylene construction
Suitable for low‑pressure laboratory fluidics
Secure tubing retention design
Compatible with European HPLC systems
Lightweight polymer fitting construction
10/Pack configuration for laboratory replacement needs
Specifications
Product Type: Barbed to threaded adapter
Material: Polypropylene
Thread Configuration: M6 male
Tubing Connection: Barbed fitting
Tubing Size Compatibility: 3/32" tubing
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Pack Size: 10
Applications
Low‑pressure HPLC systems
European instrument fluidic connections
Laboratory solvent transfer
Fluid waste line connections
General laboratory tubing integration
Analytical fluid handling systems
Usage Notes
Designed for low‑pressure applications
Tubing secures by sliding over barbed fitting
Compatible with European‑style M6 threaded systems
Suitable for 3/32" tubing
Suitable for laboratory fluid transfer systems
Not intended for UHPLC ultra‑high‑pressure applications
