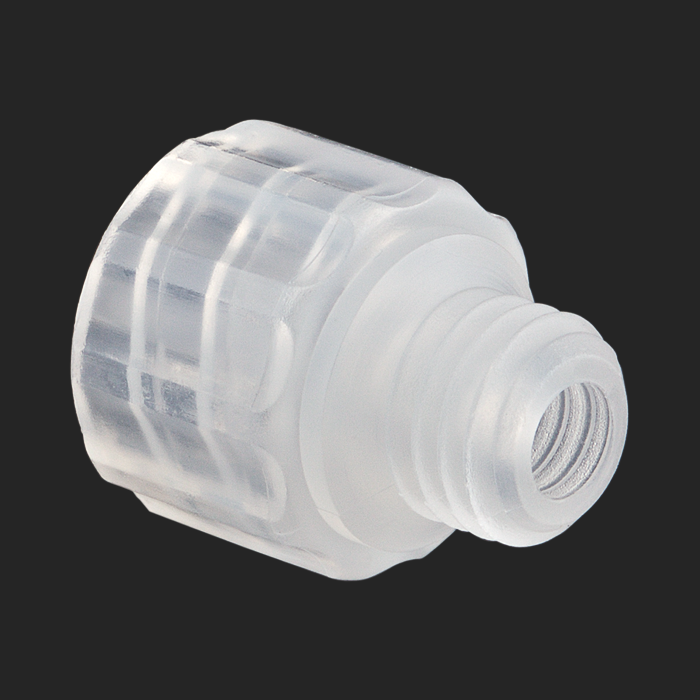

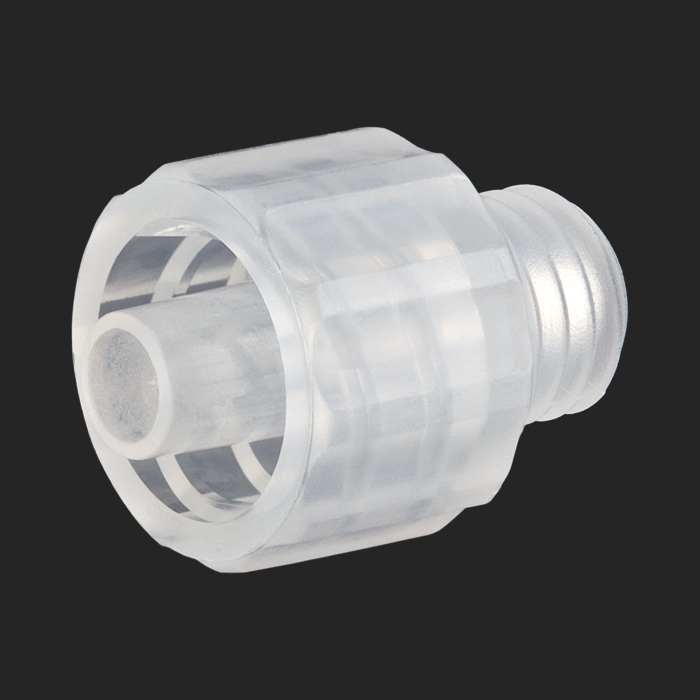

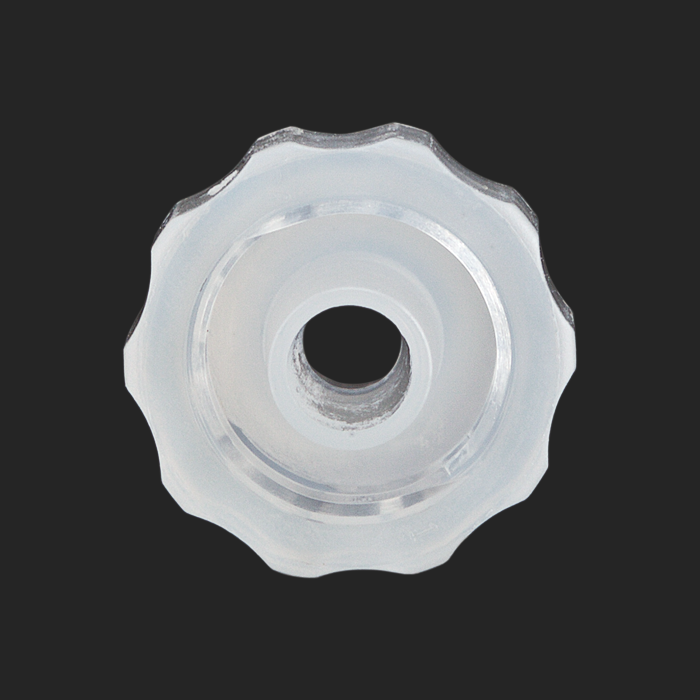

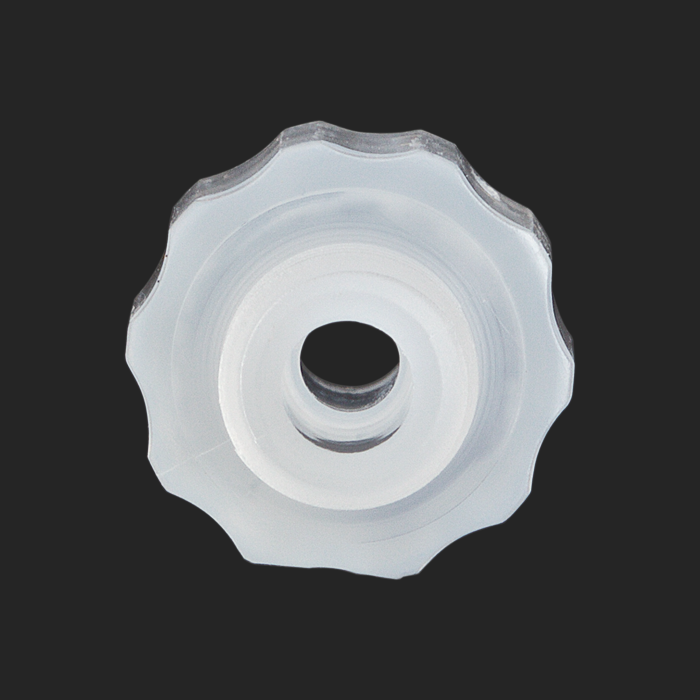

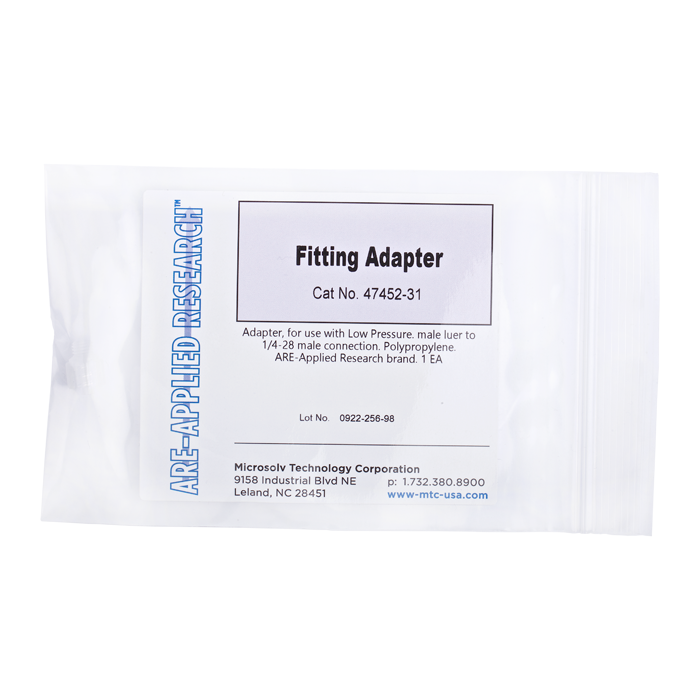

Adapter, for use with low pressure. Male luer to 1/4-28 male connection. Polypropylene. ARE-Applied Research brand. 10/PK.

Additional Info:

This adapter has a male Luer Lock connection on one side and a 1/4-28 threaded male connection on the other sidewith a through hole of 0.163 inches (4.15 mm).

This adapter is excellent when using a syringe filter or other device that has a female Luer Lock or Luer Slip port and you want to connect to a port with a 1/4-28 screw threaded female port and 1/8th inch (3.2 mm) OD tubing.

  • Maximum Temperature: 100°C.

  • Maximum Pressure: 1,000 psig.

  • Click HERE for bulk pricing.

NOTE: A 1/8th inch ID ETFE ferrule is required to work with the Male 1/4-28 threaded connection which is sold separately. Click HERE for ordering information.
