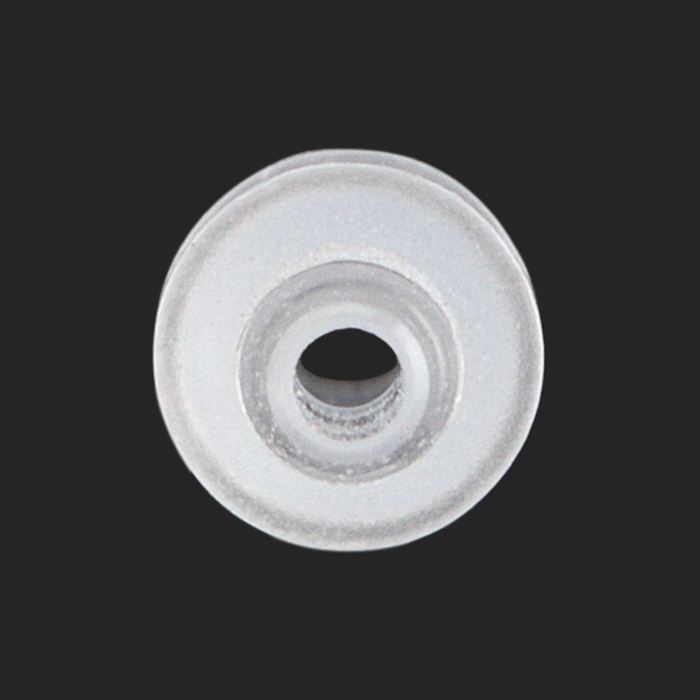

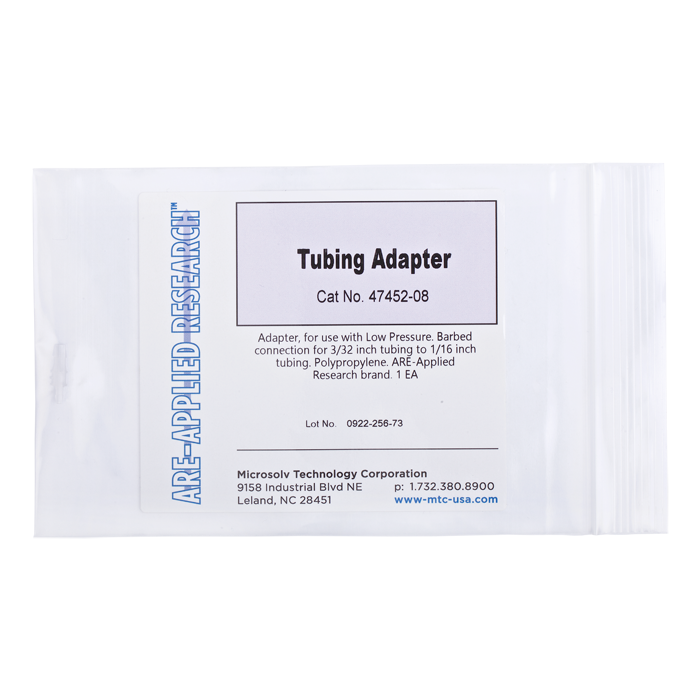

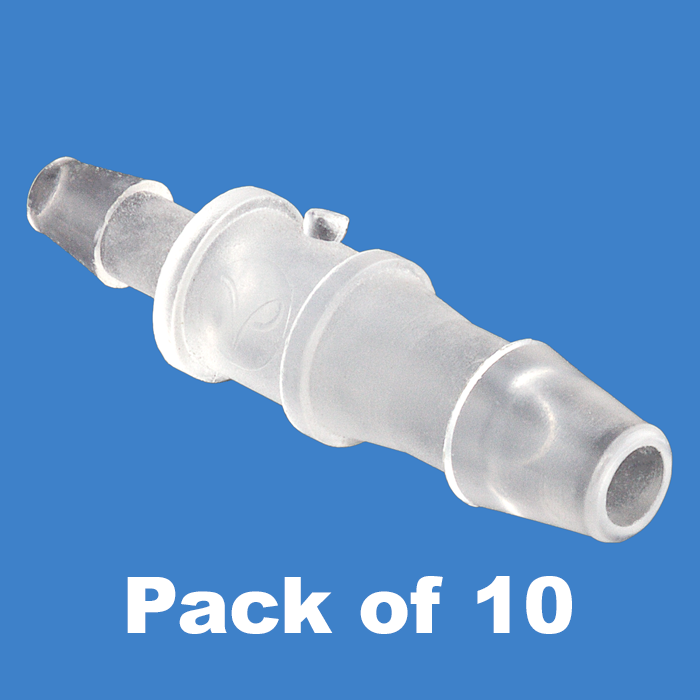

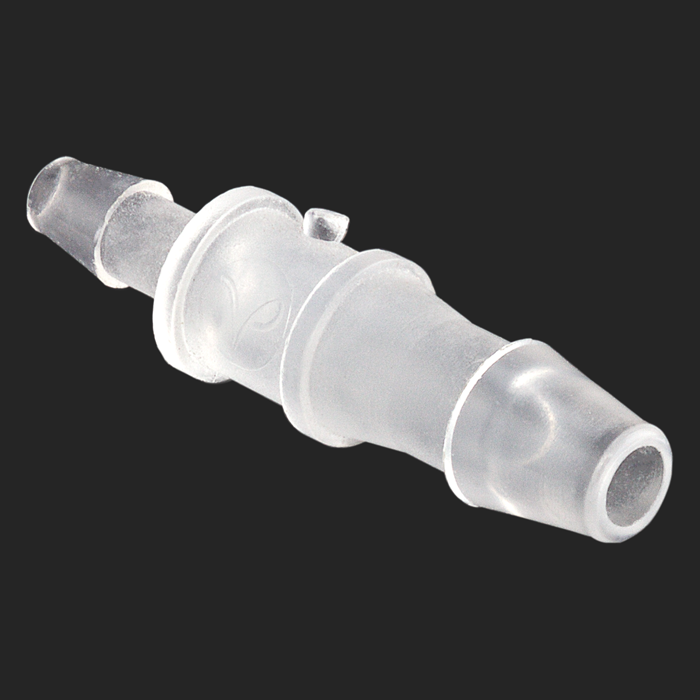

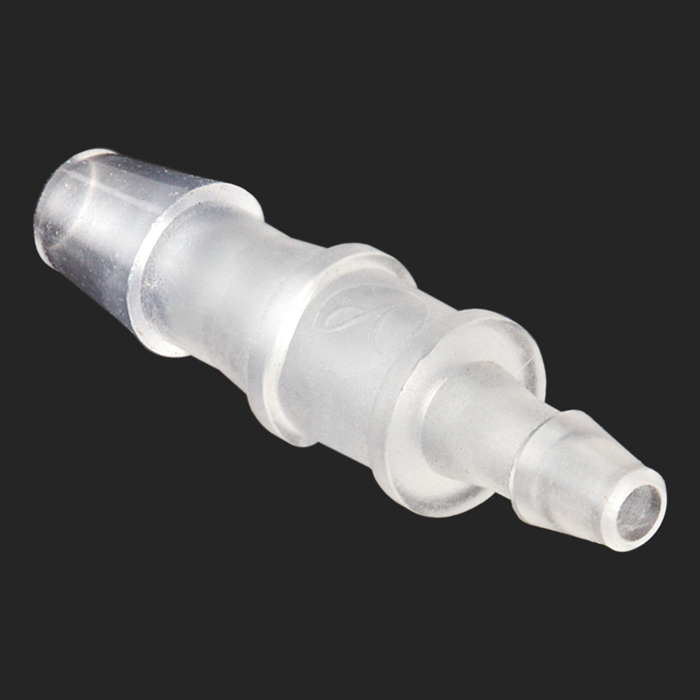

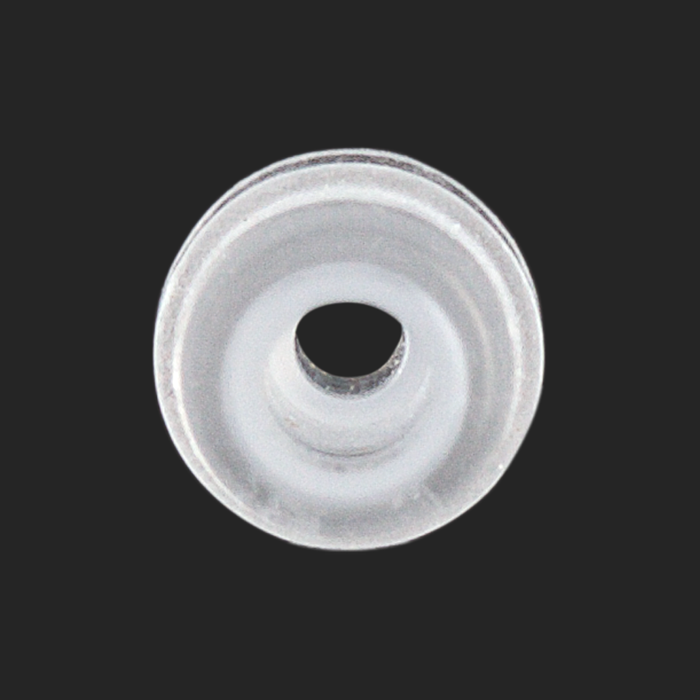

Adapter, for use with low pressure. Barbed connection for 3/32 inch tubing to 1/16 inch tubing. Polypropylene. ARE-Applied Research brand. 10/PK.
Additional Info:
Low‑pressure polypropylene adapters are designed for laboratory and analytical fluidic systems requiring dependable tubing size transitions between different internal diameter tubing configurations. These fittings are suitable for solvent transfer, waste lines, and general low‑pressure fluid handling applications used in HPLC laboratories and related analytical systems.
The 47452‑08‑010 (10/Pack) adapters contain hose barb fittings on both ends for secure connection between 3/32" (2.4 mm) ID tubing and 1/16" (1.6 mm) ID tubing. Tubing is secured by sliding it over the corresponding barbed ends to help maintain dependable tubing retention during low‑pressure fluid transfer operations.
Manufactured from chemically resistant polypropylene material, these adapters are suitable for a broad range of laboratory fluid handling applications where durable, lightweight polymer fittings are preferred.
These adapters are especially useful when connecting two different tubing ID sizes within the same laboratory fluid handling system.
Key Benefits
Connects 3/32" ID tubing to 1/16" ID tubing
Dual hose barb connection design
Chemically resistant polypropylene construction
Suitable for low‑pressure laboratory fluidics
Secure tubing retention design
Lightweight polymer fitting construction
Ideal for tubing size transition applications
10/Pack configuration for laboratory replacement needs
Specifications
Product Type: Barbed tubing adapter
Material: Polypropylene
Tubing Connection 1: 3/32" (2.4 mm) ID tubing
Tubing Connection 2: 1/16" (1.6 mm) ID tubing
Connection Style: Dual hose barb fittings
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Pack Size: 10
Applications
Low‑pressure HPLC systems
Laboratory solvent transfer
Fluid waste line connections
General laboratory tubing integration
Analytical fluid handling systems
Tubing size transition applications
Usage Notes
Designed for low‑pressure applications
Tubing secures by sliding over barbed fittings
Compatible with 3/32" and 1/16" ID tubing
Suitable for laboratory fluid transfer systems
Lightweight and chemically resistant construction
Not intended for UHPLC ultra‑high‑pressure applications
