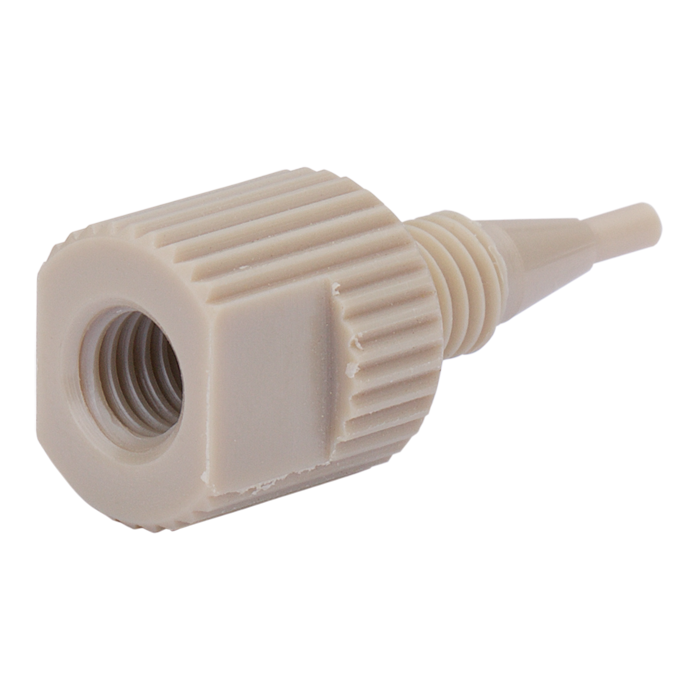

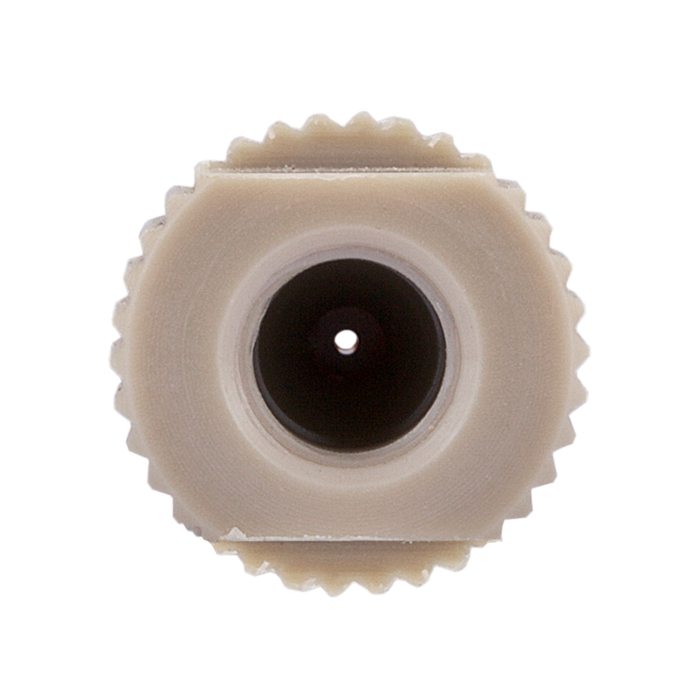

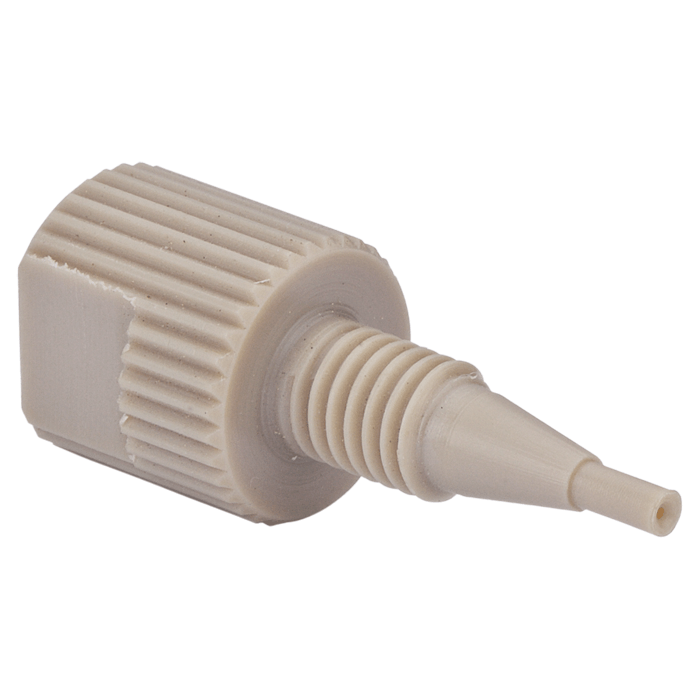

Adapter, for use with low to medium pressure HPLC. Waters female to Waters male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. 1 EA.
Additional Info:
Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free compatibility with Waters® style HPLC fittings. The 0.40 mm (0.016") bore size supports dependable low dispersion fluid transfer for analytical applications.
The 47451‑W‑61 adapter is especially useful when working with Waters® HPLC instruments, columns, and related fluidic components requiring Waters® style threaded connections on both ends.
One side of the adapter features a Waters® style female threaded port, while the opposite side contains a Waters® style threaded male connector for convenient integration into Waters® fluidic systems.
Manufactured from chemically resistant all‑PEEK material, this adapter provides dependable sealing performance while maintaining a metal‑free fluid path suitable for analytical laboratory environments.
The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.
Key Benefits
Waters® female to Waters® male adapter configuration
Compatible with Waters® HPLC systems and columns
Chemically resistant all‑PEEK construction
Low dispersion 0.40 mm / 0.016" bore
Suitable for low‑ to medium‑pressure HPLC systems
Knurled body for convenient installation
Flat wrench section for additional tightening control
Metal‑free fluid path construction
Single‑unit configuration for replacement or custom setups
Specifications
Product Type: Waters® thread adapter
Material: PEEK
Bore Size: 0.40 mm / 0.016"
Connection Configuration: Waters® female to Waters® male
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Pack Size: 1 each
Applications
Waters® HPLC instrument connections
Waters® column integration
Analytical fluidic system setup
Low‑dispersion laboratory fluid transfer
Waters® fitting compatibility
Laboratory tubing transitions
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with Waters® style fittings
Suitable for analytical HPLC systems
Wrench flats allow additional tightening control
Metal‑free fluid path construction
Not intended for UHPLC ultra‑high‑pressure applications
Resources & Ordering Options

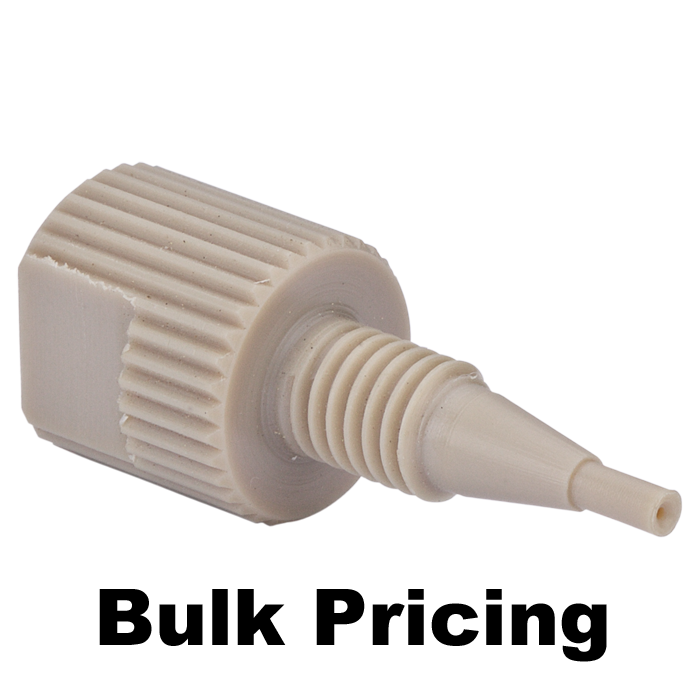

View Economical 10/Pack Waters® Female to Waters® Male PEEK Adapters
