Adapter, for use with low to medium pressure HPLC. Waters female to Waters male connection, 0.40 mm / 0.016 bore size. PEEK. ARE-Applied Research brand. 5/PK.
Additional Info:
Low‑ to medium‑pressure PEEK adapters are designed for laboratory and analytical fluidic systems requiring chemically resistant, metal‑free compatibility with Waters® style HPLC fittings. The 0.40 mm (0.016") bore size supports dependable low dispersion fluid transfer for analytical applications.
The 47451‑W‑61‑005 (5/Pack) adapters are especially useful when working with Waters® HPLC instruments, columns, and related fluidic components requiring Waters® style threaded connections on both ends.

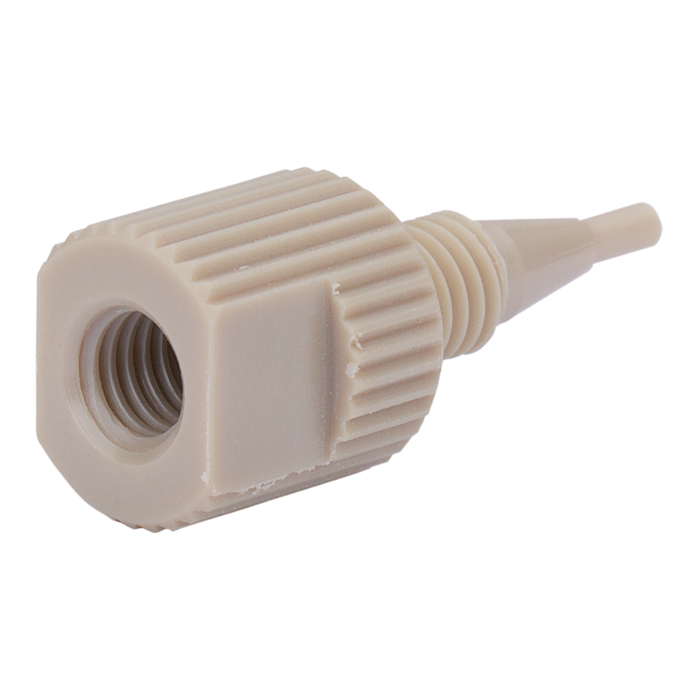

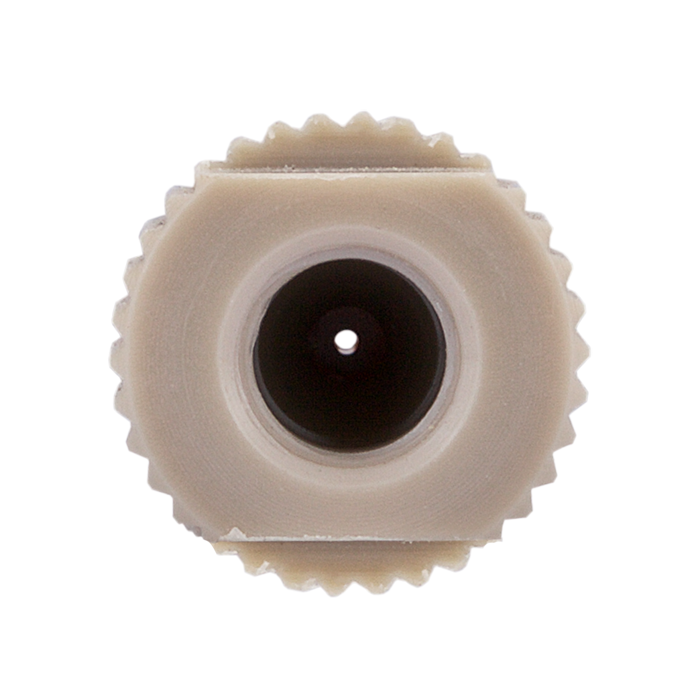

One side of each adapter features a Waters® style female threaded port, while the opposite side contains a Waters® style threaded male connector for convenient integration into Waters® fluidic systems.
Manufactured from chemically resistant all‑PEEK material, these adapters provide dependable sealing performance while maintaining a metal‑free fluid path suitable for analytical laboratory environments.
The knurled adapter body includes a flat section that allows use of a wrench for additional tightening or easier removal of tight fittings. The flat section may also be used to stabilize the adapter while tightening compatible male nuts.
Key Benefits
Waters® female to Waters® male adapter configuration
Compatible with Waters® HPLC systems and columns
Chemically resistant all‑PEEK construction
Low dispersion 0.40 mm / 0.016" bore
Suitable for low‑ to medium‑pressure HPLC systems
Knurled body for convenient installation
Flat wrench section for additional tightening control
Metal‑free fluid path construction

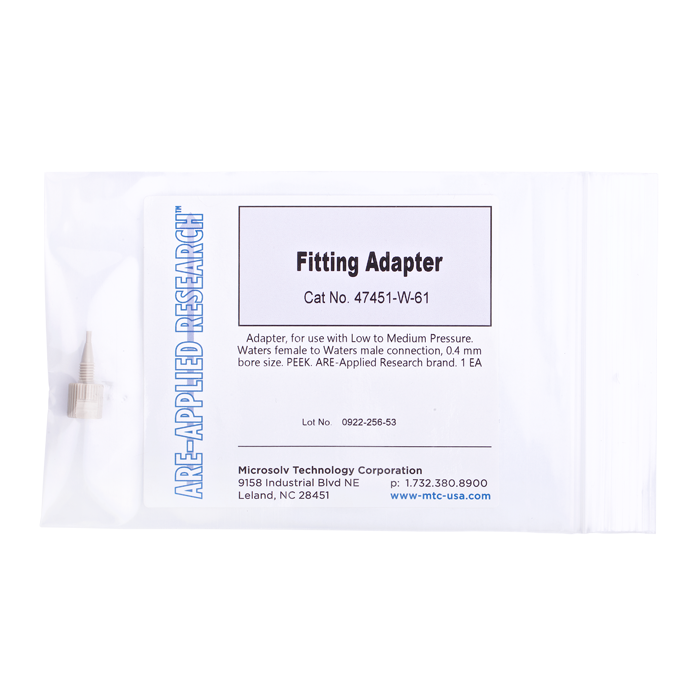

5/Pack configuration for laboratory replacement needs
Specifications
Product Type: Waters® thread adapter
Material: PEEK
Bore Size: 0.40 mm / 0.016"
Connection Configuration: Waters® female to Waters® male
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig
Pack Size: 5
Applications
Waters® HPLC instrument connections
Waters® column integration
Analytical fluidic system setup
Low‑dispersion laboratory fluid transfer
Waters® fitting compatibility
Laboratory tubing transitions
Usage Notes
Designed for low‑ to medium‑pressure applications
Compatible with Waters® style fittings
Suitable for analytical HPLC systems
Wrench flats allow additional tightening control
Metal‑free fluid path construction
Not intended for UHPLC ultra‑high‑pressure applications
