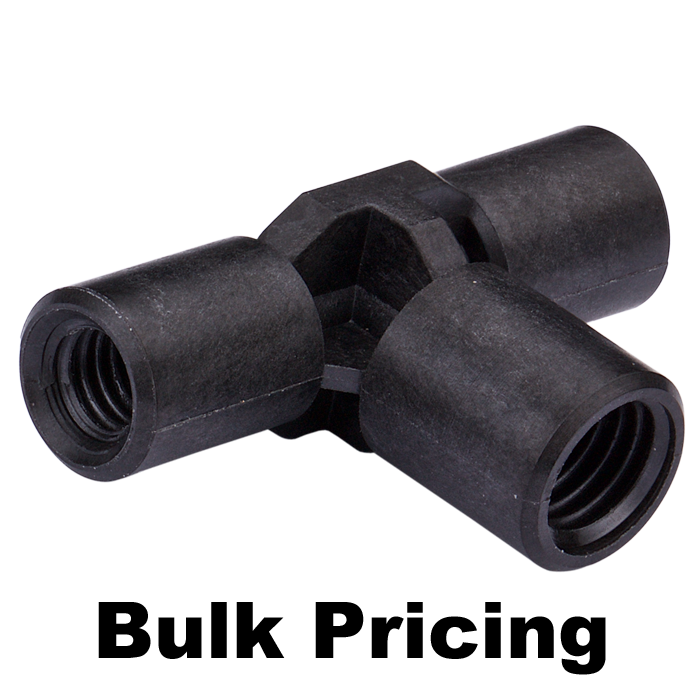

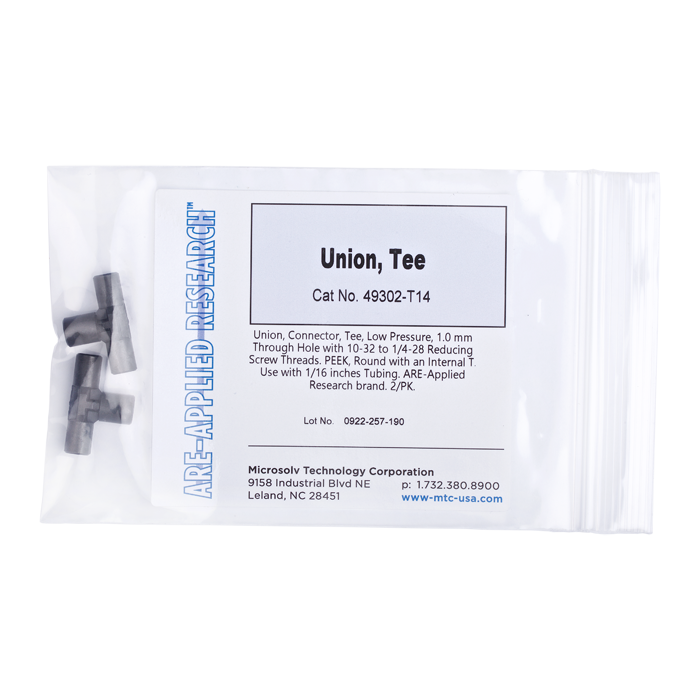

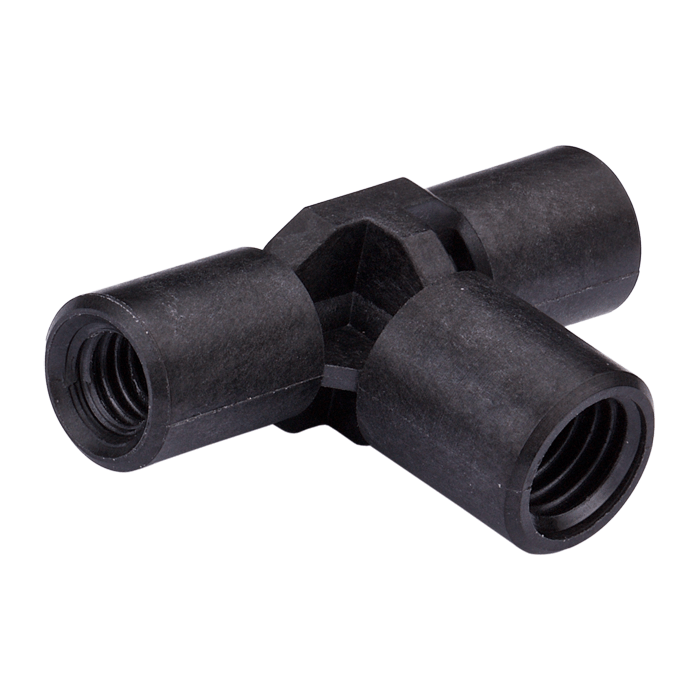

Union, Adapter, Tee, low pressure, 1.0 mm / 0.040 inch through hole with 10-32 to 1/4-28 reducing screw threads, Carbon PEEK Endure, round with an internal "T." Use with 1/16 inch tubing. ARE-Applied Research brand. 2/pack.
Additional Info:
Low‑pressure Carbon PEEK Endure Tee adapters are designed for connecting tubing in laboratory and analytical fluidic systems requiring chemically resistant, reinforced metal‑free flow path components. The 1.0 mm (0.040") through hole design and mixed 10‑32 to 1/4‑28 reducing screw threads provide dependable tubing connections for low‑pressure applications.
The 49302‑T14 Tee adapter is suitable for connecting three pieces of low‑pressure 1/16" OD tubing with 1.0 mm (0.040") ID in laboratory HPLC systems and related fluid handling applications.
This Tee fitting contains an internal T flow pattern with two internal 90° turns commonly used to split one flow stream into two directions or combine two incoming streams into one outlet flow path.
Key Benefits
Low‑pressure Tee adapter configuration
Carbon PEEK Endure construction for enhanced durability
Mixed 10‑32 to 1/4‑28 reducing thread compatibility
Internal T flow pattern for splitting or combining flow
Compatible with 1/16" tubing
Chemically resistant reinforced polymer construction
Suitable for laboratory HPLC applications
2/Pack configuration for laboratory use
Specifications
Product Type: Tee adapter union
Material: Carbon PEEK Endure
Through Hole Diameter: 1.0 mm / 0.040"
Thread Configuration: 10‑32 to 1/4‑28 reducing threads
Configuration: Internal Tee (T)
Tubing Compatibility: 1/16" OD tubing
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Pack Size: 2
Usage Notes
For low‑pressure fluidic applications
Designed for connecting three pieces of 1/16" tubing
Suitable for blending or splitting liquid flow
Requires two low‑pressure 10‑32 male nuts with matching flangeless ferrules
Requires one 1/4‑28 male nut with matching flangeless ferrule
Nuts and ferrules sold separately
Not intended for high‑pressure UHPLC applications
