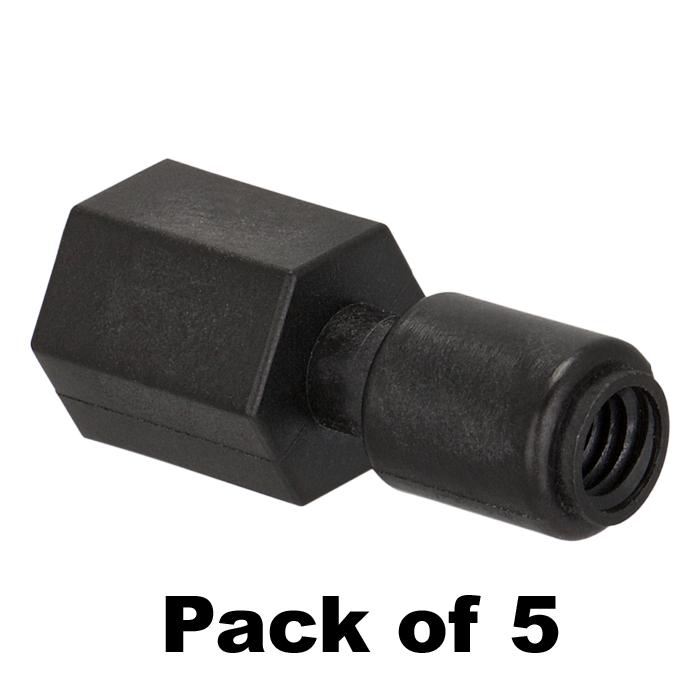

Union, Connector, low pressure, 1.0 mm / 0.040 inch through hole with 10-32 to 1/4-28 reducing screw threads. Carbon PEEK Endure. Use with 1/16 tubing. ARE-Applied Research brand. 5/PK.
Additional Info:
Low‑pressure Carbon PEEK Endure reducing unions are designed for connecting tubing in laboratory and analytical fluidic systems requiring chemically resistant, reinforced metal‑free flow path components. The 1.0 mm (0.040") through hole design provides dependable low‑pressure fluid transfer while allowing transitions between different thread standards.
The 49302‑08‑005 (5/Pack) reducing unions feature one 10‑32 threaded female port and one 1/4‑28 threaded female port, allowing convenient connection of 1/16" tubing systems using male nuts with different thread types.
Manufactured from black Carbon PEEK Endure material, these fittings provide enhanced strength, stiffness, and durability compared to standard PEEK fittings while maintaining chemical resistance for laboratory fluid handling applications.
Key Benefits
Reducing union design for mixed thread compatibility
One 10‑32 female port and one 1/4‑28 female port
Carbon PEEK Endure construction for enhanced durability
Compatible with 1/16" tubing systems
Chemically resistant reinforced polymer construction
Suitable for low‑pressure laboratory fluidics
Ideal for thread transition applications
5/Pack configuration for laboratory replacement needs
Specifications
Product Type: Reducing union connector
Material: Carbon PEEK Endure
Through Hole Diameter: 1.0 mm / 0.040"
Thread Configuration: 10‑32 female to 1/4‑28 female
Tubing Compatibility: 1/16" tubing
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Pack Size: 5
Usage Notes
For low‑pressure fluidic applications
Designed for connecting different thread standards
Compatible with male nuts using 10‑32 and 1/4‑28 threads
Suitable for laboratory HPLC systems
Compatible with 1/16" tubing connections
Not intended for high‑pressure UHPLC applications
