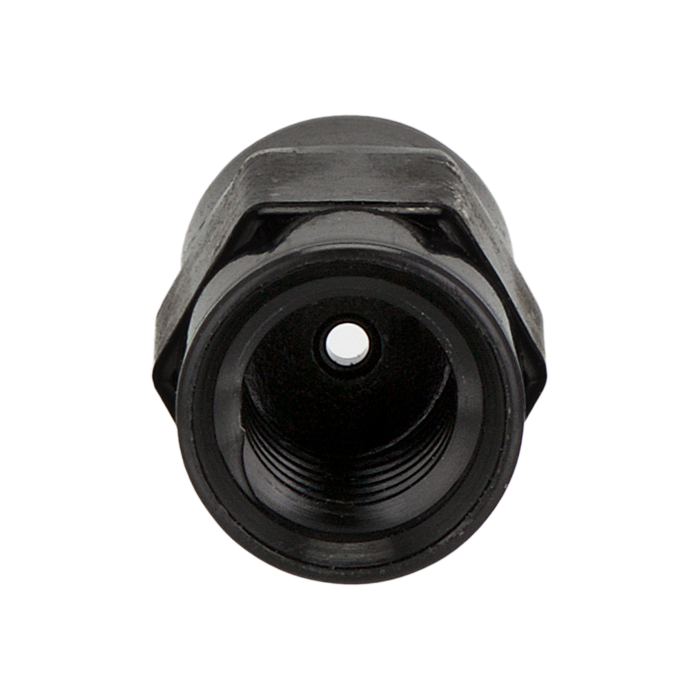

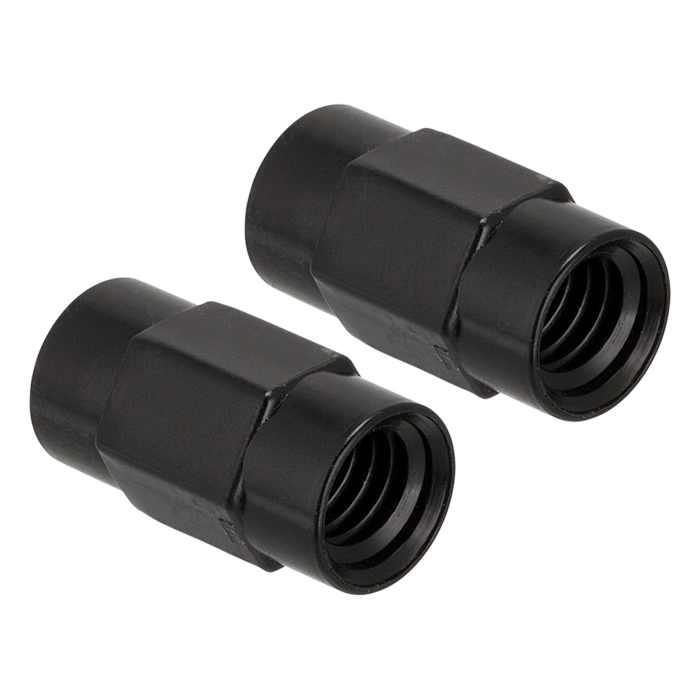

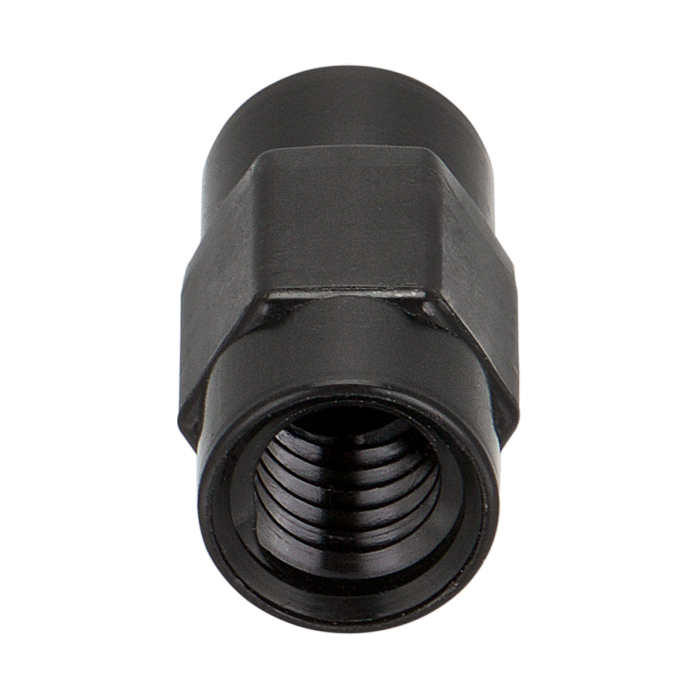

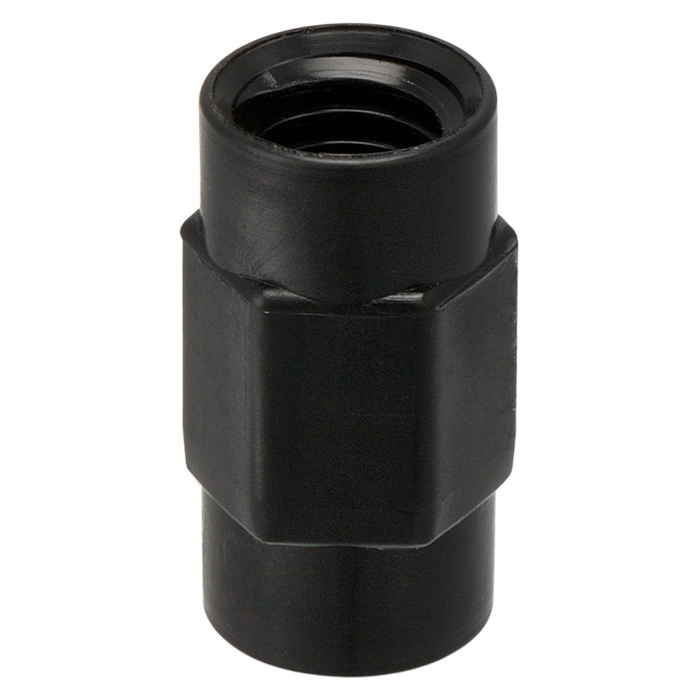

Union, Connector, low pressure, 1.0 mm / 0.040 inch through hole with M6 screw threads. Black POM Endure. Use with 1/16 inch tubing. ARE-Applied Research brand. 10/PK.

Additional Info:

This carbon-PEEK, Endure™ brand union allows you to connect, a low pressure flow of liquid within low pressure, 1/16th inch OD tubing.

  • Maximum Temperature: 100°C

  • Maximum Pressure: 1,000 psig.

  • Click HERE for bulk pricing.

This PEEK straight line connector is produced to connect with low pressure tubing and has two European M6 threaded female fittings. The flat areas on the union can be used with a wrench to hold the union in place while the nuts are being tightened or loosened.

NOTE: Two M6 threaded, male nuts plus two matching, flangeless ferrules are required to connect tubing with this union. Nuts and ferrules are sold separately.
