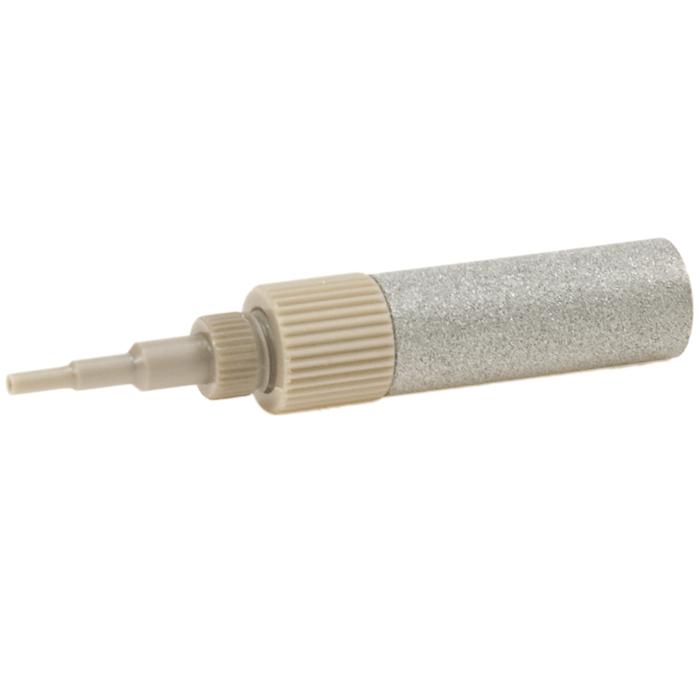

Mobile Phase Filter, 10 um, Stainless Steel, 0.375 inch OD, 1 inch long, tripod connector. EPP-Porous Products brand. 2/PK.
Additional Info:
The 48220-06-002 Mobile Phase Filters are high-capacity 316L stainless steel solvent inlet filters designed for efficient particulate removal and reliable solvent flow in HPLC systems. Engineered for high throughput and durability, they help protect pumps, columns, and instrumentation from contamination.
The 10 µm pore size removes larger undissolved particles while generating lower backpressure than finer filters (2 µm or 5 µm), improving solvent uptake and vacuum efficiency.
Each filter is passivated with a 30% nitric acid treatment, enhancing corrosion resistance and ensuring long-term compatibility with a wide range of mobile phases.
The integrated all‑PEEK tripod connector (3-step molded design) allows direct tubing connection without ferrules or nuts, supporting:
1/16 inch (1.6 mm) tubing
1/8 inch (3.2 mm) tubing
Designed for direct placement in solvent reservoirs, these filters are intended for inlet (vacuum) filtration only and are not recommended for sparging.
Key Features
10 µm High-Capacity Filtration
Removes larger undissolved particles
Protects pumps and columns
Low Backpressure Performance
Less restriction than 2 µm and 5 µm filters
Improves solvent flow and vacuum efficiency
316L Stainless Steel Construction
Chemically resistant and durable
Passivated for corrosion protection
Universal Tripod Connector (All‑PEEK)
Fits 1/16 inch and 1/8 inch tubing
No ferrules or nuts required
High Throughput Design
Supports consistent solvent delivery
Ideal for routine and high-demand applications
Reservoir-Ready Design
Place directly into mobile phase bottles
Quick, tool-free installation
Application-Specific Use
Designed for inlet (vacuum) filtration
⚠️ Not suitable for sparging
Available Product & Replacement Options
View mobile phase filters for sparging with 1/16 inch or 1/8 inch male nut and ferrule connectors
Explore economical 5-pack stainless steel 10 µm tripod mobile phase filters
Specifications
Type: Mobile Phase Inlet / Solvent Pickup Filter
Material: 316L Stainless Steel (passivated), All‑PEEK connector
Pore Size: 10 µm
Dimensions: 0.375 inch OD x 1 inch length
Connection Type: Tripod (fits 1/16 inch and 1/8 inch tubing)
Compatibility: HPLC solvent reservoirs and pump inlet systems
Application: Inlet (vacuum) filtration only
Brand: EPP‑Porous Products
Pack Size: 2/PK
Typical Applications
HPLC mobile phase filtration, removal of larger particulates, pump protection, solvent preparation, and workflows requiring durable stainless steel inlet filters with universal tubing compatibility.
