Catalog Number - 58835-20-005

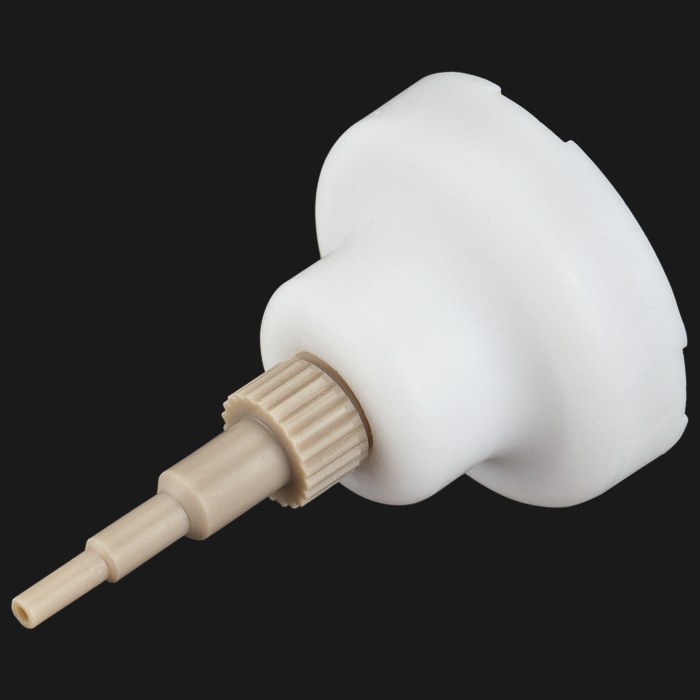

58835-20-005 ARE‑Applied Research Mobile Phase Inlet Filters are high‑capacity, economy solvent filtration devices engineered for HPLC, UHPLC, and LC‑MS mobile phase delivery systems, delivering maximum solvent recovery, ultra‑low flow restriction, and reliable protection of instrument components.

These filters feature a “Last Drop” flat bottom‑draw design, allowing nearly complete withdrawal of mobile phase from reservoir bottles—an essential advantage for high‑throughput workflows, long analytical sequences, and bulk solvent applications.

Each unit incorporates a 10 µm stainless steel filter element combined with PEEK / PTFE structural components, providing exceptional durability, chemical resistance, and long service life in demanding laboratory environments.

✅ Explore smaller pack sizes for flexible purchasing and lab inventory management

“Last Drop” Design – Maximum Solvent Utilization

• Wide 22 mm flat filter geometry

• Designed to sit at the lowest point in the bottle

• Draws solvent to near‑empty conditions

• Minimizes waste and prevents pump starvation

✅ Ideal for bulk solvent use, long runs, and high‑throughput labs

✅ Improves workflow efficiency and solvent cost control

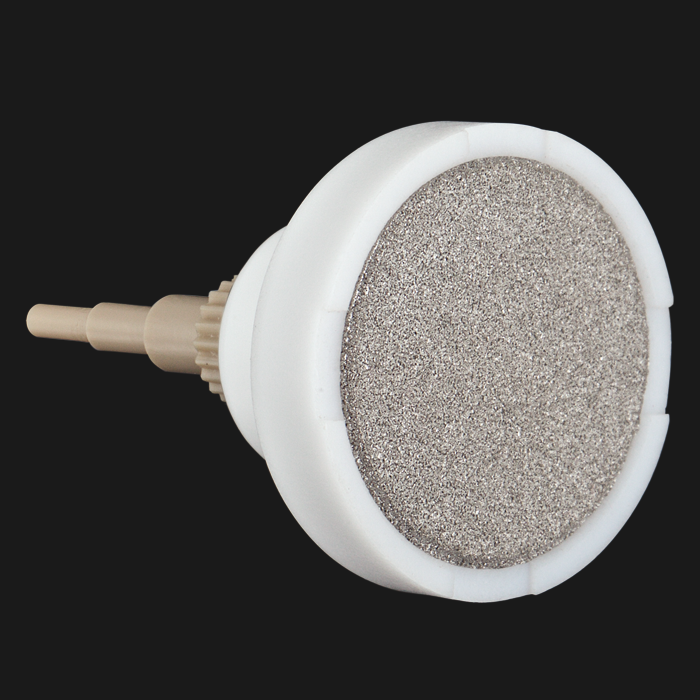

10 µm Stainless Steel Element – Ultra‑High Flow Capacity

• Filters particulates ≥ 10 µm

• Protects:

  • Pump seals and check valves

  • Injection systems

  • HPLC columns and detectors

• Stainless steel media provides:

  • Maximum flow capacity

  • Minimal restriction / lowest pressure impact

  • Exceptional mechanical strength and longevity

✅ Ideal for high‑flow systems and pre‑filtered solvents

PEEK / PTFE Construction – Durable & Chemically Compatible

• Structural materials:

  • PEEK (polyether ether ketone)

  • PTFE (inert fluoropolymer)

• Provides:

  • Chemical resistance to common HPLC solvents

  • Robust, long‑term performance

  • Stable operation in routine and high‑demand applications

✅ Suitable for analytical, QC, and production laboratories

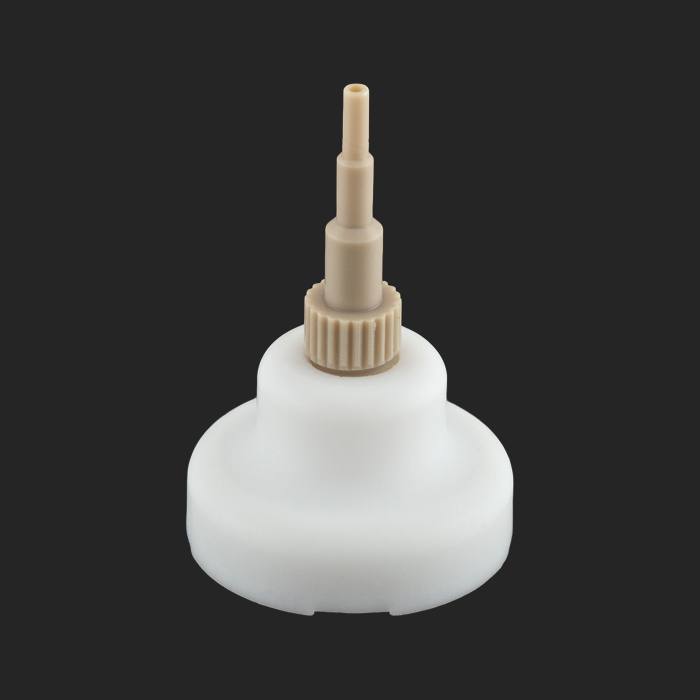

Tripod Connector – Universal, Tool‑Free Integration

• All‑PEEK tripod tubing connector

• Accepts:

  • 1/16" OD tubing

  • 1/8" OD tubing

• No ferrules or nuts required

• Push‑fit tubing installation

✅ Enables fast setup and flexible system configuration

Economy Configuration – Cost‑Effective Performance

• Simplified design with integrated connector

• Lower cost compared to premium inlet filter designs

• Maintains:

  • High filtration capacity

  • Maximum solvent recovery

  • Reliable system protection

✅ Ideal for budget‑conscious labs and high‑volume workflows

Performance Advantages – High‑Flow Chromatography Systems

Compared to finer pore inlet filters:

• Lowest flow restriction for maximum throughput

• Reduced clogging risk

• Improved solvent delivery stability at high flow rates

• Extended maintenance intervals

✅ Aligns with best practices for high‑efficiency chromatography systems

System Compatibility & Use

Designed for use with:

• HPLC / UHPLC mobile phase systems

• LC‑MS solvent delivery systems

• Low‑pressure tubing configurations (1/16" and 1/8")

• Standard mobile phase reservoir bottles

✅ Installs directly into mobile phase bottles for inline filtration

Typical Applications

• High‑flow HPLC mobile phase filtration

• Bulk solvent preparation and delivery

• LC‑MS solvent protection

• Pre‑filtered solvent workflows

• Routine analytical and QC laboratories

• Long‑duration and unattended runs

• Integrated into original equipment manufacturer (OEM) product designs

Important Usage Notes

• Designed for low‑pressure systems only

• Ensure tubing is fully seated on tripod connector

• Inspect filter element regularly for buildup

• Replace when flow performance declines
