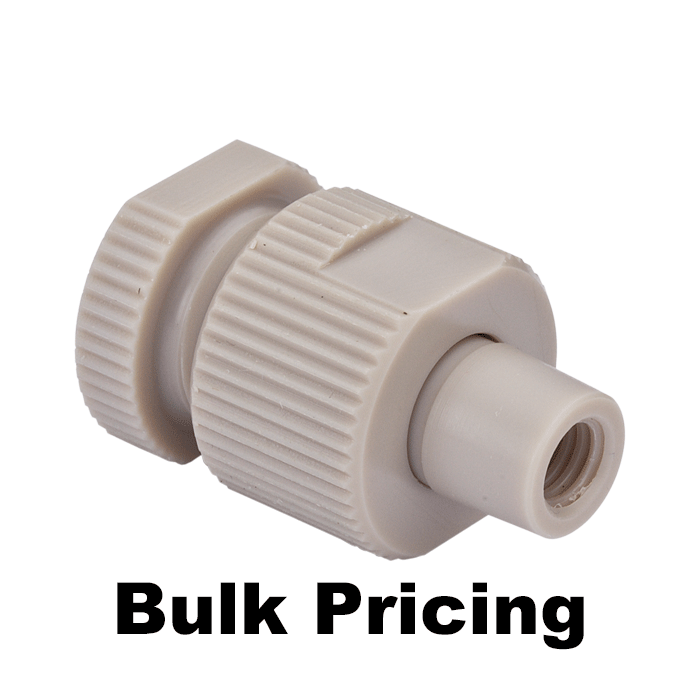

Inline Filter, for HPLC, female connections replaceable filters and All-PEEK body. Includes 25 disposable 0.5 um SS filters. ARE-Applied Research brand. Bulk Price.
Additional Info:
Compatible with typical flow rate analytical columns up to 4,500 psi and 5 ml/minute. Also used as a union to connect tubing, but with a filter. Not recommended for use with UHPLC pressure ranges.
Economical way to protect your columns and instruments.
Re-usable filter holder.
Easy to install after the pump, before the injector.
Easy to replace the filter.
The universal connection (fits all standard HPLC threads and pilot lengths) can be installed with a wrench or hand tightened. When these filters are in use, and pressure starts to rise, simply disconnect (after pressure in the column is at atmospheric), dispose of and replace with a new filter.
A pack of 25 each, 0.188 inch, 0.5 um stainless steel, PEEK encased filters are supplied but other PEEK encased filters with the same or different porosity, that are 1/4 inch OD and 1/16th inch thick should work with this holder.
Click HERE for replacement filter ordering information. Click HERE for economical pack of 10 PEEK holders and 25 SS filters.
