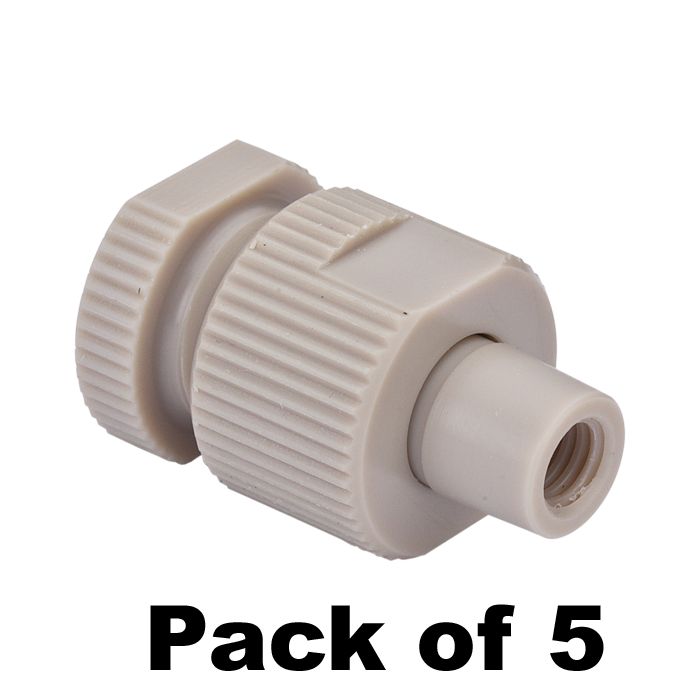

Inline Filter, for HPLC, female connections replaceable filters and All-PEEK body. Includes 25 disposable 0.5 um SS filters. ARE-Applied Research brand. 5/PK.

Additional Info:

Compatible with typical flow rate analytical columns up to 4,500 psi and 5 ml/minute.  Also used as a union to connect tubing, but with a filter. Not recommended for use with UHPLC pressure ranges.

  • Economical way to protect your columns and instruments.

  • Re-usable filter holder.

  • Easy to install after the pump, before the injector.

  • Easy to replace the filter.

The universal connection (fits all standard HPLC threads and pilot lengths) can be installed with a wrench or hand tightened. When these filters are in use, and pressure starts to rise, simply disconnect (after pressure in the column is at atmospheric), dispose of and replace with a new filter.

A pack of 25 each, 0.188 inch, 0.5 um stainless steel, PEEK encased filters are supplied but other PEEK encased filters with the same or different porosity, that are 1/4 inch OD and 1/16th inch thick should work with this holder.

Click HERE for replacement filter ordering information. Click HERE for economical pack of 10 PEEK holders and 25 SS filters.
