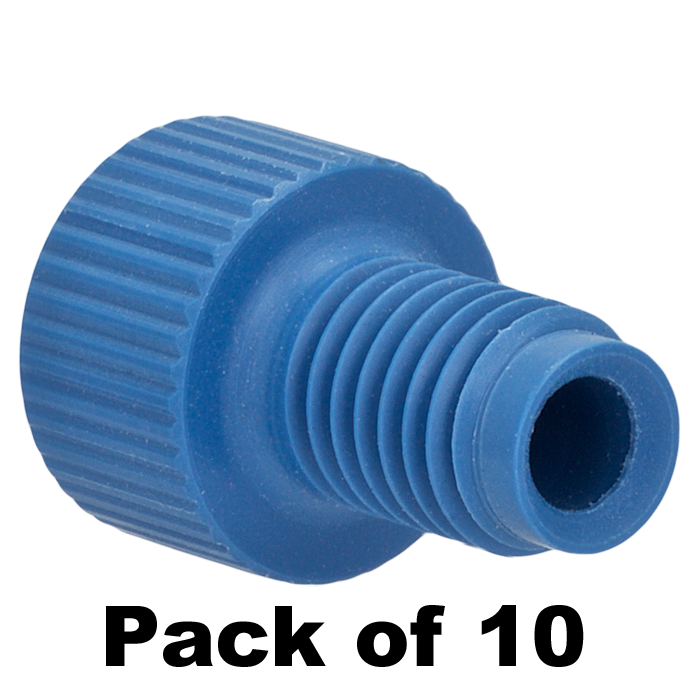

Tubing Connector Nuts, low pressure, 1/8 inch, PEEK, Blue with 1/4-28 screw threads, for use with flange free, polymeric tubing. ARE-Applied Research brand. 10/PK.
Additional Info:
The 45308‑B‑010 PEEK Tubing Connector Nuts (10/Pack) are low-pressure fluidic fittings designed for connecting 1/8 inch OD flangeless polymeric tubing in HPLC systems and other fluid handling applications. These finger-tightened connector nuts provide a reliable, leak‑free connection without requiring tubing flanging.
Manufactured from blue PEEK (polyether ether ketone), these fittings offer superior chemical resistance and mechanical strength, making them ideal for applications requiring enhanced durability and broader solvent compatibility compared to standard thermoplastics.
✅ Key Benefits
Flangeless Connection Design Eliminates the need for tubing flanging
Finger-Tight Installation Quick, tool-free connections
Standard 1/4‑28 Thread Compatibility Fits common low-pressure HPLC ports
High-Performance PEEK Construction Superior chemical resistance and durability vs Delrin
Color-Coded Identification (Blue) Supports system organization and flow path identification
Optimized for 1/8" Tubing Systems Suitable for higher flow rate applications
10/Pack Configuration Ideal for routine use and ongoing system maintenance
Performance & Design
Material: Blue PEEK
Excellent chemical resistance
High mechanical strength
Broad solvent compatibility
Enhanced durability in demanding environments
Connection Type:
1/4‑28 UNF threaded nut
Designed for flangeless tubing systems
Engineered for:
Reliable low-pressure sealing
Extended service life
Consistent performance under chemical exposure
System Role & Integration
Connects 1/8" OD polymeric tubing to HPLC system ports
Requires separate ferrules for proper sealing
Used in:
Low-pressure HPLC systems
Solvent transfer and delivery lines
Applications requiring higher chemical resistance
⚠️ Usage Notes
Tubing must NOT be flanged (flangeless only)
Ferrules are required for proper sealing
Compatible with standard 1/4‑28 UNF ports
Designed for low-pressure applications only
Pressure Limit: ~500 psi (34.5 bar)
Maximum Temperature: 100°C
Specifications
Product Type: Tubing Connector Nuts
Material: PEEK
Color: Blue
Tubing Size: 1/8 inch OD
Thread Type: 1/4‑28 UNF
Connection Type: Flangeless
Pressure Limit: ~500 psi (34.5 bar)
Max Temperature: 100°C
System Type: Low pressure
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
