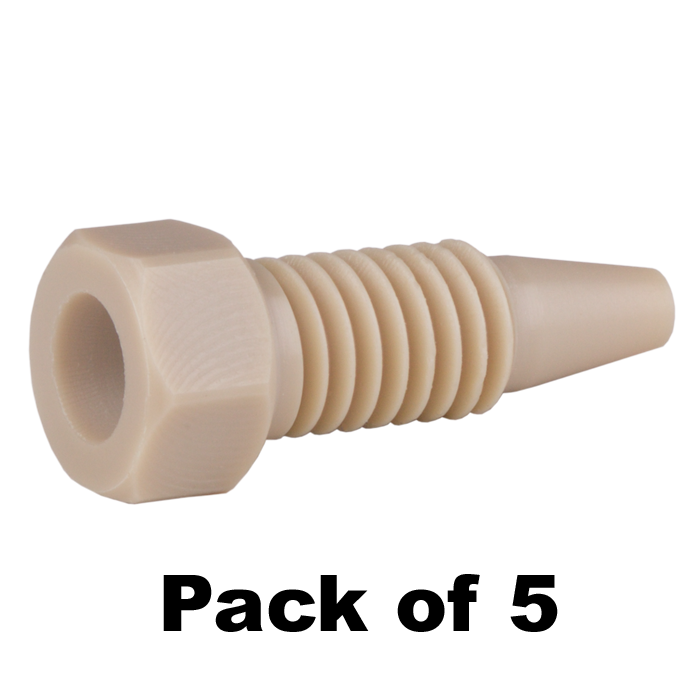

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, small hex head, short length and 10-32 screw threads. Wrench tighten, ARE-Applied Research brand. 5/PK.
Additional Info:
PEEK tubing connector fittings for 1/16" OD tubing provide reliable connections in high-pressure HPLC systems. Designed for 10‑32 ports, these fittings are compatible with PEEK or stainless steel tubing.
The 47320‑27‑005 (5/Pack) features a small hex head and short length, allowing wrench tightening in tight instrument spaces where clearance is limited.
Key Benefits
Small hex head for wrench tightening
Short length for tight-space installations
One-piece design for consistent sealing
Compatible with PEEK or stainless tubing
5/Pack for replacement needs
Specifications
Material: Natural PEEK
Tubing Size: 1/16" OD
Thread: 10‑32
Head Type: 7 mm hex
Length: 17 mm
Thread Length: 13 mm
Pack Size: 5
Usage Notes
For high-pressure HPLC applications
Not recommended for UHPLC
