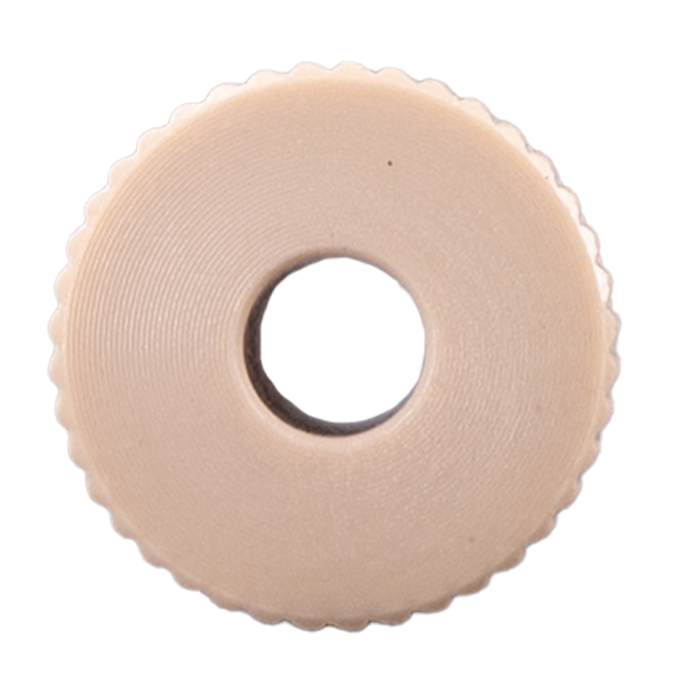

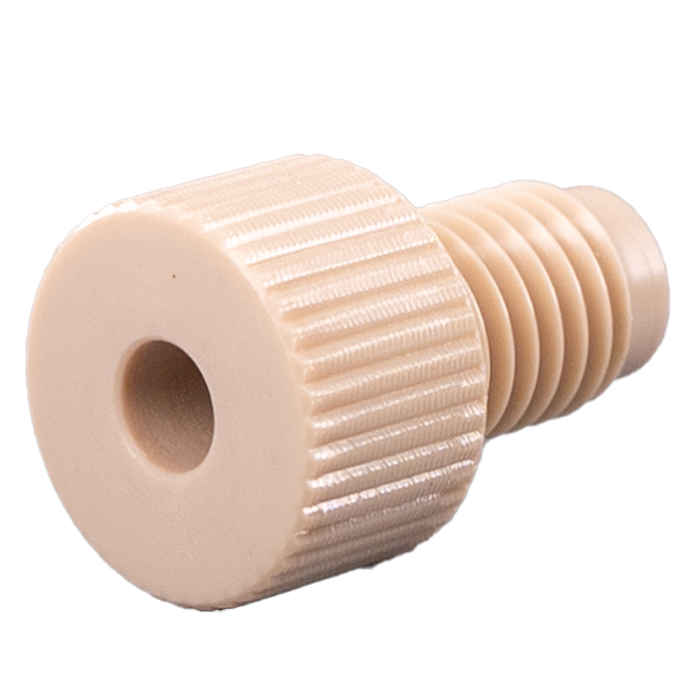

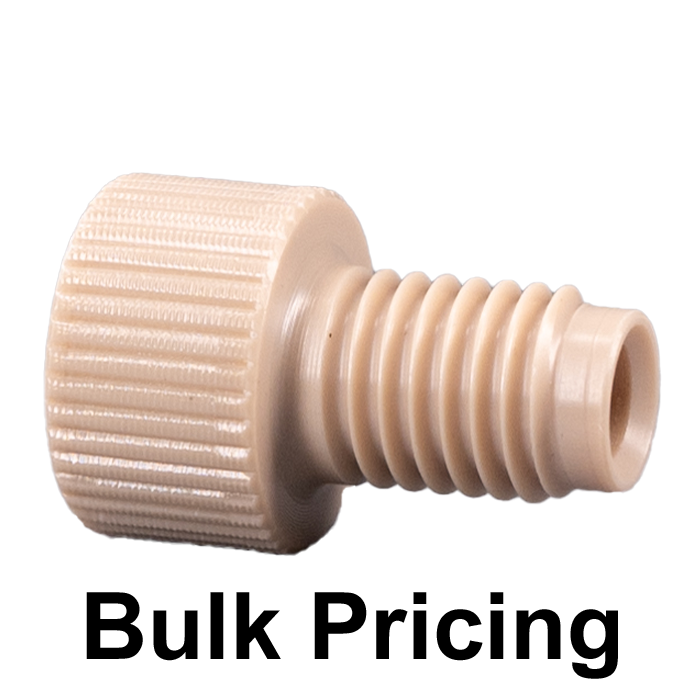

CUSTOM ITEM: Tubing Connector Nuts, low pressure, two pieces, 1/8 inch, PEEK, Natural, large head, short length and 1/4-28 screw threads. Use with flange free fittings and ferrule. Finger tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
The 58819‑01‑1 Two‑Piece PEEK Tubing Connector Nut is a low-pressure flangeless fitting designed for connecting 1/8 inch OD polymeric tubing in HPLC systems and other fluid handling applications. Featuring a two-piece construction, this fitting provides improved grip, alignment, and repeatability during installation.
This design includes a large head for better handling and a short overall length, making it especially useful in tight instrument spaces where clearance is limited. The finger-tight configuration enables quick, tool-free connections while maintaining reliable sealing performance when used with compatible ferrules.
Manufactured from natural (unpigmented) PEEK, this fitting offers enhanced chemical resistance, mechanical strength, and low extractables, making it suitable for sensitive analytical applications.
✅ Key Benefits
Two‑Piece Connector Design Improves alignment, compression, and repeatability
Large Head for Easy Handling Enhances grip for finger-tight installation
Short Length Profile Ideal for confined or space-restricted instrument areas
Flangeless Connection Design Eliminates need for tubing flanging
Finger-Tight Operation Enables fast, tool-free installation
Natural PEEK Construction Provides high chemical resistance and minimal extractables
Optimized for 1/8" Tubing Systems Suitable for higher flow, low-pressure applications
Performance & Design
Material: Natural PEEK (Polyether Ether Ketone)
Excellent chemical resistance
High mechanical strength
Broad solvent compatibility
Free of pigments and dyes
Design Features:
Two-piece construction
Large head for improved grip
Short length geometry for compact installations
Connection Type:
1/4‑28 UNF threaded nut
Designed for flangeless tubing systems
Engineered for:
Improved handling and repeatability
Reliable low-pressure sealing
Use in space-constrained system layouts
System Role & Integration
Connects 1/8" OD polymeric tubing to system ports
Requires separate ferrules for proper sealing
Used in:
Low-pressure HPLC systems
Tight instrument configurations
Applications requiring improved ergonomics and reliability
⚠️ Usage Notes
Tubing must NOT be flanged (flangeless only)
Ferrules are required for proper sealing
Compatible with 1/4‑28 UNF ports
Designed for low-pressure applications only
Pressure Limit: ~500 psi (34.5 bar)
Specifications
Product Type: Tubing Connector Nut (Two‑Piece)
Material: PEEK (Natural)
Color: Natural (Unpigmented)
Tubing Size: 1/8 inch OD
Thread Type: 1/4‑28 UNF
Connection Type: Flangeless
Design: Large head, short length
Pressure Limit: ~500 psi (34.5 bar)
System Type: Low pressure
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
