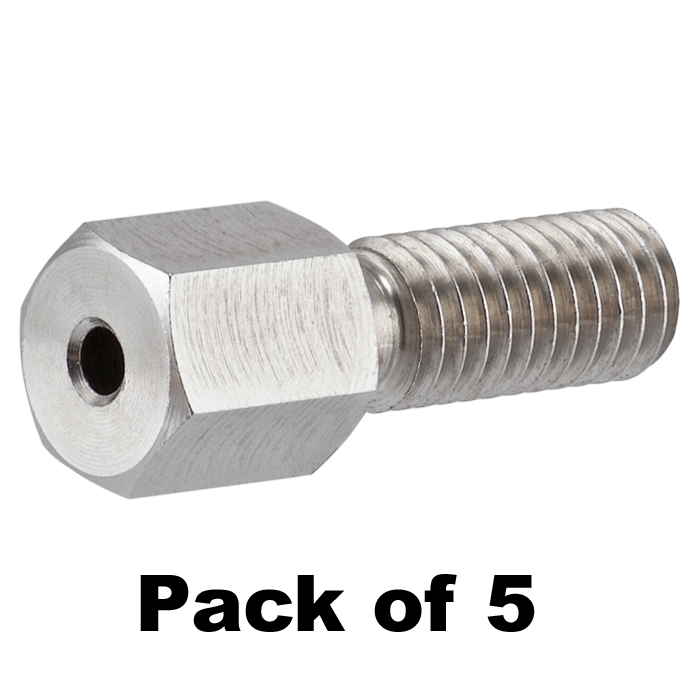

Tubing Connector Male Nuts, high pressure, 1/16-inch, Stainless Steel, 19 mm total length with a hex head and 10-32 screw threads. Ferrules sold separately. ARE-Applied Research brand. 5/PK.
Additional Info:
Stainless steel tubing connector nuts for 1/16" OD tubing provide secure connections in high-pressure HPLC systems. Designed for 10‑32 ports, these fittings are used with stainless steel tubing and require compatible ferrules for proper sealing.
The 49590‑03‑005 (5/Pack) features an extended 19 mm length, allowing proper engagement in deeper ports such as injectors and valves.
Key Benefits
316L stainless steel for strength and corrosion resistance
Hex head for secure wrench tightening
Long length for deep port connections
Designed for permanent, high-pressure connections
5/Pack for small quantity needs
Specifications
Material: 316L Stainless Steel
Tubing Size: 1/16" OD
Thread: 10‑32
Head Type: Hex
Length: 19 mm
Connection Type: High pressure
Pack Size: 5
Usage Notes
For high-pressure HPLC applications
Requires single cone stainless steel ferrules
