Catalog Number - 45208-F-ETFE-1

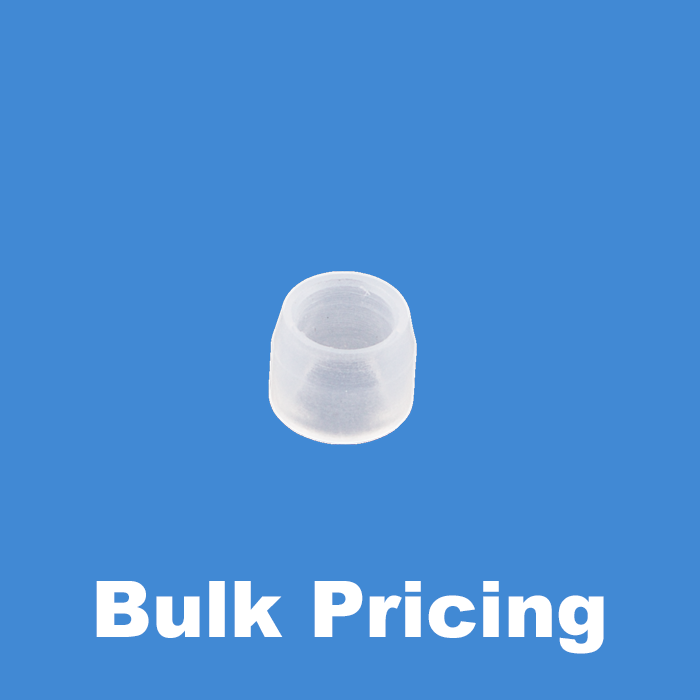

The 45208‑F‑ETFE‑1 Single‑Cone Ferrule is designed for use with flangeless tubing connector nuts to create secure, leak‑free connections in low-pressure HPLC systems and fluidic applications. This ferrule is specifically sized for 1/8 inch OD polymeric tubing and is required for proper sealing in flangeless systems.

This single-cone design works by swaging (compressing) onto the tubing at a single point, providing a strong mechanical grip that prevents tubing slippage while forming a reliable seal.

Manufactured from ETFE (ethylene tetrafluoroethylene), this ferrule offers an ideal balance of mechanical strength and chemical resistance, making it well-suited for demanding analytical applications.

✅ Key Benefits

• Single‑Cone Sealing Design Provides strong mechanical grip and reliable sealing

• Essential for Flangeless Connections Required for use with tubing connector nuts

• Optimized for 1/8" Tubing Designed specifically for flangeless polymeric tubing systems

• High Mechanical Strength (ETFE) More rigid than PTFE for stronger compression and sealing

• Excellent Chemical Resistance Compatible with a wide range of HPLC solvents

• Single Unit / Bulk Custom Item Suitable for special orders and flexible quantities

Performance & Design

• Material: ETFE (Ethylene Tetrafluoroethylene)

  • High mechanical strength vs PTFE

  • Excellent chemical resistance

  • Broad temperature stability

  • Durable under repeated use

• Design Features:

  • Single-cone compression geometry

  • Strong tubing grip via swaging mechanism

Engineered for:

• Leak-free sealing performance

• Secure tubing retention

• Consistent results in flangeless systems

System Role & Integration

• Used with:

  • 1/8" flangeless tubing connector nuts (1/4‑28)

• Functions to:

  • Compress tubing

  • Create a tight mechanical seal

  • Prevent tubing movement or blow-off

Suitable for:

• Low-pressure HPLC systems

• Fluid transfer and sample handling

• General laboratory fluidics

⚠️ Usage Notes

• Tubing must NOT be flanged (flangeless only)

• Required component for proper sealing

• Compatible with:

  • 1/8" OD tubing

  • 1/4‑28 flangeless connector nuts

• Pressure Capability: Dependent on tubing; up to ~290 psi (20 bar)

Specifications

• Product Type: Ferrule (Single‑Cone)

• Material: ETFE

• Tubing Size Compatibility: 1/8 inch OD

• Connection Type: Flangeless

• System Type: Low pressure

• Design: Single-cone

• Pressure Limit: Up to ~290 psi (20 bar, tubing dependent)

• Brand: ARE‑Applied Research™

• Packaging: Bulk (Custom Item)

Custom Item Pricing Information

• Please contact Customer Service for formal quotation, lead time, and ordering assistance.
