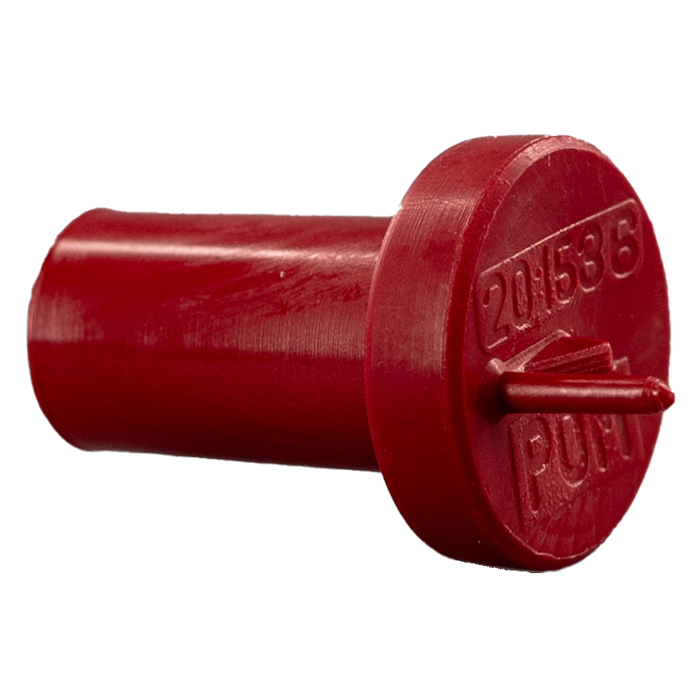

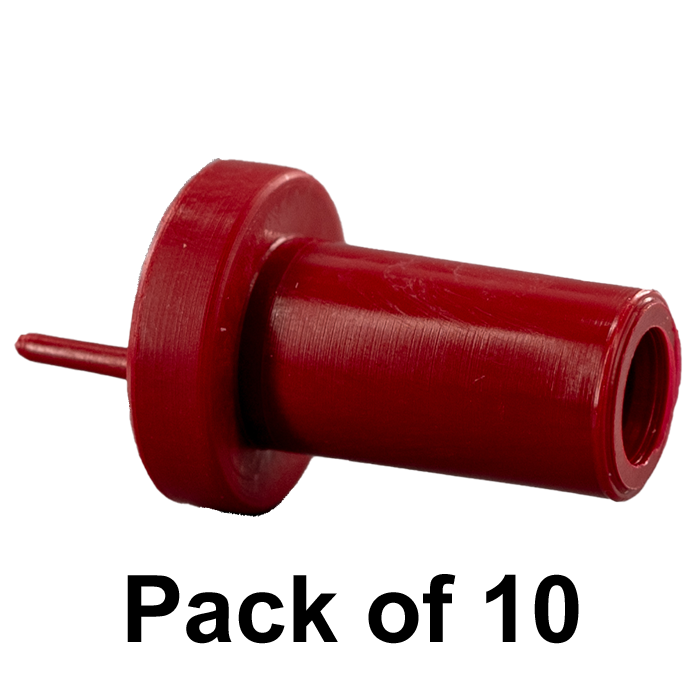

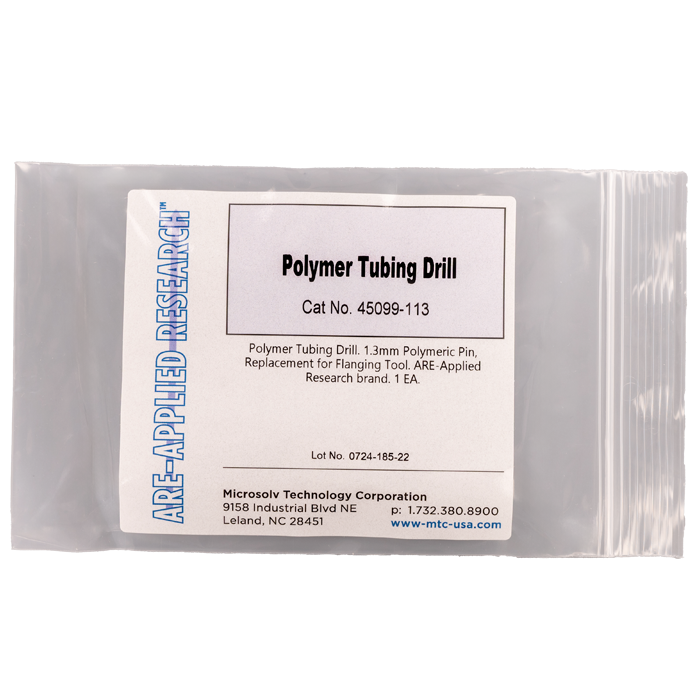

Polymer Tubing Drill. 1.3mm Polymeric Pin, Replacement for Flanging Tool. ARE-Applied Research brand. 10/PK.
Additional Info:
The 45099‑113‑010 Polymer Tubing Flanging Drills (10‑Pack) are precision replacement components designed for use with the MICROSOLV Flanging Tool, enabling controlled and repeatable cold flanging of polymer (plastic) tubing tips, especially for larger internal diameter (ID) tubing.
Each drill features a 1.3 mm polymeric pin, providing maximum internal support within the polymer drill range during flaring. This support is critical when working with larger tubing bores, where maintaining dimensional integrity during deformation ensures a uniform, stable flange.
The polymeric pin material is engineered to:
Minimize stress during flaring
Prevent deformation of soft or semi‑flexible tubing
Maintain consistent and repeatable flare geometry
When used with the flanging tool, this drill produces mechanically formed (cold‑formed) flares, eliminating heat variability and delivering:
Improved dimensional stability
Reduced tubing distortion
Reliable sealing surfaces for leak‑free connections
The 10‑pack configuration is ideal for high‑throughput laboratories and multi‑user environments, ensuring consistent availability and uninterrupted tubing preparation workflows.
Why Choose the 1.3 mm Polymeric Pin Drill
This drill is typically selected when:
Working with large ID polymer tubing
Maximum internal support is required during flaring
Expanding beyond standard flanging tool kit capabilities
Maintaining consistent, repeatable flange geometry across larger tubing sizes
The 1.3 mm pin provides the highest level of internal support, making it ideal for larger bore tubing and higher‑flow applications.
Key Features
Designed for Larger Polymer Tubing
Compatible with PTFE, FEP, PFA, ETFE, and similar materials
Optimized for larger internal diameter tubing
Ensures consistent flaring performance
Polymeric Pin Construction
1.3 mm polymeric pin
Provides enhanced internal support
Minimizes tubing deformation during flaring
Compatible with Flanging Tool Systems
Designed for MICROSOLV flanging tools
Maintains tool precision and repeatability
Supports standardized workflows
Cold‑Forming Flare Technology
Mechanical flaring (no heat required)
Produces durable, stable tubing flares
Improves connection reliability
High‑Volume Lab Efficiency
10‑pack configuration for multi‑user environments
Ensures tool availability
Supports preventative maintenance programs
Typical Applications
Flanging large ID polymer tubing
Replacement of flanging tool drill components
Expanding flanging tool system capability
Low‑pressure chromatography and fluidic systems
High‑volume laboratory tubing preparation
