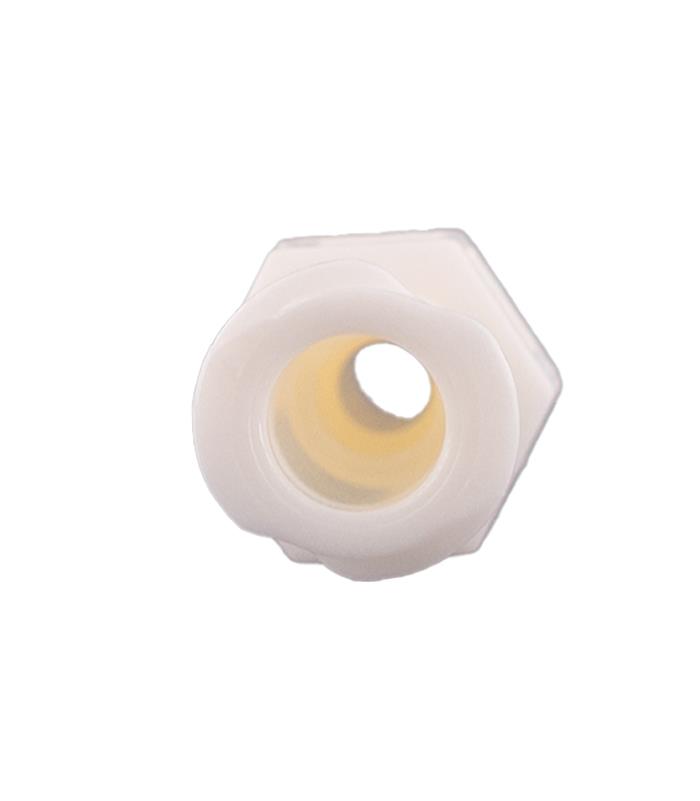

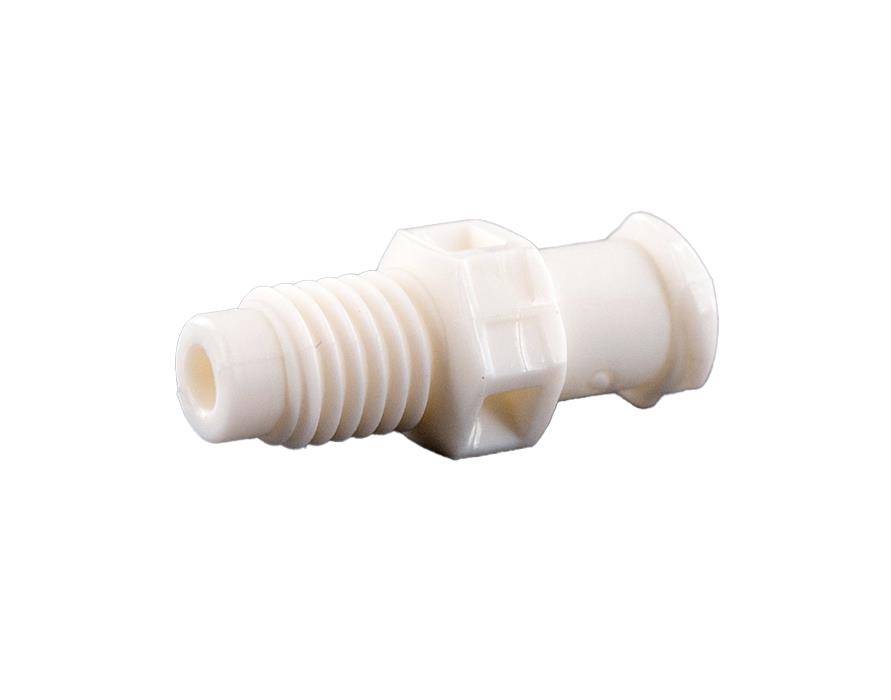

Adapter, for use with low pressure HPLC. Female luer thread style with 5/16 inch Hex to 1/4-28 UNF bottom sealing thread. White nylon ARE-Applied Research brand. 10/PK.
Additional Info:
Low‑pressure nylon adapters are designed for laboratory and analytical fluidic systems requiring dependable transitions between standard Luer fittings and threaded HPLC connections. These fittings are suitable for solvent transfer, sample handling, tubing integration, and general low‑pressure laboratory fluid management applications.
The 47453‑01‑010 (10/Pack) adapters feature a female Luer thread style connection on one side and a 1/4‑28 UNF bottom‑sealing threaded connection on the other side, allowing convenient integration between different laboratory tubing and connector systems.
A 5/16" hex body design provides convenient installation and removal during laboratory setup and maintenance procedures.
These adapters are especially useful when tubing systems require different connector configurations within the same fluidic pathway.
Manufactured from chemically resistant white nylon material, these adapters are suitable for a broad range of laboratory fluid handling applications where lightweight polymer fittings are preferred.
Key Benefits
Female Luer thread style to 1/4‑28 UNF adapter configuration
Bottom‑sealing 1/4‑28 threaded connection
5/16" hex body for convenient installation
Chemically resistant white nylon construction
Suitable for low‑pressure laboratory fluidics
Lightweight polymer fitting construction
Ideal for mixed connector tubing systems
10/Pack configuration for laboratory replacement needs
Specifications
Product Type: Luer to threaded adapter
Material: White nylon
Connection Style 1: Female Luer thread style
Connection Style 2: 1/4‑28 UNF bottom‑sealing thread
Hex Size: 5/16"
Maximum Temperature: 100°C
Maximum Pressure: 1,000 psig
Pack Size: 10
Applications
Low‑pressure HPLC systems
Laboratory tubing integration
Solvent transfer applications
Analytical fluid handling systems
Mixed connector fluidic systems
General laboratory instrumentation
Usage Notes
Designed for low‑pressure applications
Compatible with standard Luer fittings
Suitable for 1/4‑28 UNF threaded ports
Bottom‑sealing thread design
Lightweight and chemically resistant construction
Suitable for laboratory fluid transfer systems
Not intended for UHPLC ultra‑high‑pressure applications
