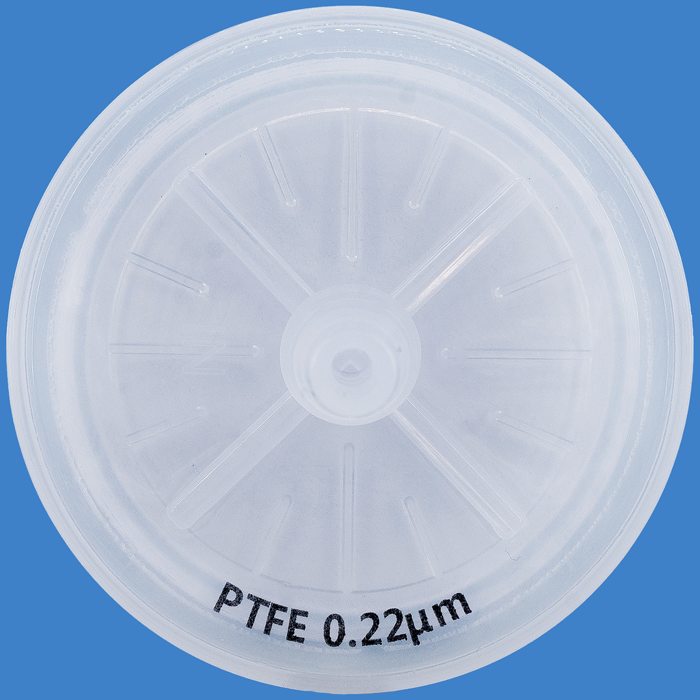

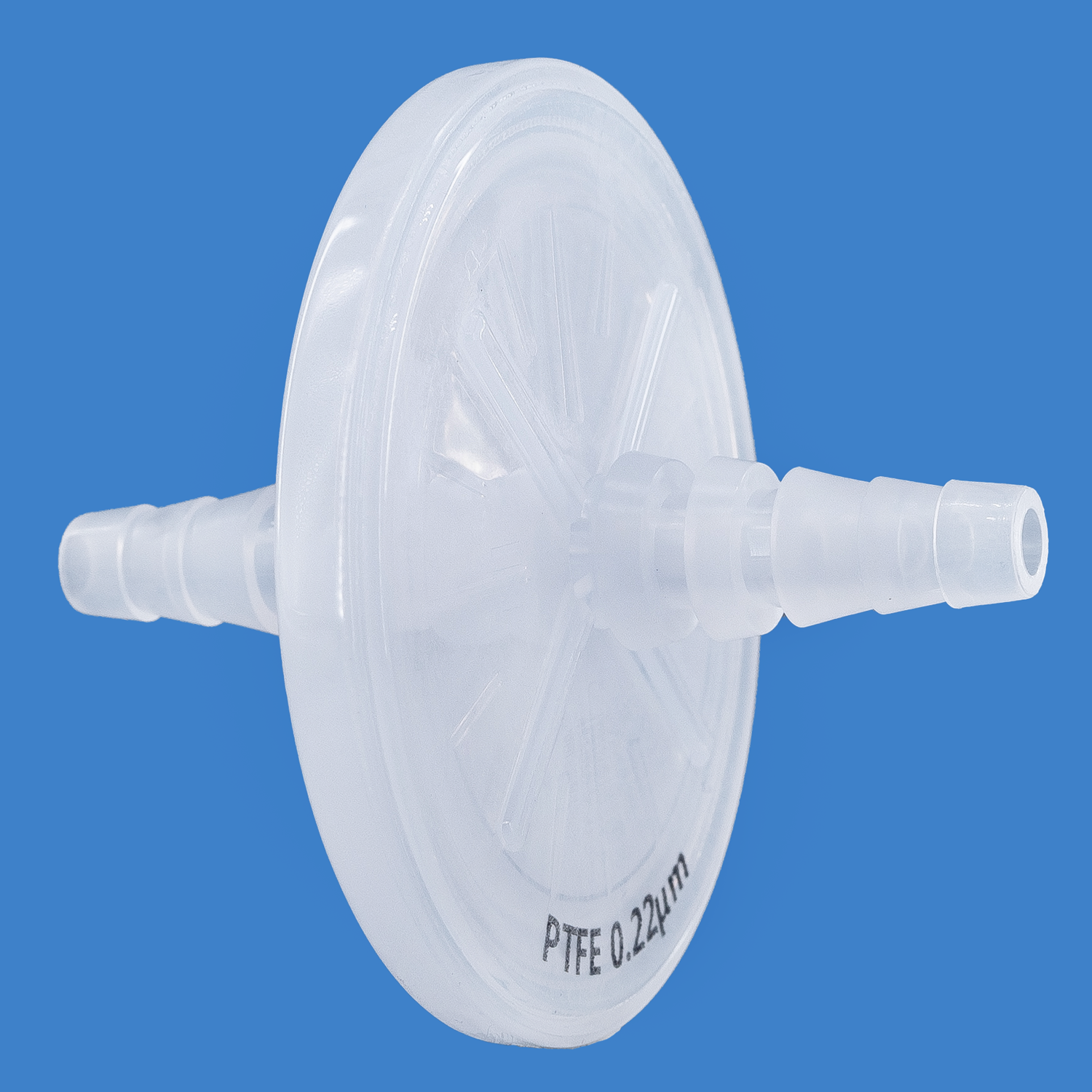

Capsule venting filter, 0.22 um hydrophobic PTFE membrane, filtration area of 20 cm2 in 64 mm OD polypropylene housing. Hose barb connections. Non sterile. Antarisz brand. 20/PK.
Additional Info:
The CS10-58650-22V Antarisz™ Capsule Vent Filters are high-performance, hydrophobic membrane filters designed for solvent system venting, sterile gas exchange, and protection of laboratory vessels. Featuring a 0.22 µm hydrophobic PTFE membrane, these filters provide reliable microbial retention and excellent airflow, making them ideal for venting and gas filtration applications.
Hydrophobic PTFE membranes are highly resistant to moisture and aggressive chemicals, preventing liquid ingress while allowing efficient gas exchange. This makes them ideal for protecting bioreactors, carboys, media bottles, and vacuum lines from contamination.
With a large 20 cm² filtration area, these capsule filters support high airflow rates (5 L/min at 0.2 bar), ensuring efficient venting without pressure buildup. The lightweight polypropylene housing helps prevent tubing kinks and improves handling in laboratory setups.
Designed for durability, these filters are autoclavable (≥20 cycles at 121°C) and offer validated bacterial retention (B. diminuta LRV >7), making them suitable for critical applications.
Key Features
0.22 µm Hydrophobic PTFE Membrane
Provides sterile venting and microbial retention
Prevents liquid intrusion
High Airflow Performance
~5 L/min at 0.2 bar
Supports efficient venting and pressure control
Large Filtration Area (20 cm²)
Improves throughput and airflow efficiency
Reduces back pressure
Excellent Chemical Resistance
Compatible with solvents, acids, and bases
Ideal for harsh environments
Autoclavable & Durable
≥20 autoclave cycles at 121°C
Designed for repeated use
Low Weight Housing
Prevents tubing kinks
Easy integration into lab systems
Validated Microbial Retention
B. diminuta LRV >7
Suitable for sterile venting applications

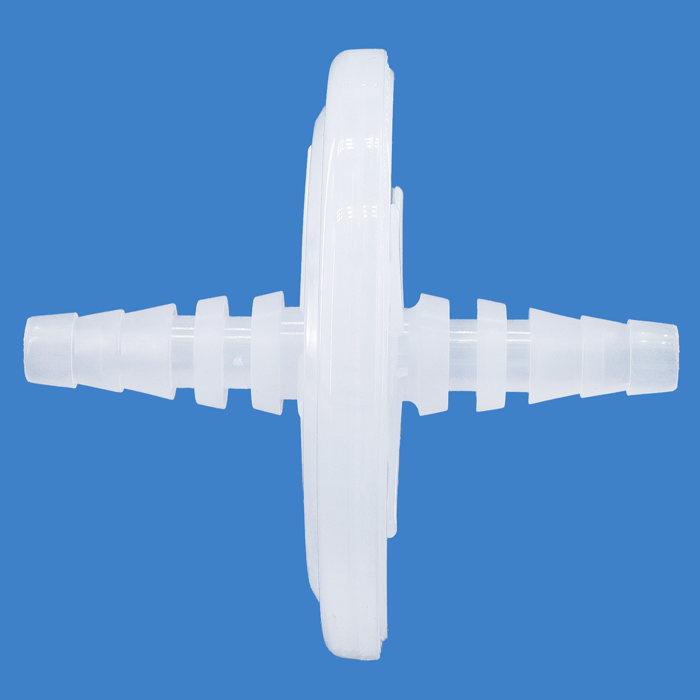

Flexible Connection Options
1/4–3/8" stepped hose barb
Optional 1/8" MNPT
Typical Applications
Bioreactor & Fermentation Venting – sterile gas exchange
Carboy & Media Bottle Venting – contamination prevention
Vacuum Line Protection – prevents particulate and moisture ingress
Cell Culture Gas Exchange – sterile air/gas transfer
HPLC Sample Prep Venting – solvent container venting
Filling & Storage Systems – inline air filtration
Specifications
Filter Type: Capsule Vent Filter
Membrane Material: PTFE (Hydrophobic)
Pore Size: 0.22 µm
Filtration Area: 20 cm²
Housing Material: Polypropylene (PP)
Outer Diameter: 64 mm
Connections: 1/4–3/8" hose barb / optional 1/8" MNPT
Air Flow Rate: ~5 L/min @ 0.2 bar
Bubble Point (60% IPA): >1.0 bar
Max Operating Temp: 121°C
Autoclave Cycles: ≥20
Bacterial Retention: B. diminuta LRV >7
Endotoxin Level: <0.25 EU/mL
Sterility: Non-sterile
Biosafety: USP Class VI
Pack Size: 20/PK
Brand: Antarisz™
