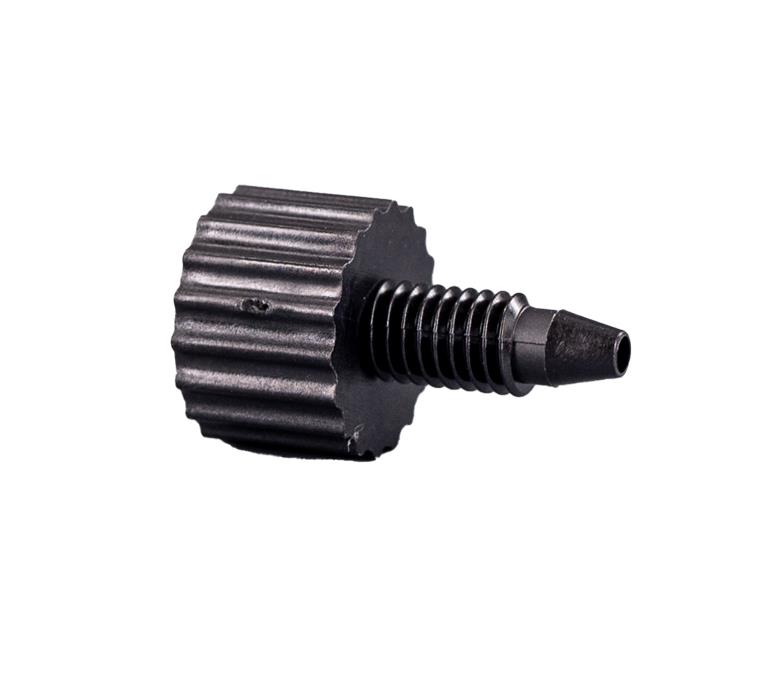

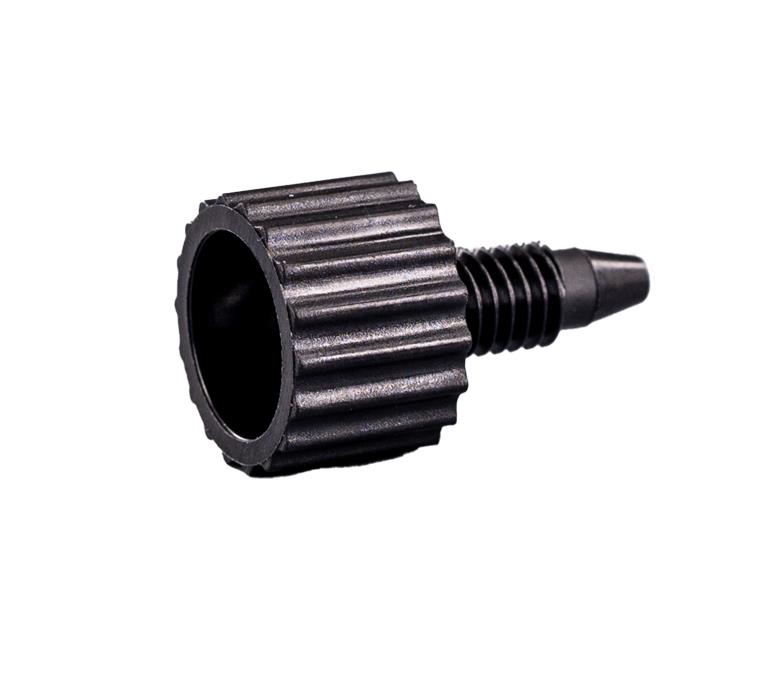

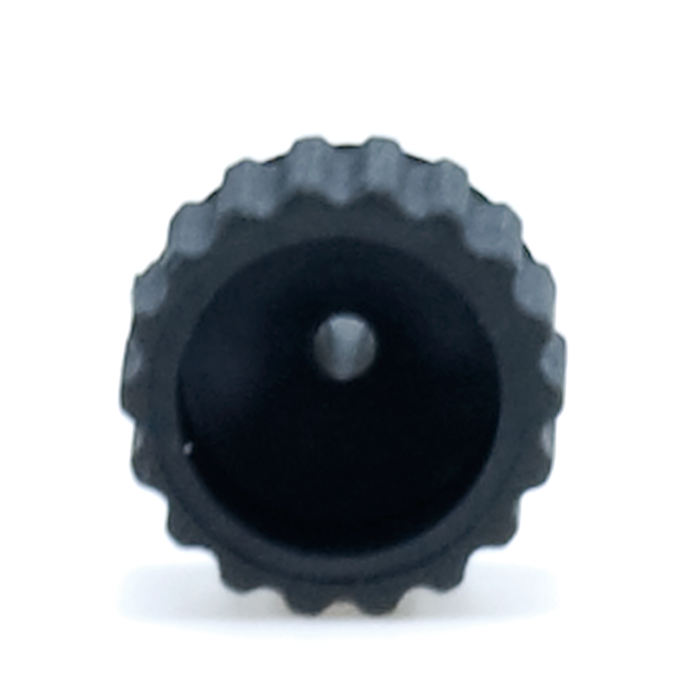

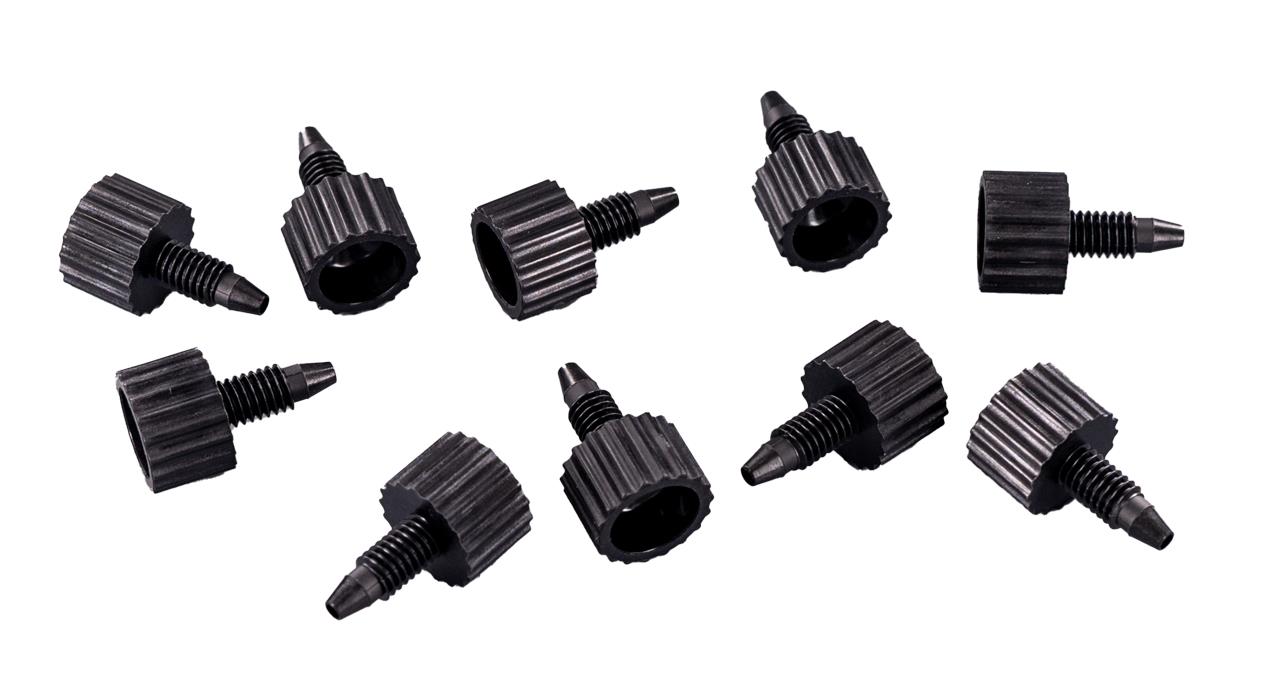

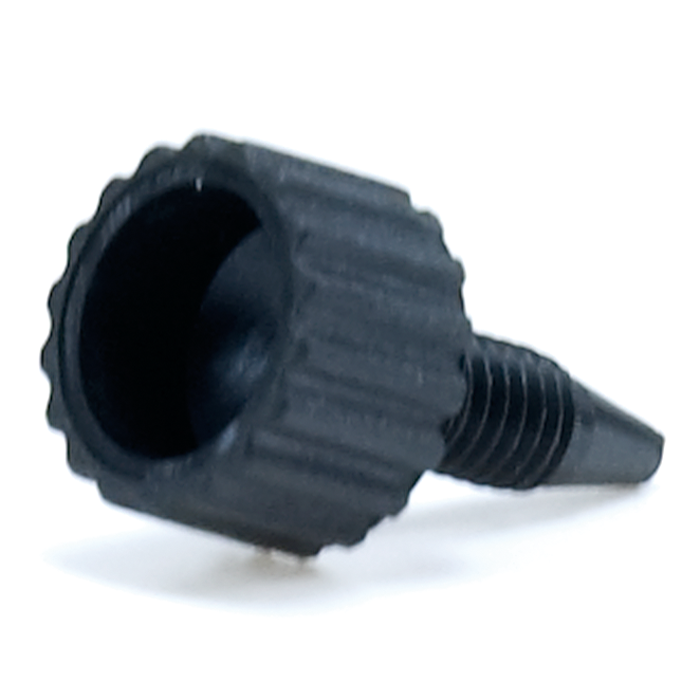

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, Carbon PEEK Endure, Black, large head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 10/PK.
Additional Info:
Carbon PEEK tubing connector fittings for 1/16" OD tubing provide durable, high-strength connections for high-pressure HPLC UHPLC systems. Designed for 10‑32 ports, these one-piece fittings are compatible with both PEEK and stainless steel tubing.
The 47301‑05 Carbon PEEK Tubing Connector Fittings (10/Pack) are engineered for high-pressure performance with a large diameter knurled head, allowing users to easily generate additional torque by hand for secure sealing. This design improves installation reliability, particularly in applications requiring repeated connections or higher tightening force.
Manufactured from Carbon PEEK (Endure™), these fittings are reinforced with carbon fiber, providing exceptional stiffness, strength, and load-bearing capability, making them well-suited for demanding analytical systems and extended operational use.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC UHPLC applications
Carbon Fiber Reinforced PEEK (Endure™) Maximum strength and stiffness among PEEK materials
Large Knurled Head Design Enables improved grip and higher manual torque
One‑Piece Fitting Construction Ensures consistent, leak-free sealing
Finger-Tight Installation Tool-free setup with enhanced tightening capability
Compatible with Multiple Tubing Types Suitable for PEEK or stainless steel tubing
Performance & Design
Material: Carbon PEEK (Endure™)
Reinforced with carbon fiber
High mechanical strength and rigidity
Excellent chemical resistance
Superior load-bearing performance
Design Features:
One-piece construction
Large knurled head for improved manual torque
Ideal for applications requiring strong, repeatable sealing
Dimensions:
Total Length: 21 mm
Thread Length: 12 mm
Head Type: Large diameter knurled
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing
Improved torque control without tools
Durable performance under repeated use
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Used in:
High-pressure HPLC UHPLC systems
Analytical and high-resolution separations
Applications requiring strong, repeatable connection force
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
Finger-tight installation is typically sufficient
Additional torque can be achieved manually due to large knurled head design
Specifications
Product Type: Tubing Connector Fittings
Material: Carbon PEEK (Endure™)
Color: Black
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, large knurled head
Total Length: 21 mm
Thread Length: 12 mm
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
