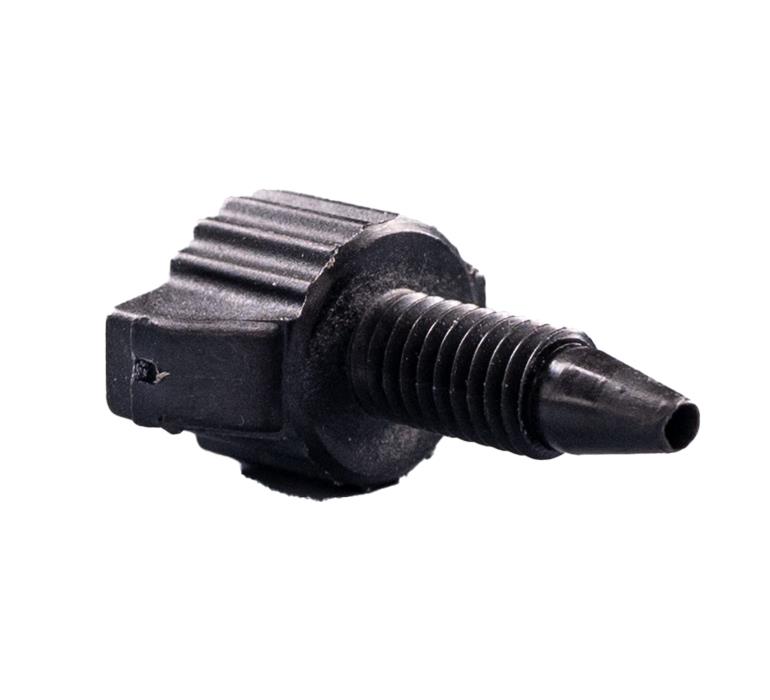

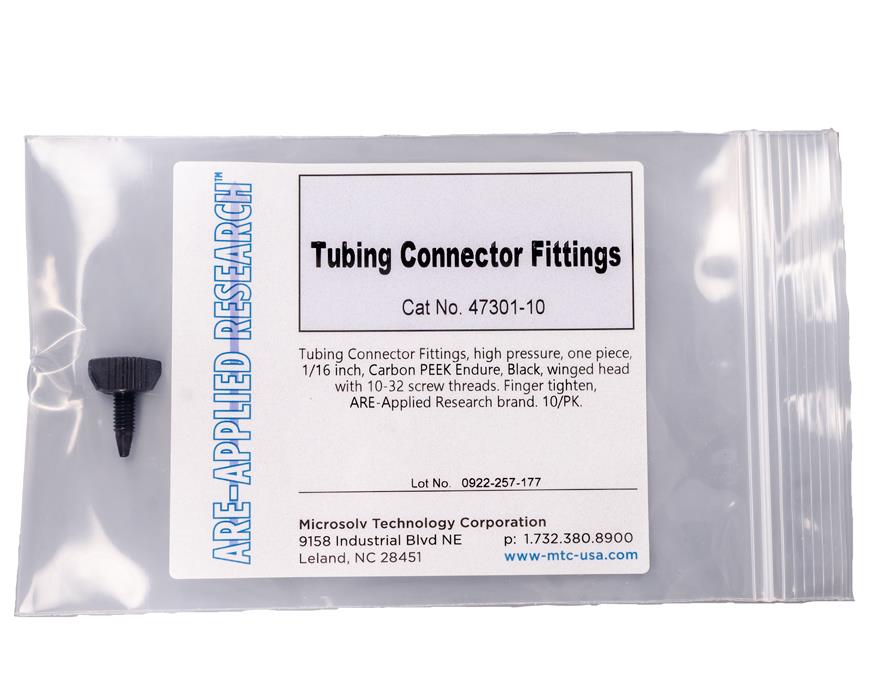

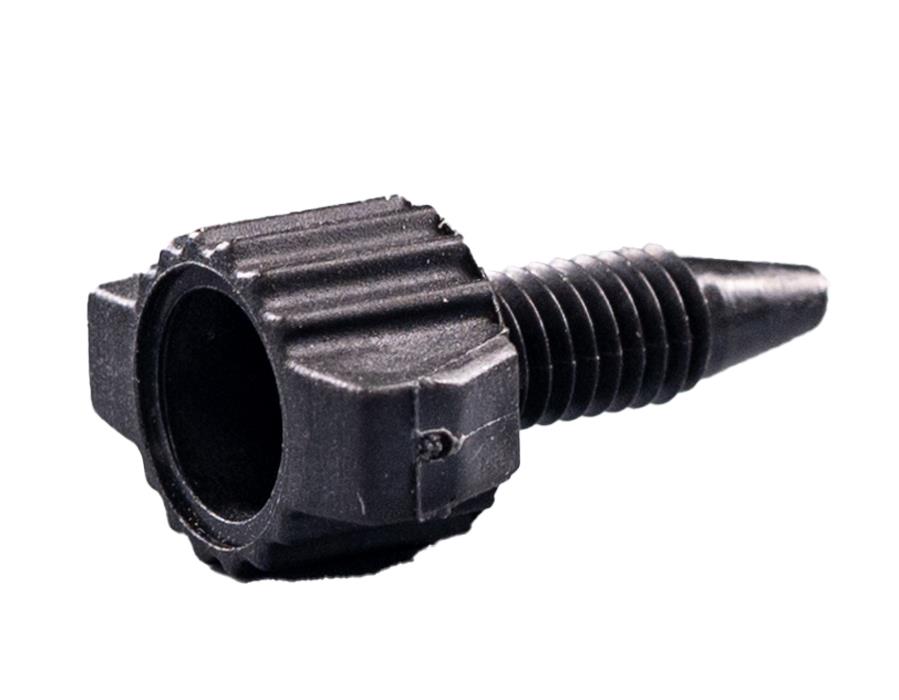

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, Carbon PEEK Endure, Black, winged head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 10/PK.
Additional Info:
Carbon PEEK tubing connector fittings for 1/16" OD tubing provide secure, high-strength connections for high-pressure HPLC UHPLC systems. Designed for 10‑32 ports, these one-piece fittings are compatible with both PEEK and stainless steel tubing.
The 47301‑10 Carbon PEEK Tubing Connector Fittings (10/Pack) are engineered for high-pressure performance, featuring a 15 mm winged head design that allows users to apply increased torque easily by hand. The winged geometry provides enhanced grip and leverage, making these fittings ideal for applications where secure tightening is critical without the use of tools.
Manufactured from Carbon PEEK (Endure™), these fittings are reinforced with carbon fiber, delivering exceptional strength, stiffness, and load-bearing capability, making them suitable for demanding analytical environments and long-term use.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC applications
Carbon Fiber Reinforced PEEK (Endure™) Maximum strength and stiffness among PEEK materials
Winged Head Design for Enhanced Torque Provides superior grip and leverage for hand tightening
One‑Piece Fitting Construction Ensures consistent, leak-free sealing
Tool-Free Installation Finger-tight with increased torque capability
Compatible with Multiple Tubing Types Suitable for PEEK or stainless steel tubing
Performance & Design
Material: Carbon PEEK (Endure™)
Reinforced with carbon fiber
High mechanical strength and rigidity
Excellent chemical resistance
Superior load-bearing performance
Design Features:
One-piece construction

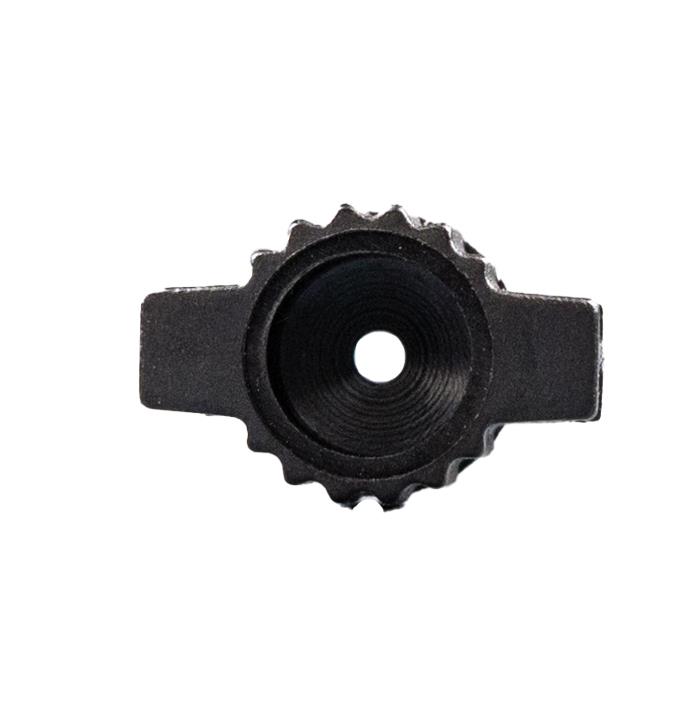

15 mm winged head for maximum manual torque
Optimized for secure tightening without tools
Dimensions:
Head Diameter: 15 mm
Total Length: 21 mm
Thread Length: 13 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing
Improved torque application by hand
Durable performance under repeated use
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Ideal for:
High-pressure HPLC systems
Applications requiring maximum hand-applied torque
Situations where tools are not desirable or accessible
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
Finger-tight installation is typically sufficient
Winged design allows additional torque without tools
Specifications
Product Type: Tubing Connector Fittings
Material: Carbon PEEK (Endure™)
Color: Black
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, winged head
Head Diameter: 15 mm
Total Length: 21 mm
Thread Length: 13 mm
Pack Size: 10 per pack
Brand: ARE‑Applied Research™
