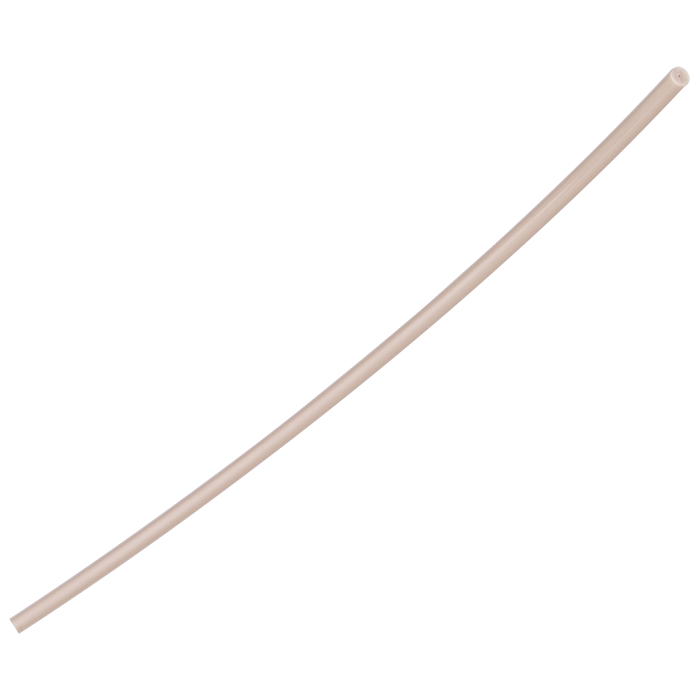

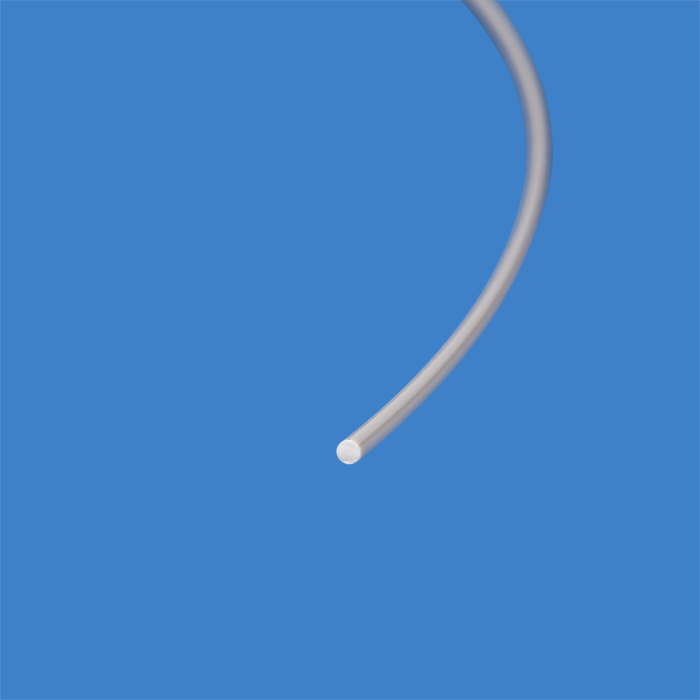

Tubing, PEEK, 0.0025 inch (0.064 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, natural color, 25 meter spool, ARE-Applied Research brand. 1 EA.
Additional Info:
Ultra‑T™ grade PEEK tubing is manufactured from virgin PEEK material without processing additives for HPLC and LC‑MS applications requiring low extractables and chemical resistance.
The 47305‑ST‑02‑C tubing features a 0.0025" (0.064 mm) ID with a 1/16" (1.6 mm) OD and natural color construction without color stripe additives or leachable pigments.
This tubing is supplied on a convenient spool for easier storage and handling. Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some HPLC fitting applications.
Key Benefits
Ultra‑T™ virgin PEEK tubing
Natural color with no color leachables
Suitable for HPLC and LC‑MS
High‑pressure resistant tubing
Metal‑free fluidic pathway
Flexible PEEK construction
25 meter spool format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Grade: Ultra‑T™
Material: Virgin PEEK
Tubing ID: 0.0025" (0.064 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.768 mm
Tolerance: ± 0.025 mm
Color: Natural
Pressure Rating: 6300 psi (434.4 bar)
Length: 25 meter roll
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidics
Metal‑free chromatography pathways
Usage Information
Designed for HPLC and LC‑MS applications
Natural tubing contains no color additives
Supplied on a convenient spool
Cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
