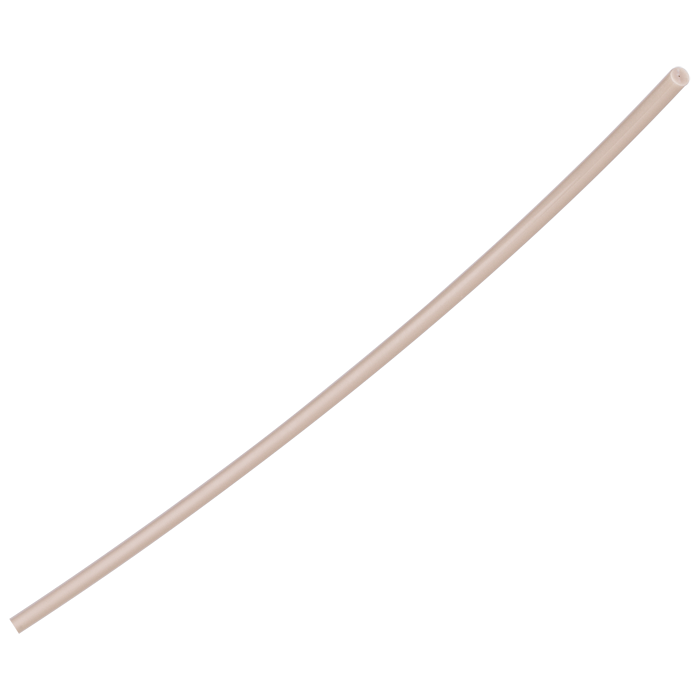

Tubing, PEEK, 0.0025 inch (0.064 mm) ID, 1/16th inch (1.6 mm) OD, Ultra-T grade, natural color, 1 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
Ultra‑T™ grade PEEK tubing is manufactured from virgin PEEK material without processing additives, making it suitable for demanding HPLC and LC‑MS applications requiring low extractables and dependable chemical resistance.
The 47305‑ST‑02‑1M tubing features a 0.0025" (0.064 mm) internal diameter with a 1/16" (1.6 mm) outer diameter and natural color construction without color stripe additives or leachable pigments.
This high‑pressure tubing is commonly used in analytical HPLC and LC‑MS systems where chemically resistant, metal‑free fluidic pathways are preferred.
Tubing is carefully cut for length consistency but is not supplied with precision low dead volume end cuts required for some critical HPLC fitting applications.
Key Benefits
Ultra‑T™ premium virgin PEEK tubing
Manufactured without processing additives
Natural color with no color leachables
Suitable for HPLC and LC‑MS applications
Chemically resistant high‑pressure tubing
Metal‑free fluidic pathway
Flexible and durable PEEK construction
1 meter roll format
Specifications
Product Type: High‑pressure PEEK tubing
Brand: ARE‑Applied Research
Tubing Material: Virgin PEEK
Grade: Ultra‑T™
Tubing ID: 0.0025" (0.064 mm)
Tubing OD: 1/16" (1.6 mm)
Wall Thickness: 0.768 mm
Color: Natural
ID/OD Tolerance: ± 0.025 mm
Pressure Rating: 6300 psi (434.4 bar)
Length: 1 meter roll
Applications
Analytical HPLC
LC‑MS systems
High‑pressure fluidic connections
Metal‑free chromatography pathways
Low leachable laboratory applications
Usage Information
Designed for HPLC and LC‑MS applications
Natural color tubing contains no color additives
Carefully cut for length consistency
Not supplied with precision low dead volume end cuts
Custom cut lengths available through Customer Service
