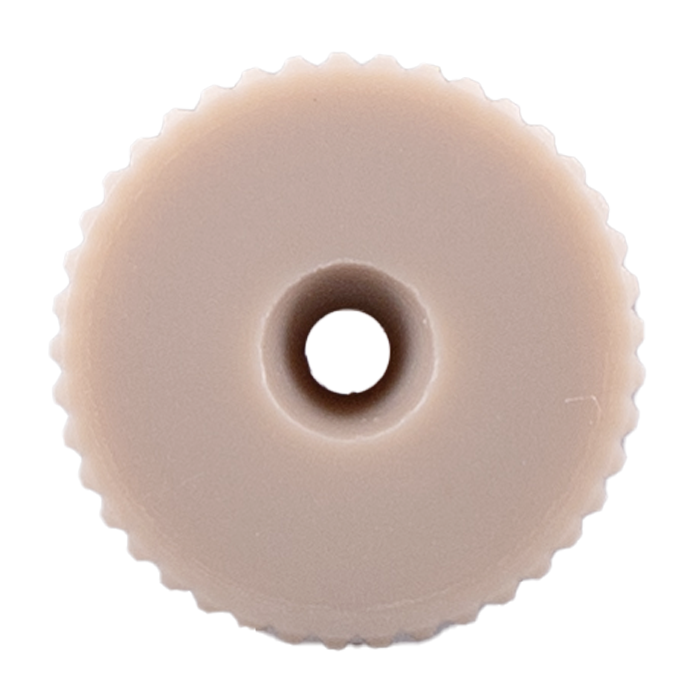

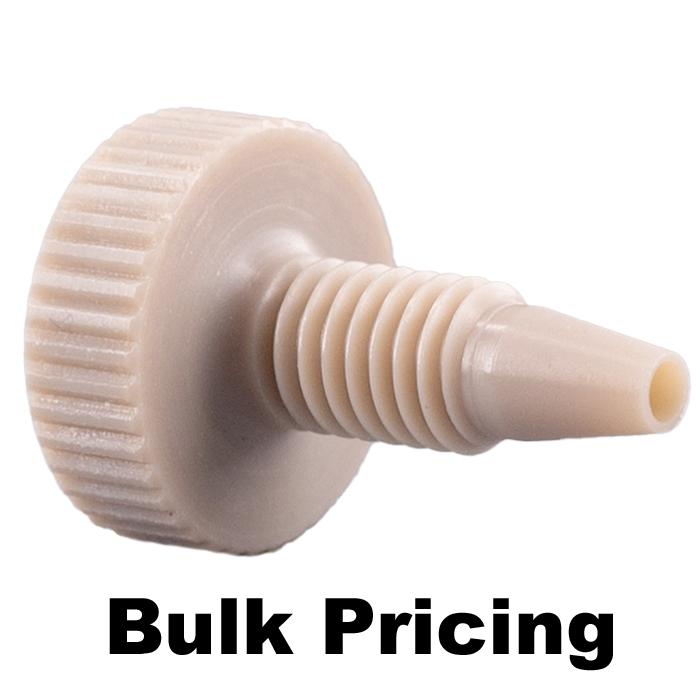

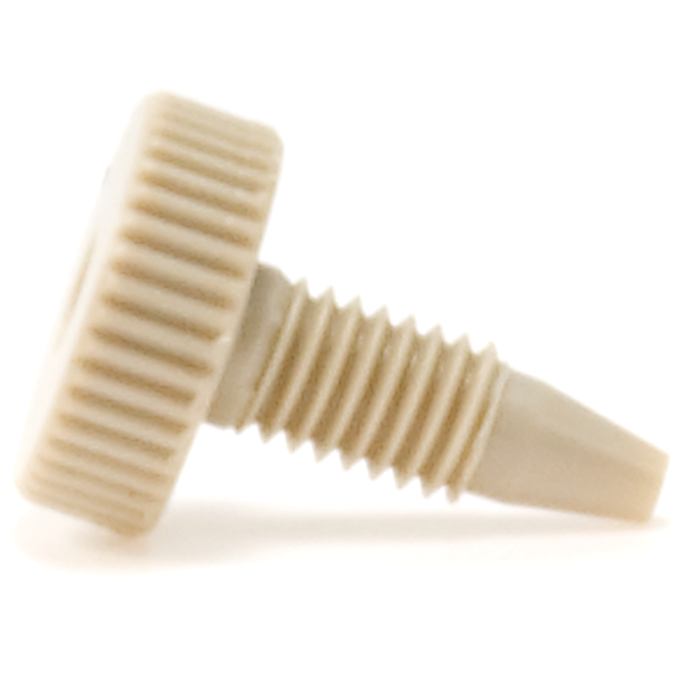

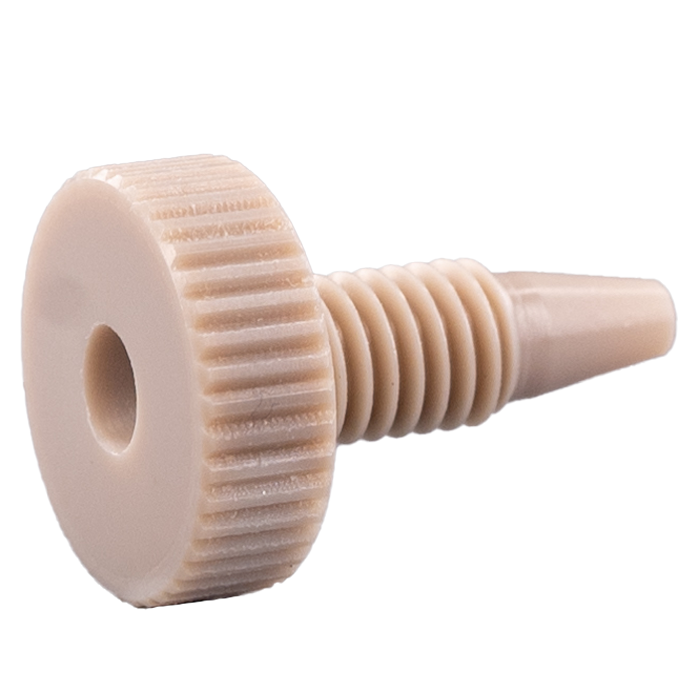

CUSTOM ITEM: Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, short head and short length with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
PEEK tubing connector fittings for 1/16" OD tubing provide reliable high-pressure connections in space-restricted HPLC systems. Designed for 10‑32 ports, these one-piece fittings are compatible with both PEEK and stainless steel tubing.
The 47320‑01 PEEK Tubing Connector Fitting is engineered for high-pressure applications where space is limited, such as column ovens, thermal compartments, or compact instrument layouts. Its short head and reduced overall length help minimize clearance issues while maintaining dependable sealing performance.
Manufactured from natural PEEK, this fitting offers excellent chemical resistance and mechanical strength for demanding analytical workflows. The beveled inlet design improves tubing insertion, making installation easier and more consistent.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC systems
Short Head & Compact Length Design Ideal for tight spaces such as column ovens and chillers
Natural PEEK Construction Provides excellent chemical resistance and durability
Beveled Inlet for Easier Installation Improves tubing insertion and reduces handling difficulty
One‑Piece Fitting Construction Ensures consistent sealing performance
Compatible with Multiple Tubing Types Suitable for PEEK or stainless steel tubing
Bulk Custom Item Availability Ideal for flexible ordering and specialized requirements
Performance & Design
Material: Natural PEEK
Excellent chemical resistance
Strong mechanical integrity
Suitable for high-pressure environments
Design Features:
Short-profile head for confined installations
Beveled inlet for improved tubing insertion
Optimized for compact system layouts
Dimensions:
Head Diameter: 12 mm
Total Length: 15 mm
Thread Length: 11 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing
Improved access in restricted spaces
Simplified installation and handling
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Ideal for:
HPLC UHPLC high-pressure zones
Column ovens and temperature-controlled compartments
Systems requiring compact fitting geometry
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
Short profile improves clearance in limited-space environments
⚠️ Custom Order Item Non-returnable and non-cancelable once ordered
Specifications
Product Type: Tubing Connector Fitting
Material: Natural PEEK
Color: Natural
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, short head and short length
Head Diameter: 12 mm
Total Length: 15 mm
Thread Length: 11 mm
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
