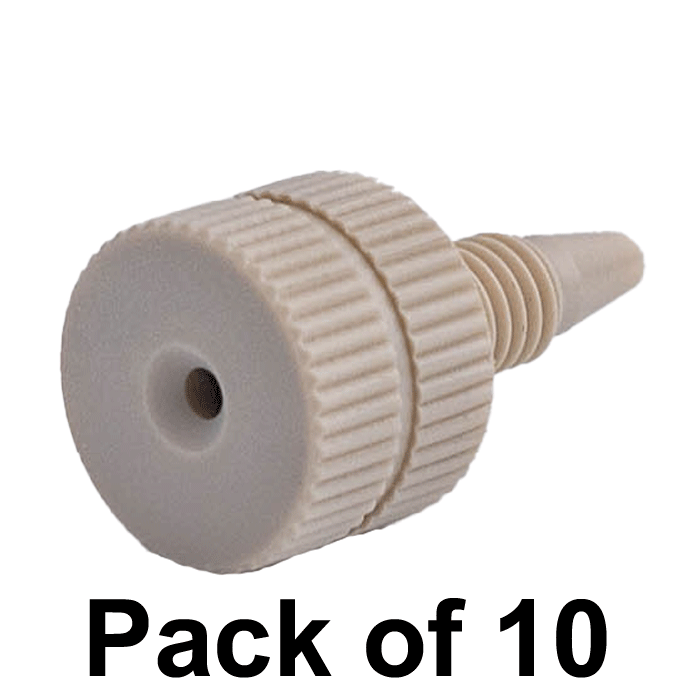

Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, large head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 10/PK.
Additional Info:
PEEK tubing connector fittings for 1/16" OD tubing provide reliable connections in high-pressure HPLC systems. Designed for 10‑32 ports, these fittings are compatible with PEEK or stainless steel tubing.
The 47320‑06 (10/Pack) features a large knurled head for improved grip and torque, making it easier to achieve secure, leak-free connections.
Key Benefits
Large head for improved torque
One-piece, finger-tight design
Compatible with PEEK or stainless tubing
Ideal for routine HPLC use
Specifications
Material: Natural PEEK
Tubing Size: 1/16 inch OD
Thread: 10‑32
Head Diameter: 12 mm
Length: 21 mm
Thread Length: 13 mm
Pack Size: 10
Usage Notes
For high-pressure HPLC applications
Not recommended for UHPLC
Ensure proper tubing insertion before tightening
Resources & Ordering Options
Click HERE for single unit quantity. Compare to Fingertight™ Fittings.
