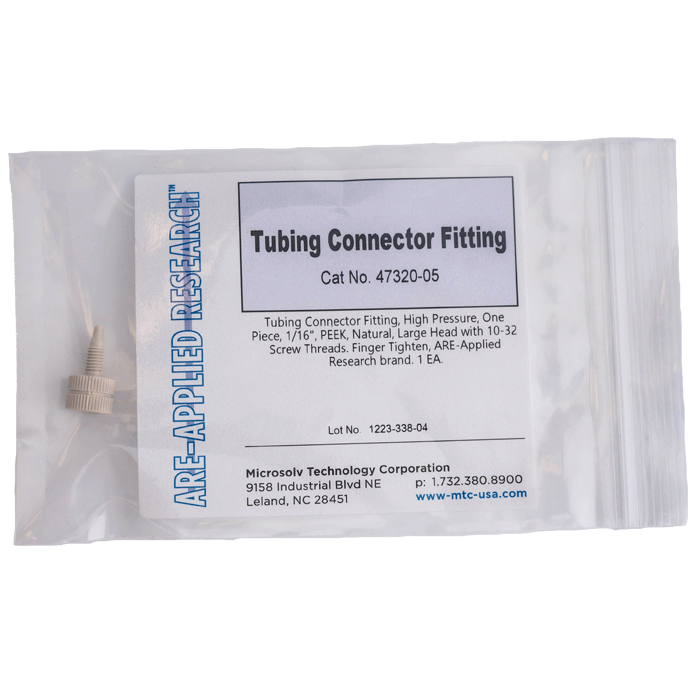

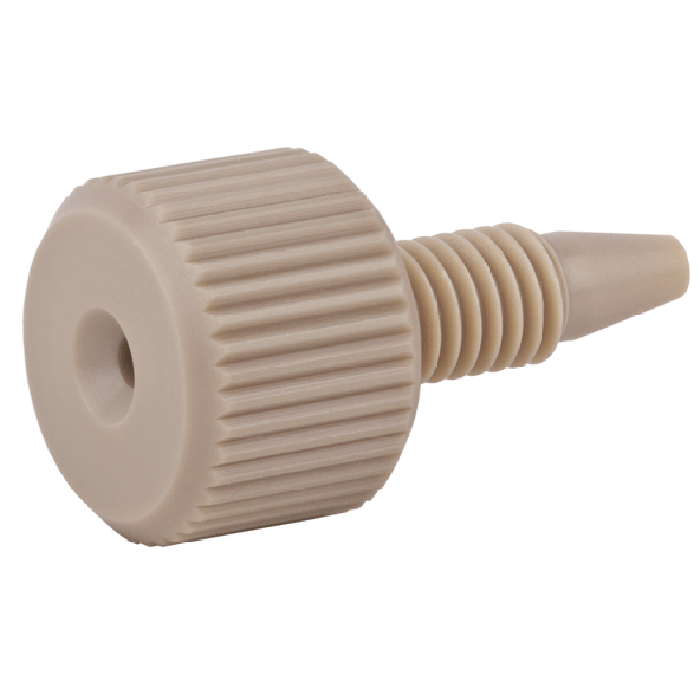

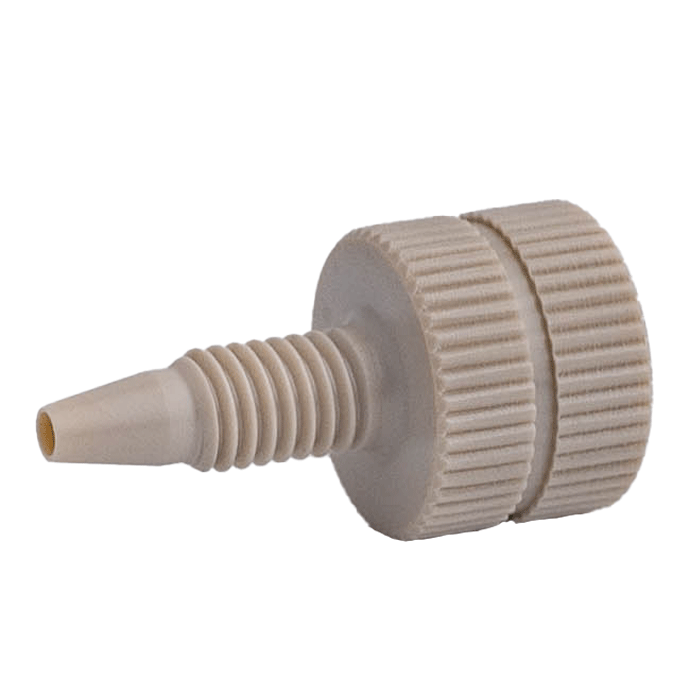

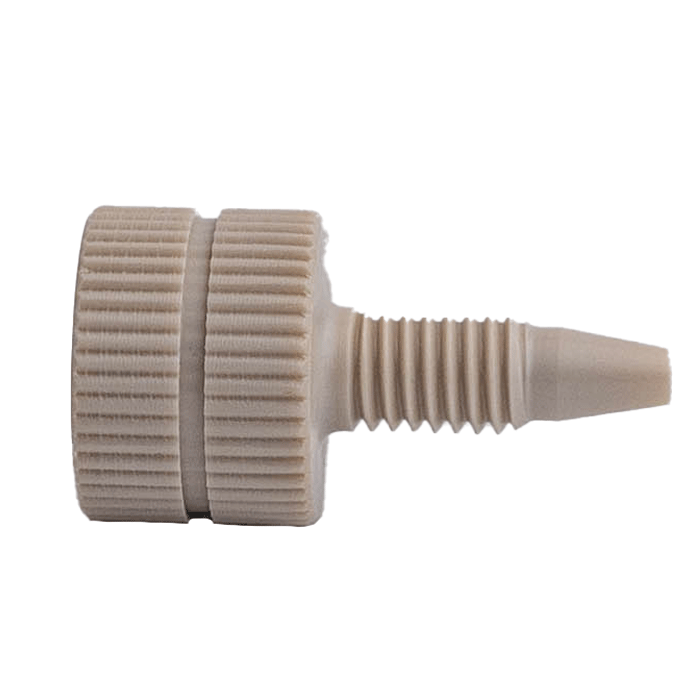

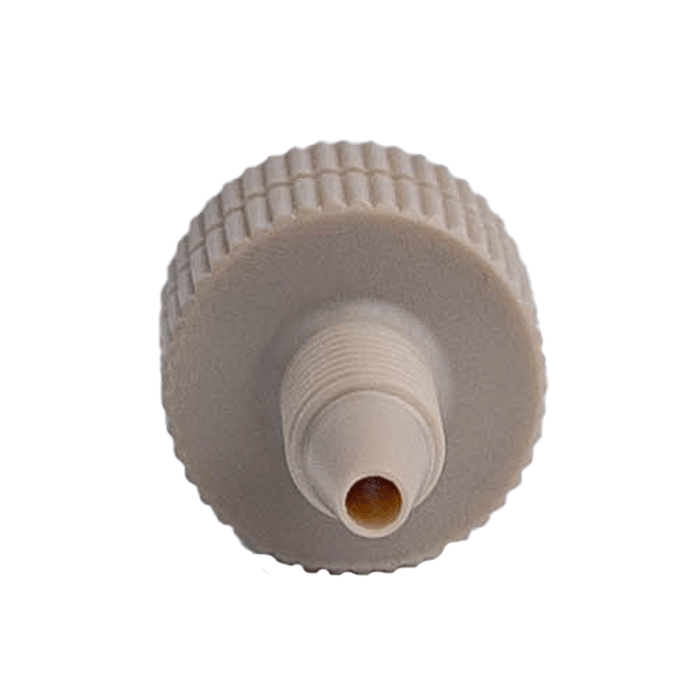

CUSTOM ITEM: Tubing Connector Fittings, high pressure, one piece, 1/16 inch, PEEK, Natural, large head with 10-32 screw threads. Finger tighten, ARE-Applied Research brand. 1 EA.
Additional Info:
PEEK tubing connector fitting for 1/16" OD tubing provides a reliable high-pressure connection in HPLC systems. Designed for 10‑32 ports, this one-piece fitting is compatible with both PEEK and stainless steel tubing and features a large head for improved torque control.

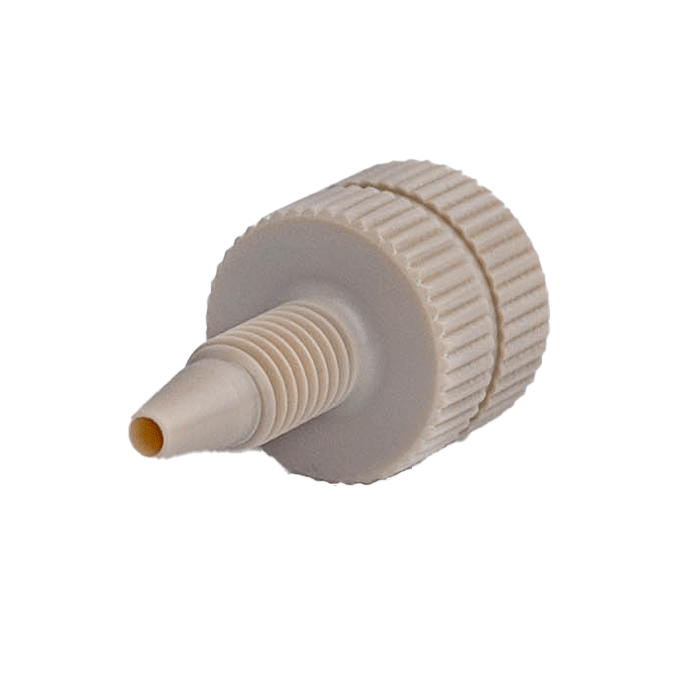

The 47320‑05 PEEK Tubing Connector Fitting (Each) is one of the most popular configurations, engineered for high-pressure applications where improved grip and tightening force are beneficial. The large knurled head design allows users to apply increased torque by hand, helping ensure proper swaging and secure, leak-free connections.
Manufactured from natural PEEK, this fitting provides excellent chemical resistance and mechanical durability for demanding analytical workflows.
✅ Key Benefits
High-Pressure Performance Designed for demanding HPLC systems

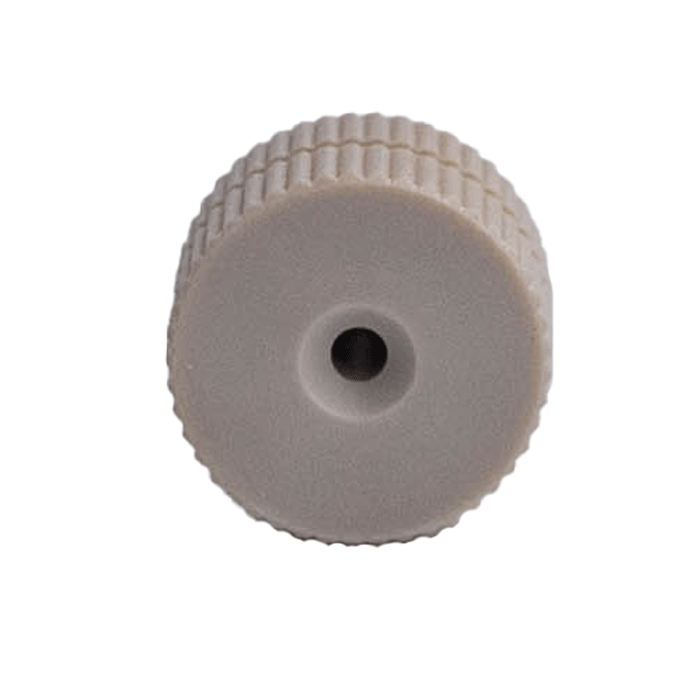

Large Knurled Head Design Enables increased grip and improved manual torque
Natural PEEK Construction Provides excellent chemical resistance and durability
One‑Piece Fitting Construction Ensures consistent, leak-free sealing performance
Compatible with Multiple Tubing Types Suitable for PEEK or stainless steel tubing
Single Unit Availability Ideal for replacement, troubleshooting, or testing
Performance & Design
Material: Natural PEEK
Excellent chemical resistance
Strong mechanical integrity
Suitable for high-pressure environments
Design Features:
Large knurled head for enhanced grip
Designed for improved torque application
Supports consistent swaged connections
Dimensions:
Head Diameter: 12 mm
Total Length: 21 mm
Thread Length: 13 mm
Connection Type:
10‑32 threaded fitting
Designed for high-pressure systems
Engineered for:
Reliable high-pressure sealing
Improved manual tightening capability
Repeatable, secure tubing connections
System Role & Integration
Connects 1/16" OD tubing (PEEK or stainless steel)
Ideal for:
HPLC high-pressure zones
Applications requiring improved grip and torque
Replacement or validation scenarios
⚠️ Usage Notes
Compatible with 10‑32 threaded ports
Designed for high-pressure applications
Ensure proper tubing insertion before tightening
Large head design improves ability to achieve proper sealing force
Specifications
Product Type: Tubing Connector Fitting
Material: Natural PEEK
Color: Natural
Tubing Size: 1/16 inch OD
Thread Type: 10‑32
Connection Type: High pressure
Design: One-piece, large knurled head
Head Diameter: 12 mm
Total Length: 21 mm
Thread Length: 13 mm

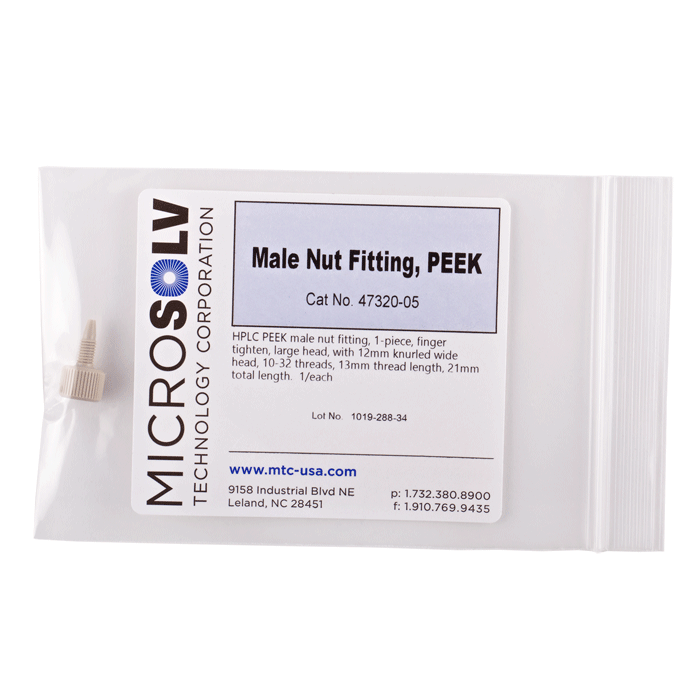

Packaging: Each (Single Unit)
Brand: ARE‑Applied Research™
