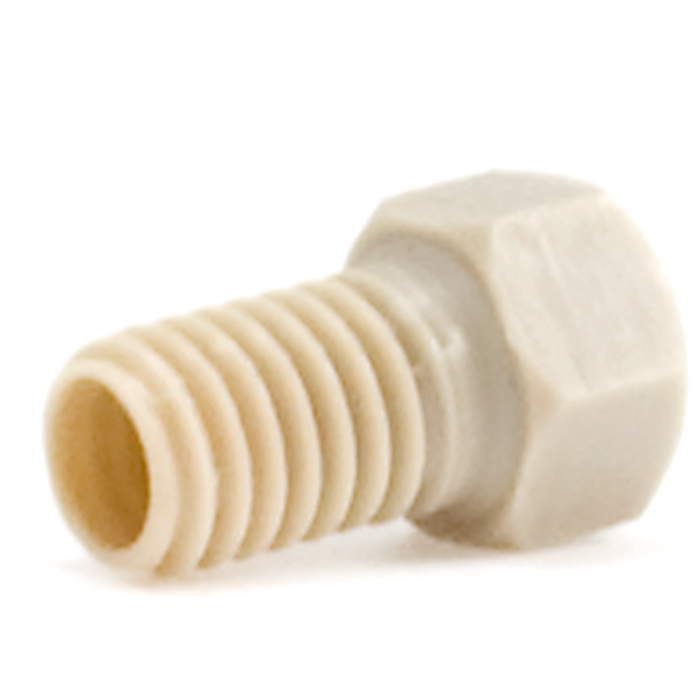

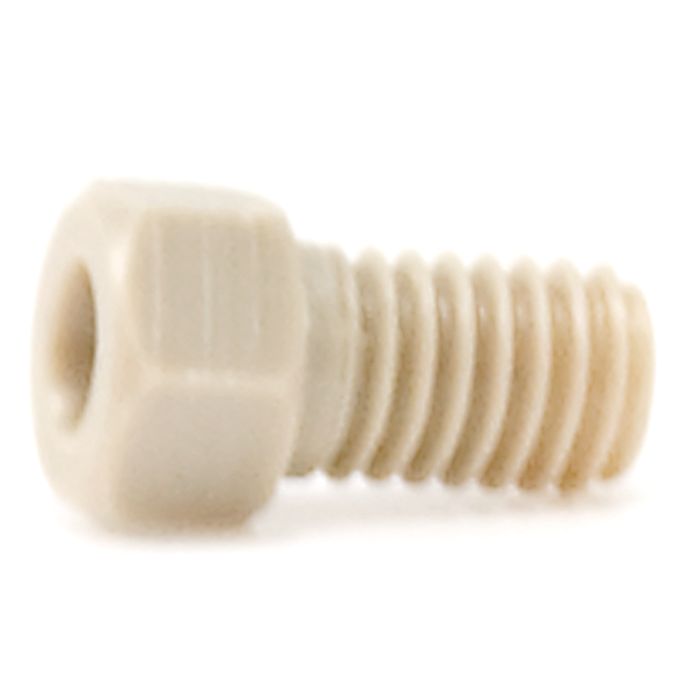

CUSTOM ITEM: Tubing Connector Nuts, high pressure, two pieces, 1/16 inch, PEEK, Natural, small hex head, short length and 10-32 screw threads. Use with double cone ferrules. Wrench tighten, ARE-Applied Research brand. Bulk Price.
Additional Info:
Two‑piece PEEK tubing connector nuts for 1/16" OD tubing are designed for connecting PEEK or stainless steel tubing in the high‑pressure zones of HPLC systems. Designed for standard 10‑32 ports, these fittings provide reliable fluidic connections in demanding analytical applications.
The 47320‑42 features a small 7 mm diameter knurled hex head with short length geometry for wrench tightening in installations where space is limited and secure, high‑pressure sealing is required. This fitting requires a double cone ferrule, sold separately.
Two‑piece tubing connector nuts are often selected for applications requiring slightly higher pressure capability compared to one‑piece connector nuts. The compatible double cone ferrule swages onto the tubing for dependable grip while helping prevent tubing rotation during tightening procedures.
As ferrules wear during normal use, they can be replaced while continuing to reuse the tubing connector nut.
Key Benefits
Small hex head for wrench tightening
Short length design for limited clearance areas
Two‑piece configuration for higher pressure capability
Compatible with PEEK or stainless steel tubing
Reusable nut design with replaceable ferrules
Natural PEEK construction for chemical resistance
Suitable for high‑pressure HPLC applications
Bulk pricing available for laboratory and OEM requirements
Specifications
Material: Natural PEEK
Tubing Size: 1/16" OD
Thread: 10‑32
Head Type: Small hex head
Head Diameter: 7 mm
Configuration: Two‑piece
Length: 11 mm
Thread Length: 7 mm
Tightening Method: Wrench tighten
Ferrule Compatibility: Double cone ferrules
Usage Notes
For high‑pressure HPLC applications
Compatible with PEEK or stainless steel tubing
Designed for analytical HPLC systems
Requires double cone ferrules sold separately
Not recommended for UHPLC applicationS
