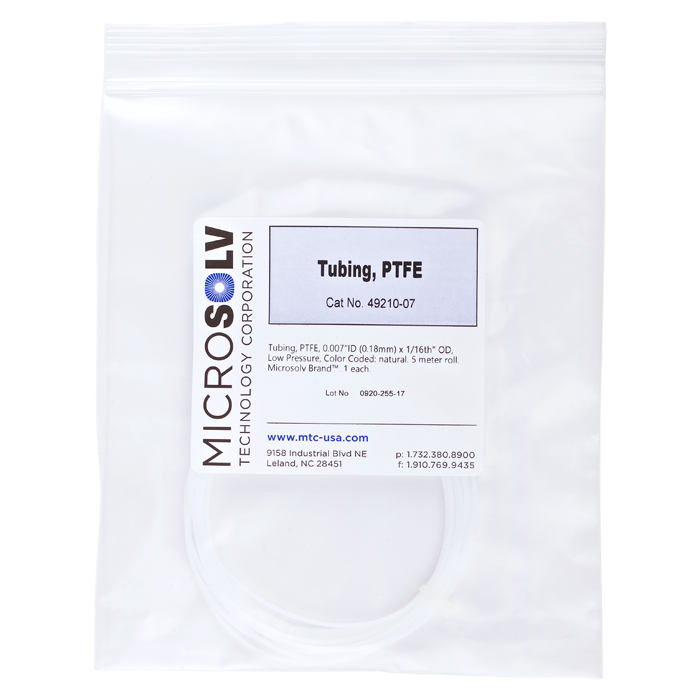

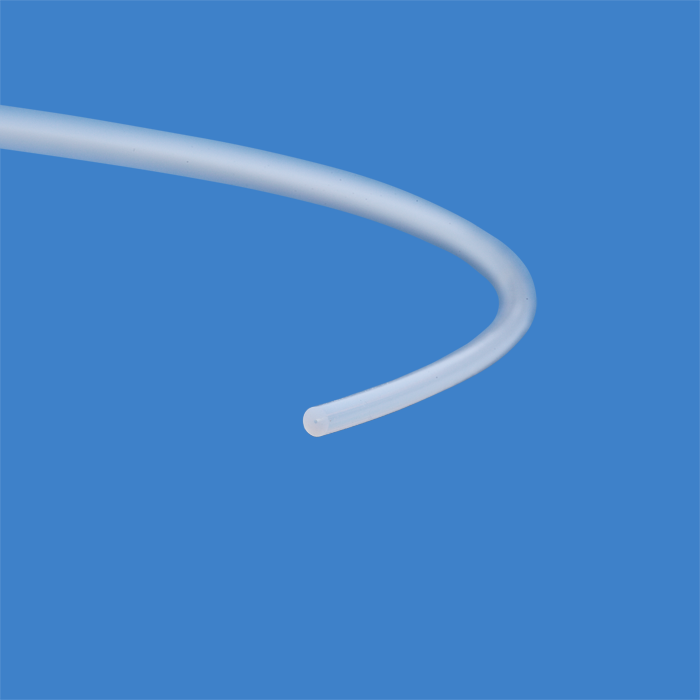

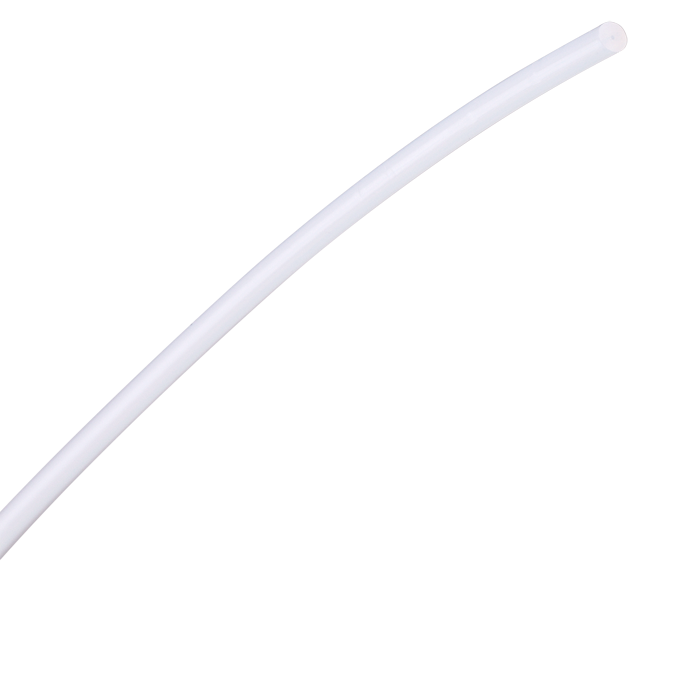

Tubing, PTFE, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 5 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-07 ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, delivering excellent chemical resistance, flexibility, and consistent dimensional performance.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring minimal contamination risk and compatibility with sensitive analytical workflows.
Precision Dimensions – Optimized for Low Flow Applications
Inner Diameter (ID): 0.007" (0.18 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Ideal for low flow rates and precise fluid control
Low‑Pressure Chromatography Performance
Designed for low‑pressure applications, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General solvent transfer
Pressure Rating: 850 psi (58.6 bar)
✅ Suitable for mobile phase delivery and solvent waste systems
Virgin PTFE Construction – High Purity & Inertness
Made from 100% virgin PTFE
No additives (except trace color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and high‑sensitivity analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding laboratory environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores that allow minor gas exchange
Important consideration for:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative materials where gas impermeability is critical
Flexible & Durable Design
Flexible for easy routing and installation
Durable for repeated use
Natural translucent color allows visual flow confirmation
✅ Enhances ease of use and system setup
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets environmental and safety standards
Available Length Options
✅ Select the length that best fits your application:
5 meter roll (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Solvent waste lines
Low‑pressure fluid transfer systems
General laboratory tubing applications
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability when using degassed or oxygen‑sensitive solvents
Ensure proper fittings for secure connections
