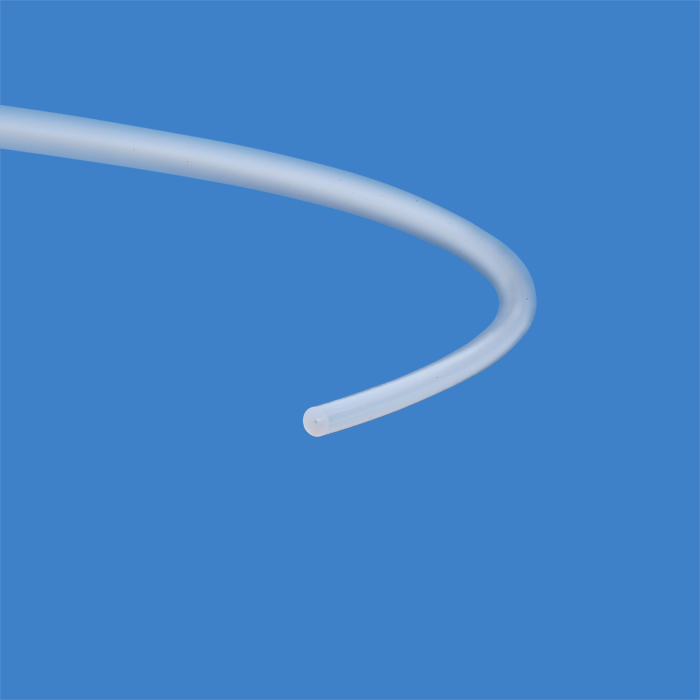

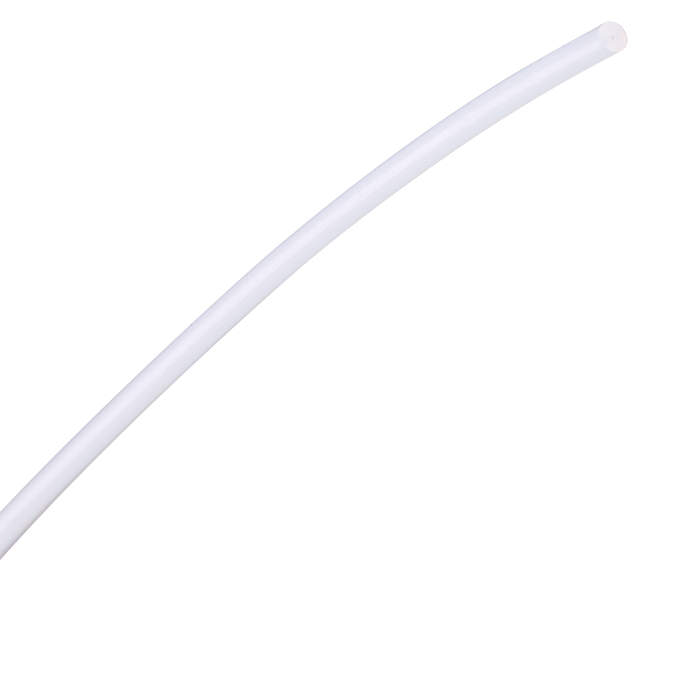

Tubing, PTFE, 0.007 inch (0.18 mm) ID, 1/16th inch (1.6 mm) OD, low pressure, 25 meter roll, ARE-Applied Research brand. 1 EA.
Additional Info:
49210-07-C ARE‑Applied Research PTFE Tubing is a high‑purity, low‑pressure fluid transfer solution engineered for HPLC, UHPLC, LC‑MS, and general laboratory applications, providing excellent chemical resistance, flexibility, and consistent dimensional performance over long distances.
Manufactured from virgin PTFE resin, this tubing contains no additives or plasticizers, ensuring minimal contamination risk and compatibility with sensitive analytical workflows.
Supplied on a convenient 25 meter spool, this configuration is ideal for lab standardization, custom system builds, and high‑volume usage environments.
Precision Dimensions – Extended Low Flow Control
Inner Diameter (ID): 0.007" (0.18 mm)
Outer Diameter (OD): 1/16" (1.6 mm)
Wall Thickness: 0.71 mm
Tolerance (ID & OD): ± 0.10 mm
✅ Ideal for low flow applications and long‑distance solvent routing
Low‑Pressure Chromatography Performance
Designed for low‑pressure fluid paths, including:
Pre‑pump mobile phase delivery
Post‑detector waste lines
General laboratory solvent transfer
Pressure Rating: 850 psi (58.6 bar)
✅ Supports extended tubing runs and consistent solvent handling
Virgin PTFE Construction – High Purity & Inertness
Made from 100% virgin PTFE
No additives (except minimal color coding particles)
Chemically inert and non‑reactive
✅ Minimizes contamination risk in LC‑MS and high‑sensitivity analyses
Broad Chemical & Thermal Resistance
Resistant to:
Organic solvents
Acids and bases
Aqueous mobile phases
Maximum Temperature: 260 °C
✅ Suitable for demanding and continuous-use environments
Micro‑Porous Structure – Application Consideration
PTFE tubing contains micropores that allow slight gas exchange
Important when working with:
Degassed solvents
Oxygen‑sensitive applications
✅ Consider alternative materials where gas impermeability is critical
Flexible & Durable Design
Flexible for long‑distance routing and system integration
Durable for repeated lab use
Natural translucent color enables visual flow monitoring
✅ Enhances ease of installation and ongoing maintenance
Convenient Spool Format – High Volume Efficiency
Supplied on a 25 meter spool
Reduces handling complexity
Ideal for:
Custom cut lengths
Multiple system setups
OEM integration
✅ Supports efficient lab operations and inventory management
Regulatory Compliance
Compliant with:
RoHS EU Directive 2011/65/EU
Amendment (EU) 2015/863
✅ Meets global environmental and safety standards
Available Length Options
✅ Choose the length that best fits your application:
25 meter spool (this item)
✅ Custom cut lengths available through Customer Service
Typical Applications
HPLC mobile phase delivery (pre‑pump)
Extended solvent waste line routing
Low‑pressure fluid transfer systems
General laboratory tubing applications
OEM and instrument integration
Important Usage Notes
Not intended for high‑pressure HPLC pump connections
Consider permeability for degassed or oxygen‑sensitive solvents
Use proper fittings to ensure secure connections
