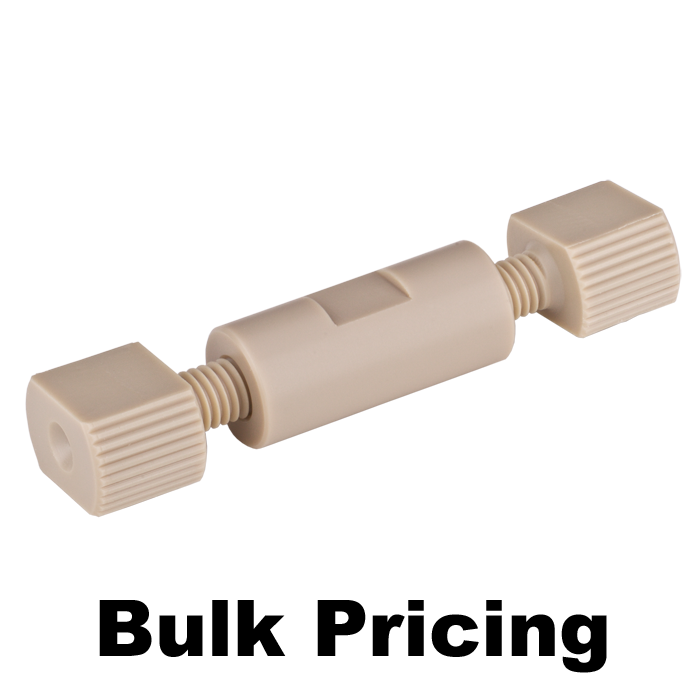

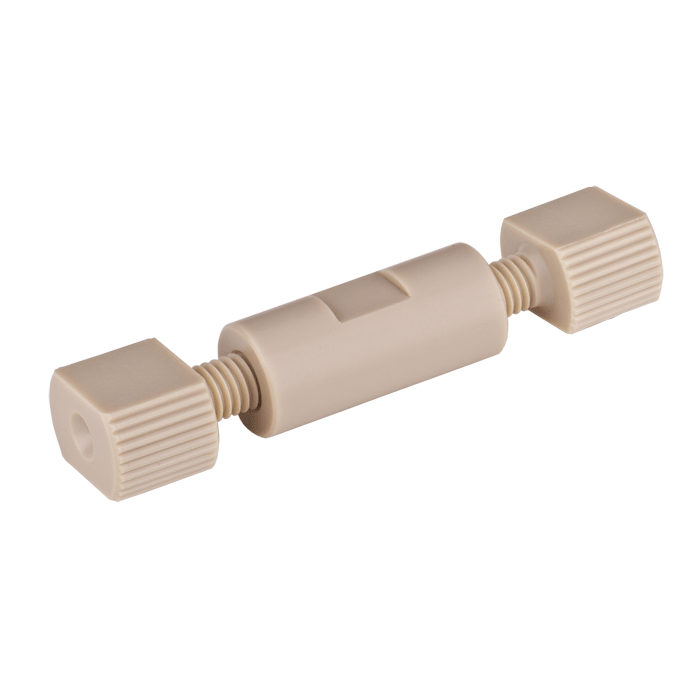

Union, Connector Kit, straight, high pressure, 0.30 mm / 0.012 inch through hole with 10-32 screw threads. PEEK, straight line flow pattern. Use with 1/16th inch tubing. ARE-Applied Research brand. 1 each.
Additional Info:
High‑pressure PEEK union connector kits are designed for connecting 1/16" tubing in analytical HPLC systems requiring chemically resistant, metal‑free flow path components. The low dead volume 0.30 mm (0.012") through hole design and standard 10‑32 screw threads provide dependable high‑pressure tubing connections while minimizing system dispersion.
The 49302‑01 straight‑line union kit is suitable for connecting either PEEK or stainless‑steel tubing in high‑pressure zones of HPLC systems and related laboratory fluid handling applications.
This kit is supplied complete with two Combi Head finger‑tight connector nuts (47301‑05) for simplified installation and reliable sealing performance.
Key Benefits
Low dead volume union design
Straight‑line flow pattern
Includes two Combi Head finger‑tight connector nuts
Compatible with PEEK or stainless‑steel tubing
Chemically resistant PEEK construction
Standard 10‑32 screw thread compatibility
Suitable for high‑pressure HPLC applications
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: High‑pressure union connector kit
Material: PEEK
Through Hole Diameter: 0.30 mm / 0.012"
Thread: 10‑32
Configuration: Straight line
Tubing Compatibility: 1/16" tubing
Included Connectors: Two 47301‑05 Combi Head fittings
Usage Notes
For high‑pressure HPLC applications
Designed for connecting 1/16" tubing
Compatible with PEEK or stainless‑steel tubing
Suitable for analytical HPLC systems
