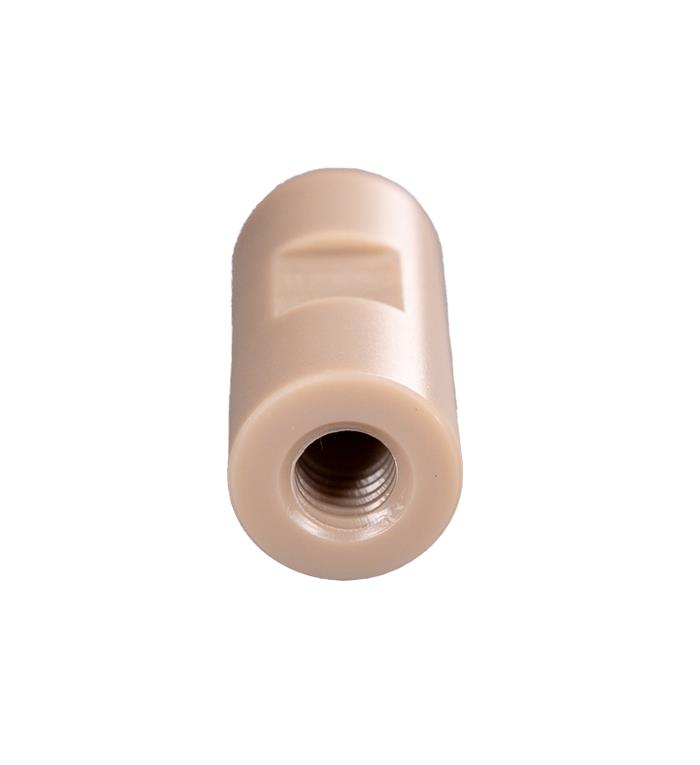

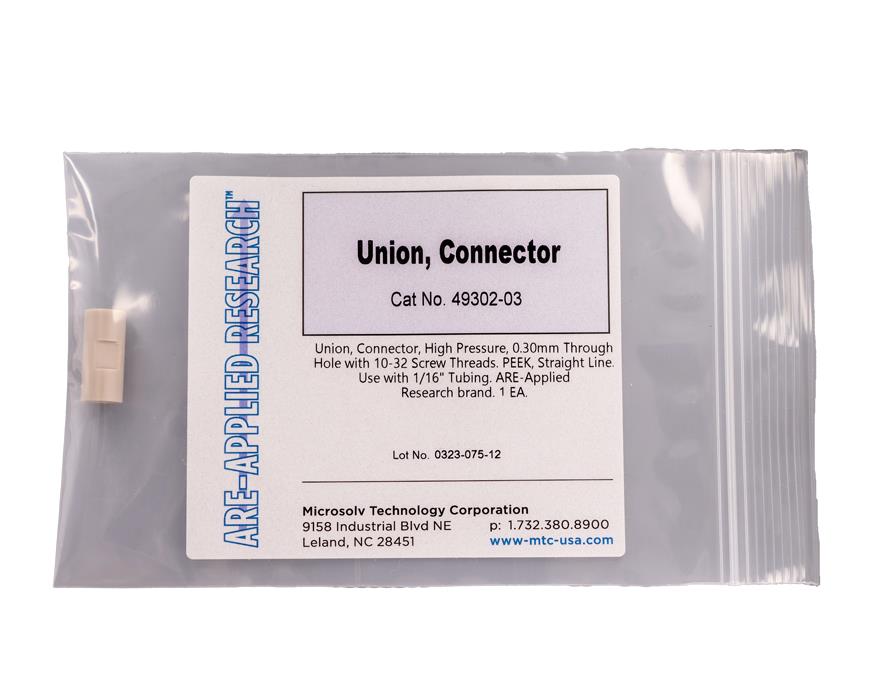

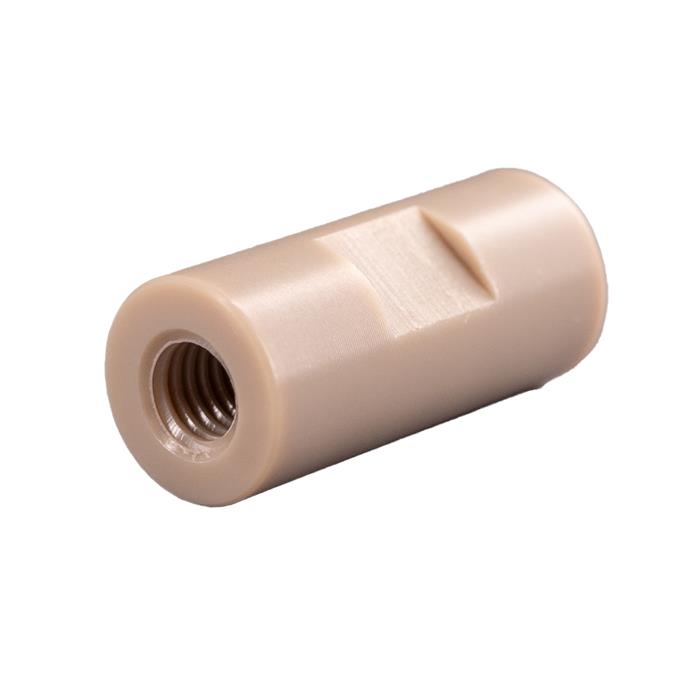

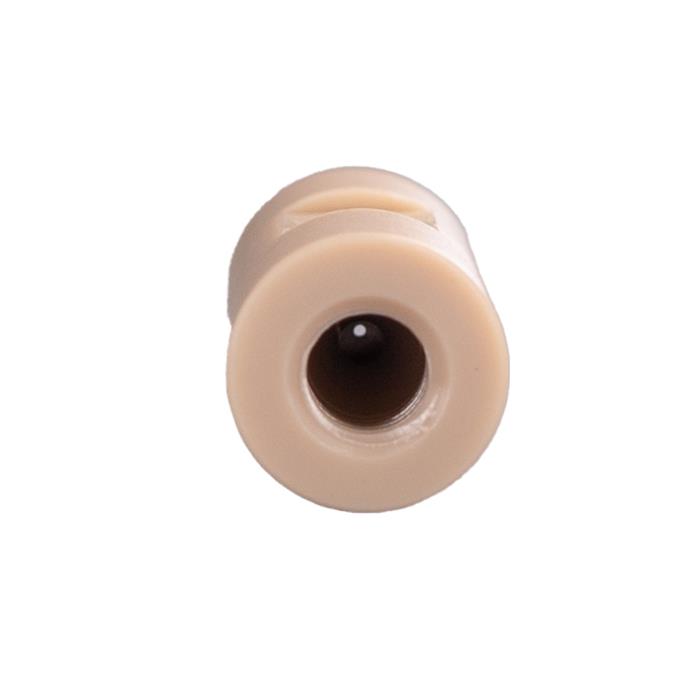

CUSTOM ITEM: Union, Connector, high pressure, 0.30 mm / 0.012 inch through hole with 10-32 screw threads. PEEK, straight line. ARE-Applied Research brand. Bulk Price.
Additional Info:
High‑pressure PEEK unions are designed for connecting 1/16" tubing in analytical HPLC systems requiring chemically resistant, metal‑free flow path components. The low dead volume 0.30 mm (0.012") through hole design and standard 10‑32 screw threads provide dependable high‑pressure tubing connections while minimizing system dispersion.
The 49302‑03 straight‑line union is suitable for connecting either PEEK or stainless‑steel tubing in high‑pressure zones of HPLC systems and related laboratory fluid handling applications.
This fitting is designed for use with separate finger‑tight connector nuts, such as compatible 10‑32 PEEK tubing connector fittings sold separately.
Key Benefits
Low dead volume union design
Straight‑line tubing connection configuration
Compatible with PEEK or stainless‑steel tubing
Chemically resistant PEEK construction
Standard 10‑32 screw thread compatibility
Suitable for high‑pressure HPLC applications
Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: High‑pressure union connector
Material: PEEK
Through Hole Diameter: 0.30 mm / 0.012"
Thread: 10‑32
Configuration: Straight line
Tubing Compatibility: 1/16" tubing
Usage Notes
For high‑pressure HPLC applications
Designed for connecting 1/16" tubing
Compatible with PEEK or stainless‑steel tubing
Requires separate connector nuts sold separately
Suitable for analytical HPLC systems
Resources & Ordering Options
View Compatible 10‑32 Finger‑Tight PEEK Tubing Connector Nuts for High‑Pressure HPLC Applications
View Key Differences Between High‑Pressure and Low‑Pressure Unions and Adapters
Custom Item Pricing Information
