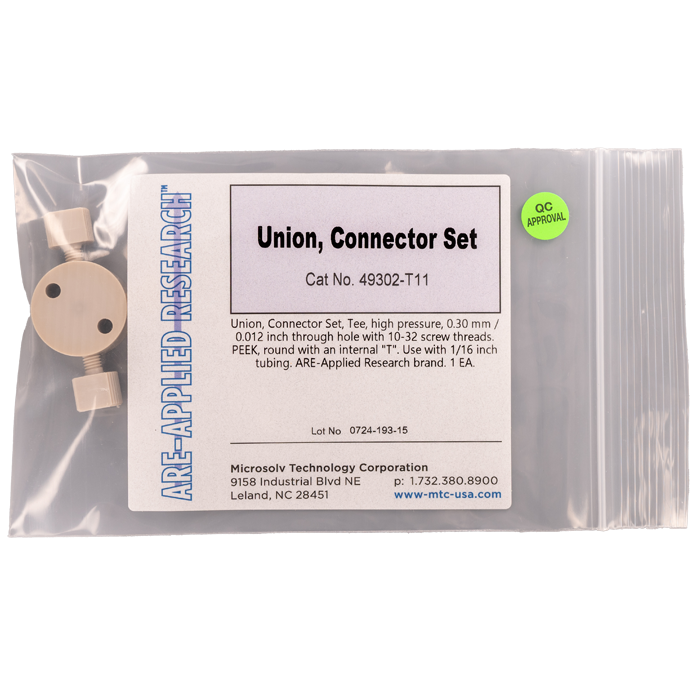

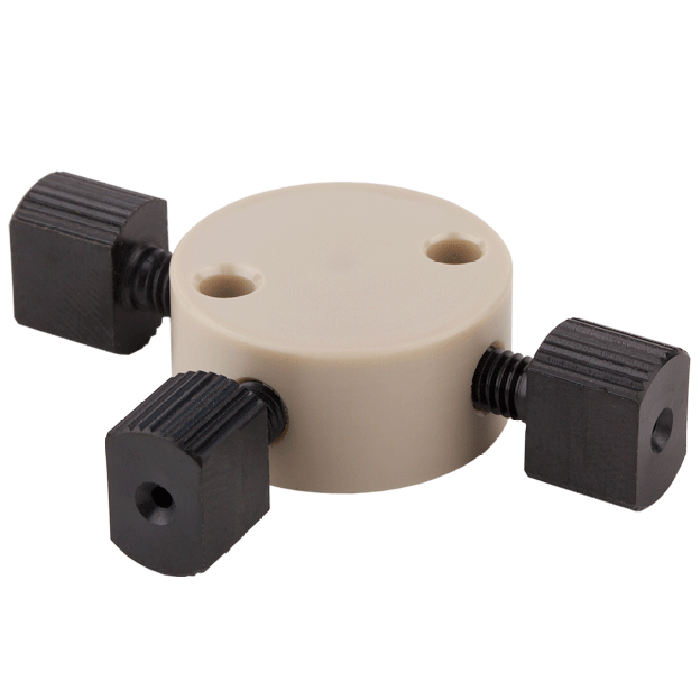

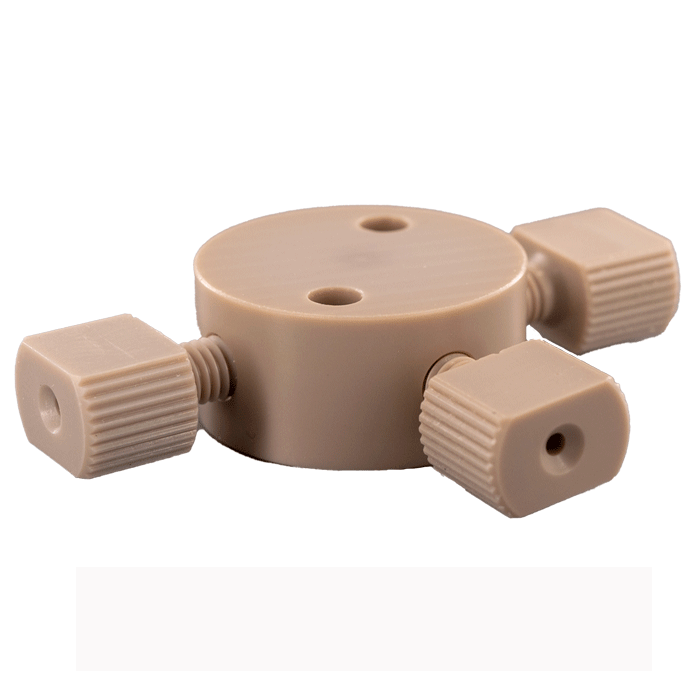

Union, Connector Set, Tee, high pressure, 0.30 mm / 0.012 inch through hole with 10-32 screw threads. PEEK, round with an internal "T". Use with 1/16 inch tubing. ARE-Applied Research brand. 1 each.
Additional Info:
High‑pressure PEEK Tee union connector sets are designed for connecting tubing in analytical HPLC systems requiring chemically resistant, metal‑free flow path components. The low dead volume 0.30 mm (0.012") through hole design and standard 10‑32 screw threads provide dependable tubing connections while minimizing system dispersion.
The 49302‑T11 Tee union set is suitable for connecting PEEK or stainless‑steel tubing on all ports in high‑pressure zones of HPLC systems and related analytical fluid handling applications.
This Tee fitting contains an internal T configuration commonly used to split one flow stream into two directions or combine two incoming streams into one outlet flow path.
Key Benefits
High‑pressure Tee configuration for flow splitting or combining
Low dead volume design
Compatible with PEEK or stainless‑steel tubing
Includes finger‑tight connector nuts
Chemically resistant PEEK construction
Standard 10‑32 screw thread compatibility
Suitable for analytical HPLC applications

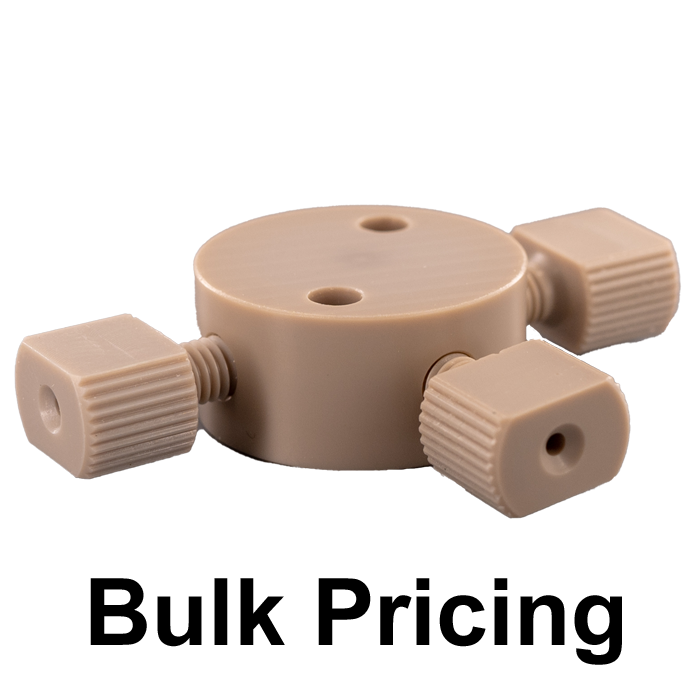

Bulk pricing available for laboratory and OEM requirements
Specifications
Product Type: High‑pressure Tee union connector set
Material: PEEK
Through Hole Diameter: 0.30 mm / 0.012"
Thread: 10‑32
Configuration: Internal Tee (T)
Tubing Compatibility: 1/16" tubing
Dead Volume: 0.689 µL

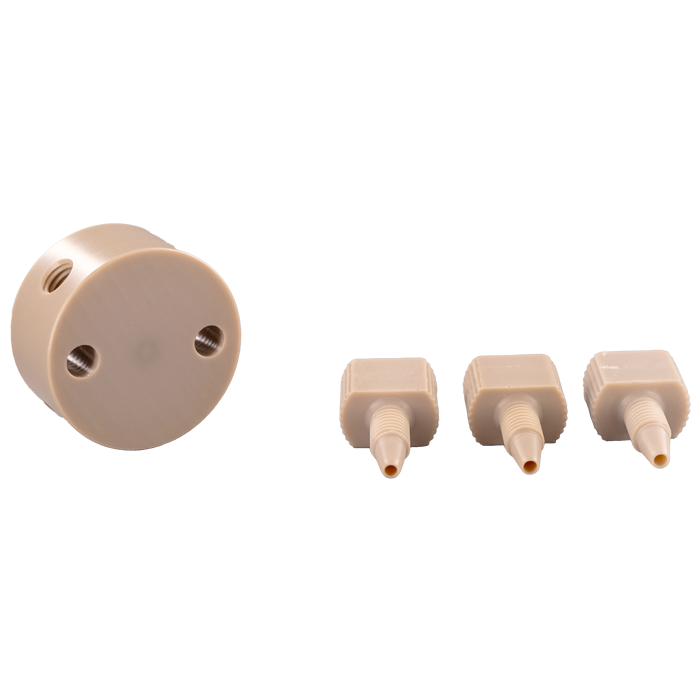

Included Components: Three finger‑tight connectors 47320‑10N
Usage Notes
For high‑pressure HPLC applications
Designed for flow splitting or stream combining
Compatible with PEEK or stainless‑steel tubing
Suitable for analytical laboratory systems
Not recommended for UHPLC applications
Custom item
Non‑returnable
