CUSTOM ITEM: Packing Seal, PEEK, for use with 4.6 mm ID column packing adapters and 4.6 mm or 7.5 mm ID slurry reservoirs. ARE-Applied Research brand. Bulk Price.
Additional Info:

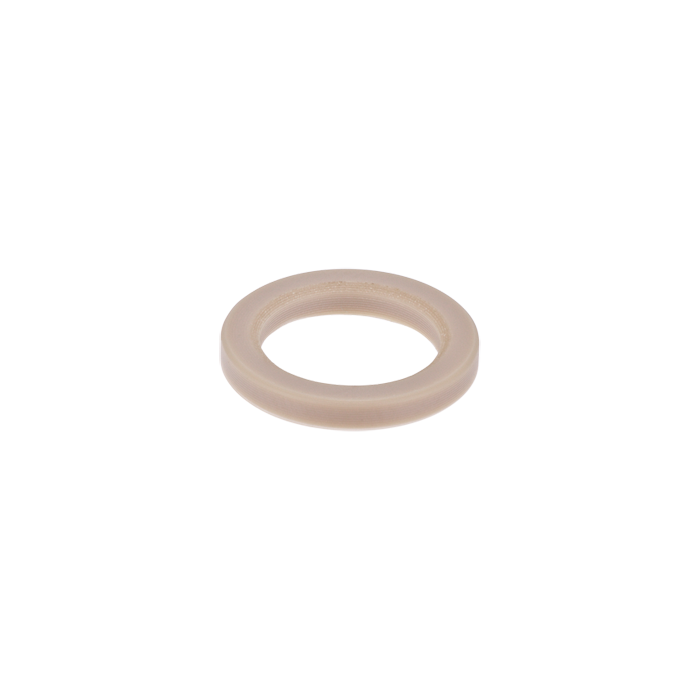

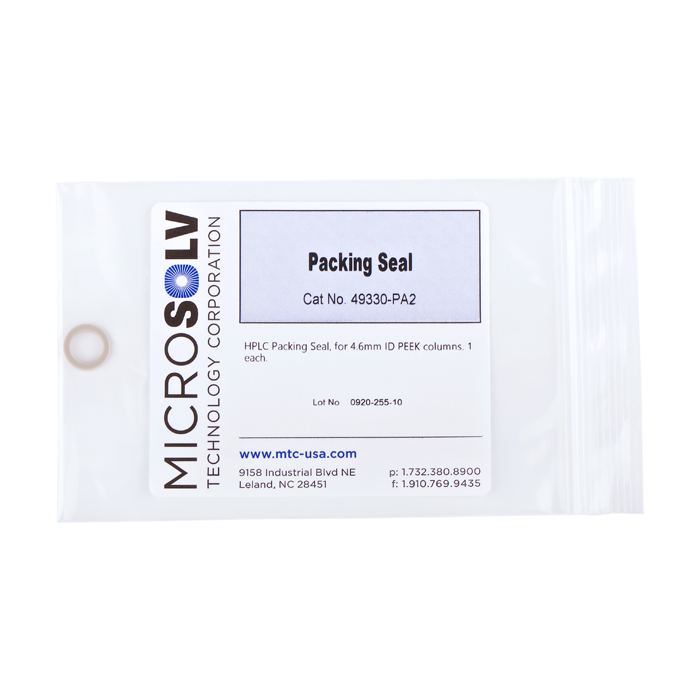

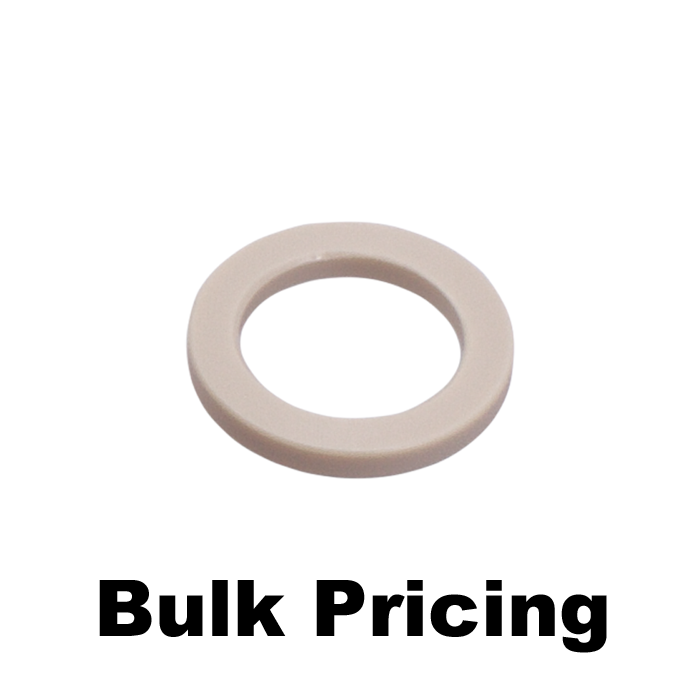

The 49330‑PA2 PEEK Packing Seal is a sealing component used in 4.6 mm ID All‑PEEK HPLC column packing systems. It is designed for use with packing adapters and slurry reservoirs, enabling controlled flow transition and secure connection during packing.
This seal is commonly used when packing 4.6 mm ID columns with 7.5 mm slurry reservoirs, helping reduce flow from the larger reservoir to the smaller column diameter.
✅ Key Benefits
Flow Reduction from 7.5 mm to 4.6 mm Enables controlled slurry transfer during packing
Bioinert PEEK Construction Eliminates metal exposure
Improved Sealing Integrity Ensures secure connection during packing workflows
System Compatibility Works with All‑PEEK adapters and slurry reservoirs
Performance & Design
Precision-machined PEEK sealing ring
Maintains tight, stable connections
Supports uniform slurry flow during packing
Designed for repeat use in packing workflows
System Role & Integration
Used with:
Typical configuration:
1 × 49330‑PA2 seal
2 × 49333‑PS seals
Function:
Reduces flow from 7.5 mm reservoir to 4.6 mm column
Ensures controlled packing and proper sealing
⚠️ Usage Notes
Designed for All‑PEEK column packing systems only
Not recommended for use with stainless steel hardware
⚠️ Custom Order Item Non-returnable and non-cancelable once ordered
Specifications
Product Type: Packing Seal / Sealing Ring
Material: PEEK
Compatible Column ID: 4.6 mm
Compatible Reservoir ID: 4.6 mm and 7.5 mm
Function: Flow reduction and sealing during packing
Flow Path: Bioinert / metal‑free
Brand: ARE‑Applied Research™
Packaging: Bulk (Custom Item)
Custom Item Pricing Information
