Catalog Number - 49333-SR3

The 49333‑SR3 All‑PEEK Slurry Reservoir Kit is a high-capacity column packing system designed for 7.5 mm ID All‑PEEK HPLC columns longer than 100 mm. This kit provides all required components for controlled slurry delivery, enabling uniform packing and highly reproducible chromatographic performance for semi‑preparative and purification-scale columns.

The included reservoir body is 600 mm long with a 7.5 mm internal diameter, offering an approximate internal volume of 26.5 mL. This extremely high-volume configuration is optimized for long column packing where sustained slurry delivery, stable pressure, and large packing volumes are required.

The entire system is fully bioinert and metal‑free, ensuring compatibility with proteins, peptides, nucleic acids, and other metal‑sensitive analytes.

✅ Why Choose This Slurry Reservoir Kit

• Designed for Long 7.5 mm Columns (>100 mm) Supports semi‑prep and purification-scale column packing

• Highest Capacity Reservoir (~26.5 mL) Enables extended packing cycles and large slurry volumes

• Complete Packing System (Ready to Use) Includes all components required for efficient workflows

• True Bioinert Flow Path (All‑PEEK Construction) Eliminates metal interactions

• Reproducible Packing Performance Ensures consistent bed formation for high-capacity separations

Performance & Design

• Reservoir Body (600 mm × 7.5 mm ID)

  • Internal volume: ~26.5 mL

  • Designed for long semi‑prep columns

• Thread Configuration

  • Reservoir: 5/8‑18 threaded connections (both ends)

  • Adapter:

    • 5/8‑18 internal threads (column connection)

    • 5/8‑18 internal threads (reservoir connection)

• Engineered to:

  • Deliver sustained, high-volume slurry flow

  • Maintain stable pressure over long packing durations

  • Support uniform bed formation in large-diameter columns

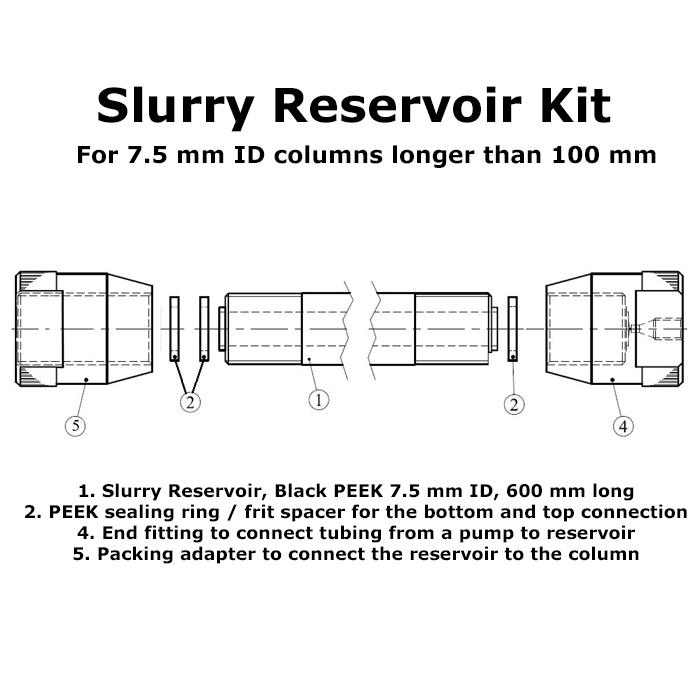

What’s Included in the Kit

• 1 × Slurry Reservoir Body (PEEK) – 600 mm length, 7.5 mm ID

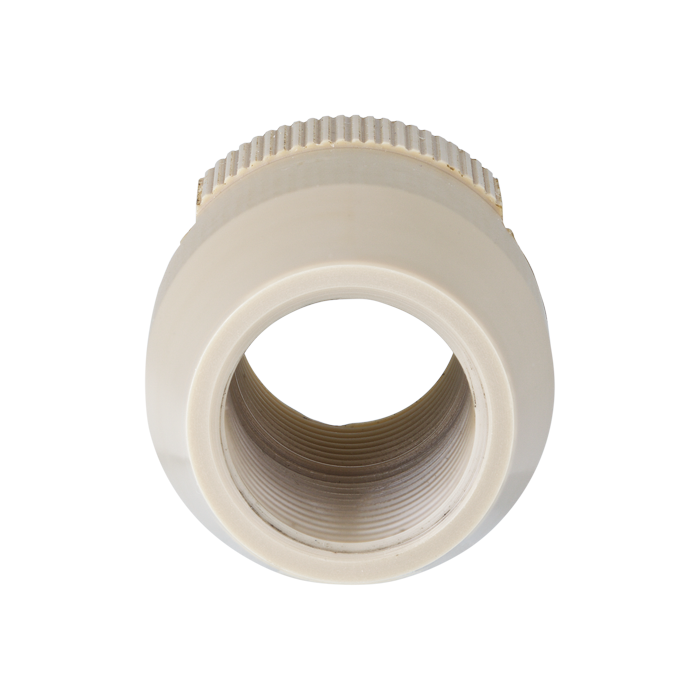

• 1 × End Fitting – Connects pump tubing to reservoir

• 3 × PEEK Sealing Rings / Frit Spacers – Top and bottom sealing

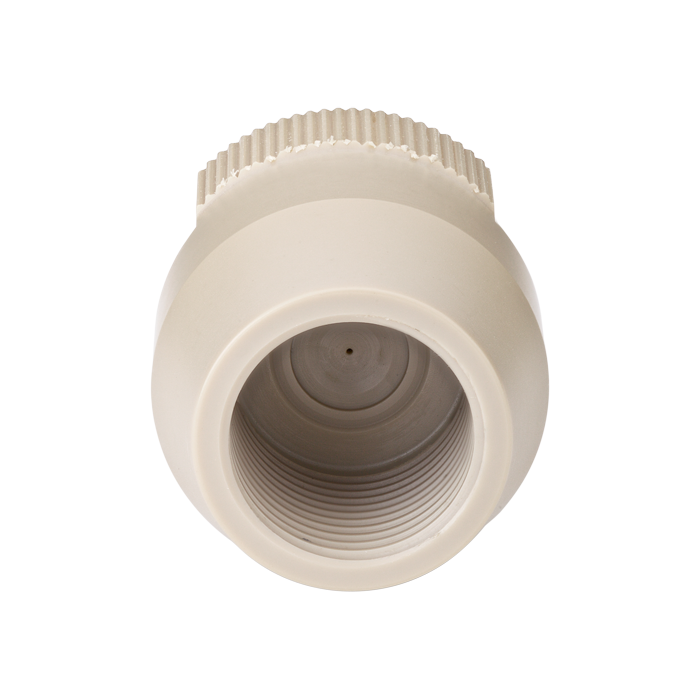

• 1 × Packing Adapter – Connects reservoir to column

✔ Provides everything required for bioinert 7.5 mm column packing

System Role & Integration

This kit supports advanced column packing workflows, delivering:

• Controlled slurry flow from pump → reservoir → column

• Stable pressure conditions for long, high-volume packing cycles

• Consistent bed formation for purification-scale separations

Used with:

• 7.5 mm ID All‑PEEK column hardware

• Frits (typically 5 µm for semi‑prep)

• End fittings (EF7 series)

• Packing adapters and seals (PA3, PS, FS3)

👉 Columns and packing materials are sold separately

Use Case Positioning

Semi‑Preparative / Purification Column Packing System (7.5 mm ID, >100 mm)

• Ideal for:

  • High-capacity purification workflows

  • Scale-up from analytical methods

  • Long column separations requiring maximum loading

Typical Applications

• Semi‑Preparative HPLC Column Packing (7.5 mm ID)

• Purification of proteins and peptides

• Impurity isolation and scale‑up workflows

• Pharmaceutical development and process chromatography

⚠️ Usage & System Guidance

• Designed exclusively for All‑PEEK column hardware systems

• Not compatible with stainless steel or mixed-material systems

• Clean components individually after use

• Do not store assembled under pressure or tightly connected

Assembly & Ordering Resources

• 👉 View assembly instructions for slurry reservoir and column setup

• 👉 View compatible 7.5 mm columns and packing components

Specifications

• Product Type: Slurry Reservoir Packing Kit

• Material: All‑PEEK

• Reservoir Length: 600 mm

• Reservoir ID: 7.5 mm

• Internal Volume: ~26.5 mL

• Threading:

  • Reservoir: 5/8‑18

  • Adapter: 5/8‑18 (both sides)

• Compatible Column ID: 7.5 mm

• Recommended Column Length: >100 mm

• Flow Path: Bioinert / metal‑free

• Brand: ARE‑Applied Research™

• Unit: 1 Kit
