Catalog Number - 49330-SR1

The 49330‑SR1 All‑PEEK Slurry Reservoir Kit is a complete column packing system designed for 2.1 mm ID All‑PEEK HPLC columns longer than 100 mm. This kit provides all required components for controlled slurry delivery, enabling uniform packing and highly reproducible chromatographic performance for longer analytical columns.

The included reservoir body is 250 mm long with a 4.6 mm internal diameter, offering an approximate internal volume of 4.1 mL. This increased volume is optimized for longer columns that require greater slurry capacity and more sustained packing conditions. The system is fully bioinert and metal‑free, making it ideal for LC‑MS and sensitive analyte workflows.

✅ Why Choose This Slurry Reservoir Kit

• Designed for Long 2.1 mm Columns (>100 mm) Provides sufficient slurry volume for extended column packing

• Complete Packing System (Ready to Use) Includes all components required for column packing workflows

• True Bioinert Flow Path (All‑PEEK Construction) Eliminates metal interactions during packing and use

• High Reservoir Volume (~4.1 mL) Supports consistent slurry delivery over longer packing cycles

• Reproducible Packing Performance Ensures uniform bed formation for high-resolution separations

Performance & Design

• Reservoir Body (250 mm × 4.6 mm ID)

  • Internal volume: ~4.1 mL

  • Optimized for long column packing (>100 mm)

• Thread Configuration

  • Reservoir: 1/2‑20 external threads (both ends)

  • Adapter:

    • 1/4‑28 internal thread (system/pump connection)

    • 1/2‑20 internal thread (column connection)

• Engineered to:

  • Deliver controlled, sustained slurry flow

  • Maintain uniform packing pressure over longer durations

  • Enable consistent, high-efficiency column packing

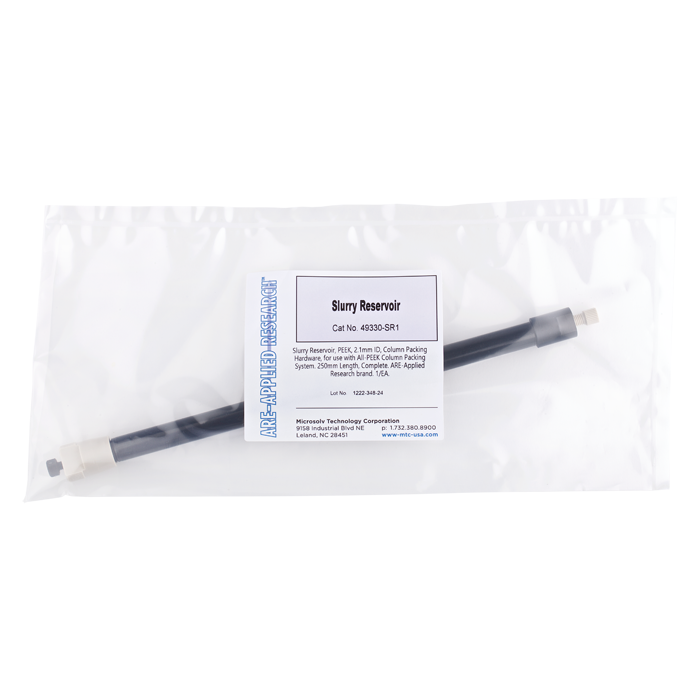

What’s Included in the Kit

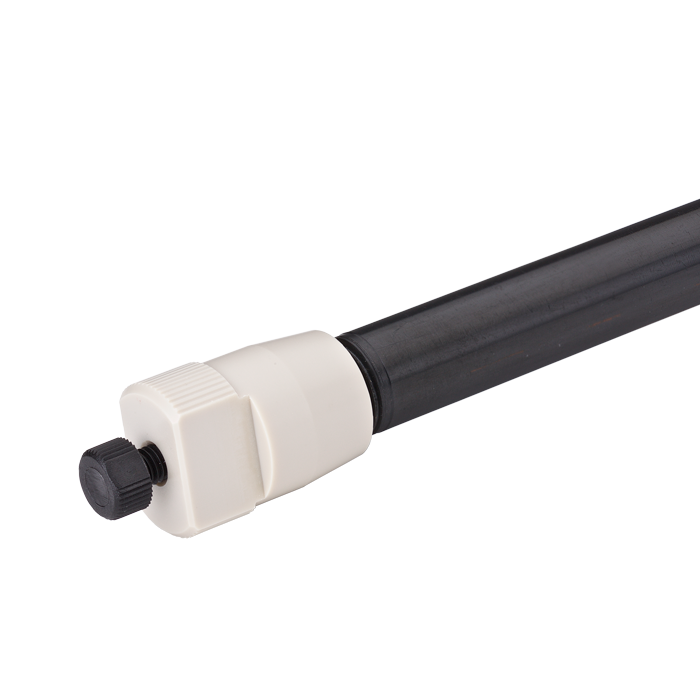

• 1 × Slurry Reservoir Body (PEEK) – 250 mm length, 4.6 mm ID

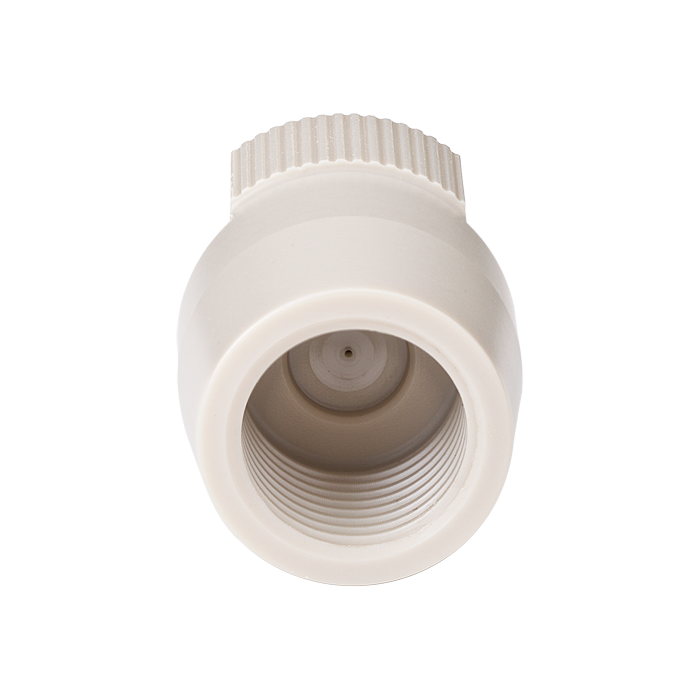

• 1 × End Fitting – Connects pump tubing to reservoir

• 2 × PEEK Sealing Rings – Top and bottom sealing

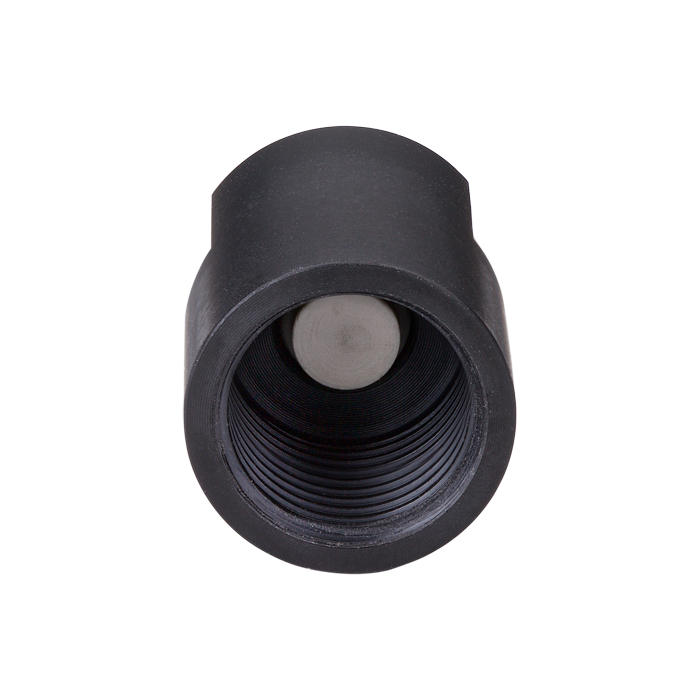

• 1 × Packing Adapter – Connects reservoir to column

• 1 × ETFE Sealing Ring – Column interface sealing

✔ Provides everything required for bioinert 2.1 mm column packing

System Role & Integration

This kit is used in advanced column packing workflows, providing:

• Controlled slurry delivery from pump → reservoir → column

• Stable pressure and flow conditions for long columns

• Consistent bed formation across extended column lengths

Used with:

• 2.1 mm ID All‑PEEK column hardware

• Frits, end fittings, and packing components

👉 Columns and packing materials are sold separately

Use Case Positioning

Long Column Packing System (2.1 mm ID, >100 mm)

• Ideal for:

  • High-resolution analytical separations

  • Method development requiring maximum peak capacity

  • Advanced LC‑MS workflows

Typical Applications

• LC‑MS Column Packing (2.1 mm ID)

• High-Resolution Analytical Methods

• Bioinert Chromatography (proteins, peptides, nucleic acids)

• Pharmaceutical Method Development and Validation

⚠️ Usage & System Guidance

• Designed exclusively for All‑PEEK column hardware systems

• Not compatible with stainless steel or mixed-material systems

• Clean components individually after use

• Do not store fully assembled under pressure or tightened connections

Assembly & Ordering Resources

• 👉 View assembly instructions for slurry reservoir and column setup

• 👉 View compatible columns and packing components

Specifications

• Product Type: Slurry Reservoir Packing Kit

• Material: All‑PEEK with ETFE sealing component

• Reservoir Length: 250 mm

• Reservoir ID: 4.6 mm

• Internal Volume: ~4.1 mL

• Threading:

  • Reservoir: 1/2‑20 external

  • Adapter: 1/4‑28 (system side), 1/2‑20 (column side)

• Compatible Column ID: 2.1 mm

• Recommended Column Length: >100 mm

• Flow Path: Bioinert / metal‑free

• Brand: ARE‑Applied Research™

• Unit: 1 Kit
