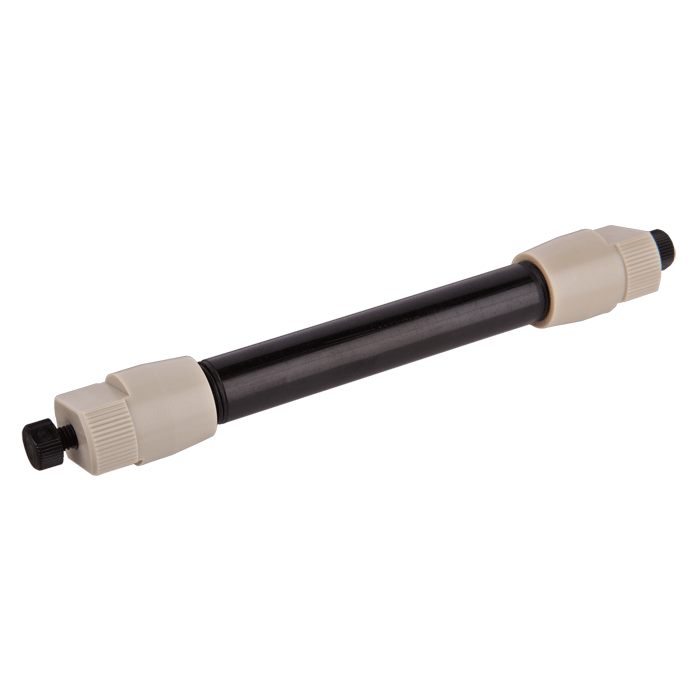

HPLC Column Set, PEEK with a 4.6 mm ID. Includes, a 100 mm x 4.6 mm black, column body tube (1/2-20 threads), plus 2 PEEK 2 um frits & 2 end fittings. ARE-Applied Research brand. 1 EA.
Additional Info:
The 49335‑100 All‑PEEK HPLC Column Set is designed for professional column packers and advanced chromatographers who require full control over bioinert column construction. This 100 mm length configuration is ideal for analytical separations requiring increased resolution and retention.
PEEK (polyether ether ketone) column hardware provides a fully metal‑free flow path, eliminating unwanted interactions that can occur between analytes and stainless steel surfaces. This makes it the preferred choice for proteins, peptides, nucleic acids, ions, and metal‑sensitive small molecules, where adsorption or catalytic effects can negatively impact chromatographic results.
✅ Why Choose All‑PEEK Column Hardware
True Bioinert Flow Path Eliminates metal interaction for sensitive compounds
Improved Recovery & Peak Shape Minimizes adsorption and secondary interactions
Pack Any Stationary Phase Complete flexibility for custom column development
Reusable & Repackable Design Ideal for method development and optimization
Standard 1/2‑20 Thread Format Compatible with common 4.6 mm packing hardware and systems
Performance & Design
The column body is produced using a proprietary extrusion process that results in a smooth, mirror‑like internal surface, supporting:
Consistent and reproducible packing
Reduced flow disruption
Improved separation efficiency
This column is constructed from graphite-filled PEEK, where the graphite is incorporated prior to extrusion, not as a surface treatment.
Key advantages:
No chemical coatings or post‑processing
Uniform internal surface chemistry
Durable black outer finish for long-term handling

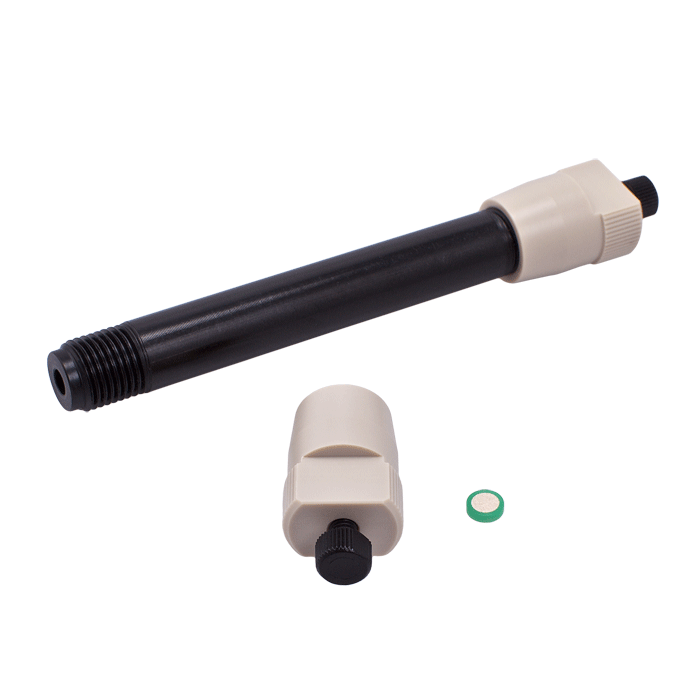

Included Components
100 mm × 4.6 mm ID All‑PEEK column body (1/2‑20 threads)
2 × 2 µm PEEK frits
2 × PEEK end fittings
Use Case Positioning
4.6 mm ID / 100 mm Length
Balanced resolution and run time
Ideal for method development and routine analytical work
Increased separation efficiency vs shorter columns
Typical Applications
Protein & Peptide Separations
Nucleic Acid Analysis
Ion Chromatography
Bioanalytical Method Development
Custom Packing of Analytical Columns
LC‑MS Applications requiring metal‑free flow paths
⚠️ When to Use PEEK Column Hardware
Select All‑PEEK columns when:
Analytes are sensitive to metal surfaces
Maximum sample recovery and reproducibility are required
Working with biomolecules or coordination-sensitive compounds
Packing & Compatibility
For optimal column packing and performance:
Use with ARE‑Applied Research™ All‑PEEK slurry reservoir kits
Match frit porosity to particle size
Maintain a fully bioinert packing environment
Read guidelines for packing All‑PEEK HPLC columns and achieving consistent column performance
Specifications
Hardware Type: All‑PEEK Column Set
Internal Diameter: 4.6 mm
Length: 100 mm
Thread Type: 1/2‑20
Material: Extruded PEEK (graphite‑filled)
Frits: 2 µm PEEK
Flow Path: Metal‑free (bioinert)
Surface Treatment: None (no coatings)
Reusability: Repackable
Brand: ARE‑Applied Research™
Unit: 1 Each
