Catalog Number - 49331-SR1

The 49331‑SR1 All‑PEEK Slurry Reservoir Kit is a complete column packing system designed for 4.6 mm ID All‑PEEK HPLC columns up to 100 mm in length. This kit provides all required components for controlled slurry packing, ensuring uniform bed formation and reproducible chromatographic performance for analytical-scale columns.

The included reservoir body is 100 mm long with a 7.5 mm internal diameter, providing an approximate internal volume of 4.4 mL, optimized for packing 4.6 mm columns where increased slurry volume and stable pressure are required. The system is fully bioinert and metal‑free, making it ideal for sensitive compounds and bioanalytical workflows.

✅ Why Choose This Slurry Reservoir Kit

• Optimized for 4.6 mm Columns (≤100 mm Length) Provides appropriate volume for analytical column packing

• Complete Packing System (Ready to Use) Includes all components required for efficient column packing

• True Bioinert Flow Path (All‑PEEK Construction) Eliminates metal interactions

• Higher Reservoir Volume (~4.4 mL) Supports stable slurry delivery for 4.6 mm columns

• Reproducible Packing Performance Ensures consistent bed formation and reliable separations

Performance & Design

• Reservoir Body (100 mm × 7.5 mm ID)

  • Internal volume: ~4.4 mL

  • Designed for analytical-scale packing

• Thread Configuration

  • Reservoir: 5/8‑18 external threads (both ends)

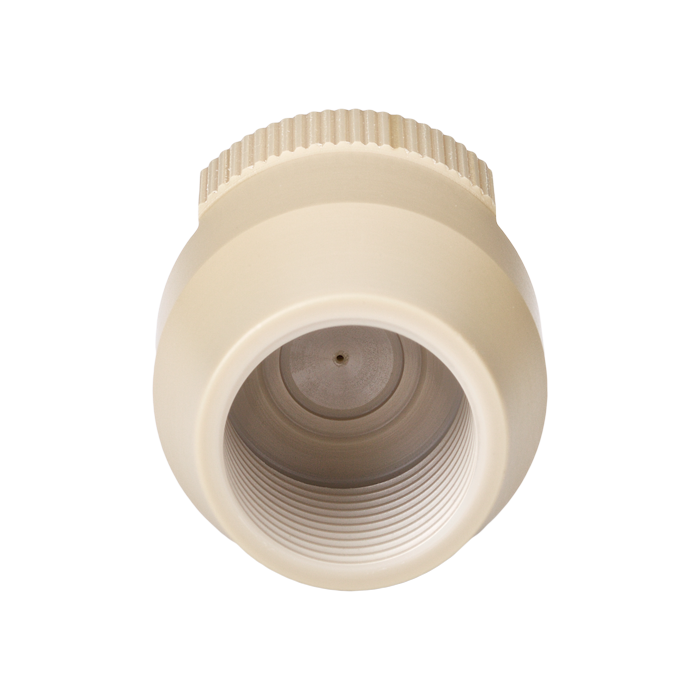

  • Adapter:

    • 1/2‑20 internal thread (column connection)

    • 5/8‑18 internal thread (reservoir connection)

• Engineered to:

  • Deliver controlled slurry flow

  • Maintain stable packing pressure

  • Enable consistent and reproducible column packing

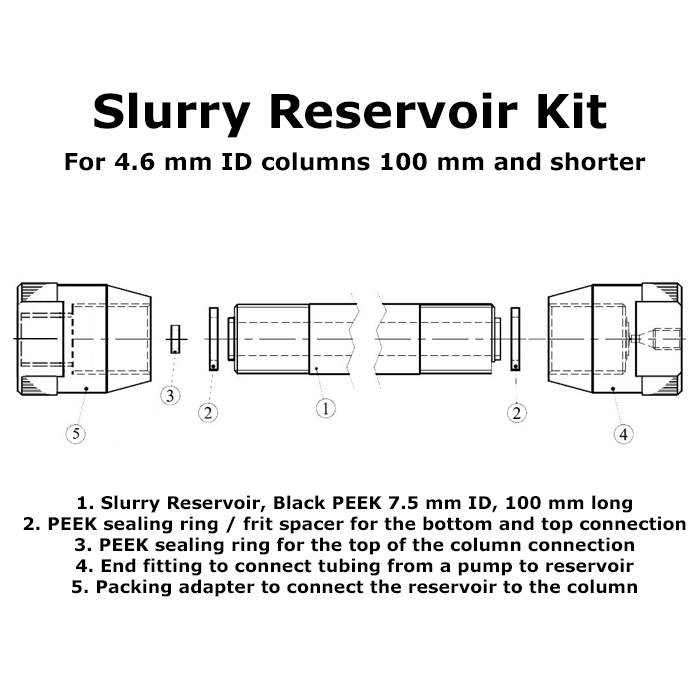

What’s Included in the Kit

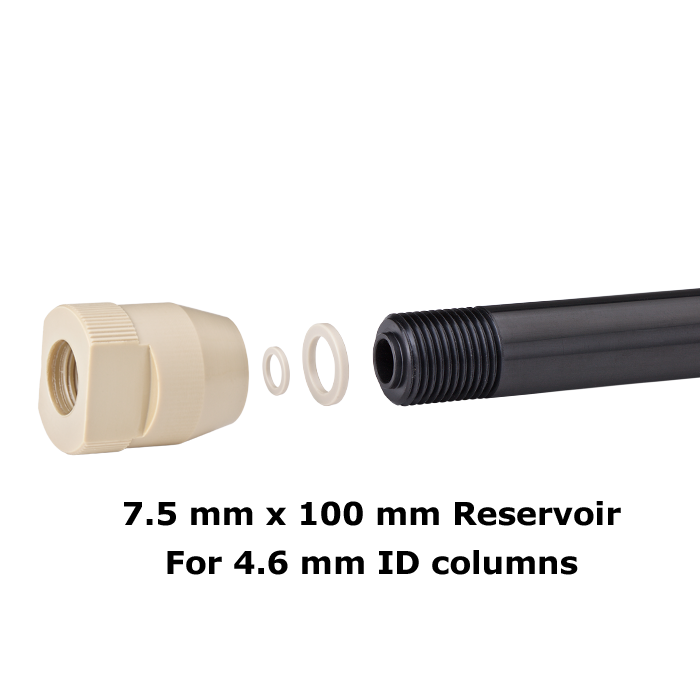

• 1 × Slurry Reservoir Body (PEEK) – 100 mm length, 7.5 mm ID

• 1 × End Fitting – Connects pump tubing to reservoir

• 3 × PEEK Sealing Rings / Frit Spacers – Top and bottom sealing

• 1 × Packing Adapter – Connects reservoir to column

✔ Provides everything required for bioinert 4.6 mm column packing

System Role & Integration

This kit is used in column packing workflows, providing:

• Controlled slurry delivery from pump → reservoir → column

• Stable pressure and flow conditions

• Consistent bed formation and packing reproducibility

Used with:

• 4.6 mm ID All‑PEEK column hardware

• Frits, end fittings (EF4 series), and packing components

👉 Columns and packing materials are sold separately

Use Case Positioning

Analytical Column Packing System (4.6 mm ID, ≤100 mm)

• Ideal for:

  • Standard analytical HPLC methods

  • Method development and validation

  • Bioinert chromatography workflows

Typical Applications

• Analytical HPLC Column Packing (4.6 mm ID)

• Pharmaceutical QC & Method Development

• Protein, Peptide, and Biomolecule Analysis

• Reproducible Column Manufacturing Workflows

⚠️ Usage & System Guidance

• Designed exclusively for All‑PEEK column hardware systems

• Not compatible with stainless steel or mixed-material systems

• Clean all components individually after use

• Do not store assembled under pressure or tight assembly

Assembly & Ordering Resources

• 👉 View assembly instructions for slurry reservoir and column setup

• 👉 View compatible 4.6 mm columns and packing components

Specifications

• Product Type: Slurry Reservoir Packing Kit

• Material: All‑PEEK

• Reservoir Length: 100 mm

• Reservoir ID: 7.5 mm

• Internal Volume: ~4.4 mL

• Threading:

  • Reservoir: 5/8‑18 external

  • Adapter: 1/2‑20 (column side), 5/8‑18 (reservoir side)

• Compatible Column ID: 4.6 mm

• Recommended Column Length: ≤100 mm

• Flow Path: Bioinert / metal‑free

• Brand: ARE‑Applied Research™

• Unit: 1 Kit
