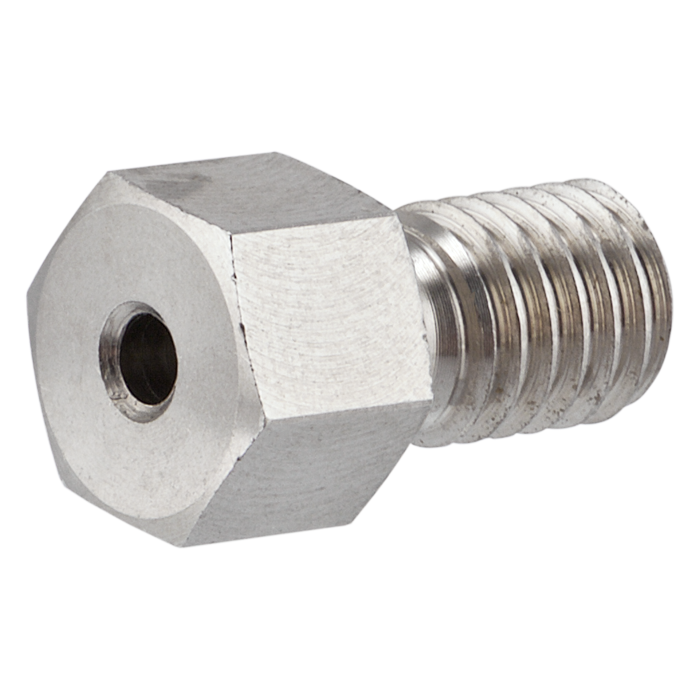

CUSTOM ITEM: Tubing Connector Male Nuts, high pressure, 1/16-inch, Stainless Steel, 12 mm total length with a hex head and 10-32 screw threads. Ferrules sold separately. ARE-Applied Research brand. Bulk Price.
Additional Info:
Stainless steel tubing connector nuts for 1/16" OD tubing provide secure connections in high-pressure HPLC systems. Designed for 10‑32 ports, these fittings are used with stainless steel tubing and require compatible ferrules for proper sealing.
The 49590‑01 features a compact 12 mm length and hex head, allowing reliable wrench tightening in space-limited areas such as injector ports.
Key Benefits
316L stainless steel for strength and corrosion resistance
Hex head for secure wrench tightening
Compact length for tight instrument spaces
Designed for permanent, high-pressure connections
Bulk custom for flexible ordering
Specifications
Material: 316L Stainless Steel
Tubing Size: 1/16" OD
Thread: 10‑32
Head Type: Hex
Length: 12 mm
Connection Type: High pressure
Usage Notes
For high-pressure HPLC applications
Requires single cone stainless steel ferrules
