Catalog Number - 68024-P30-PG1-3

Cogent RP Phenyl Wide Pore Guard Column Cartridges are packed with the same C3-phenyl bonded stationary phase used in Cogent RP Phenyl Wide Pore preparative columns. Manufactured with high-purity silica and exhaustive double endcapping, these cartridges provide the aromatic selectivity and π-π interaction characteristics that make RP Phenyl an effective choice when separating aromatic, structurally related, and larger molecular weight compounds.

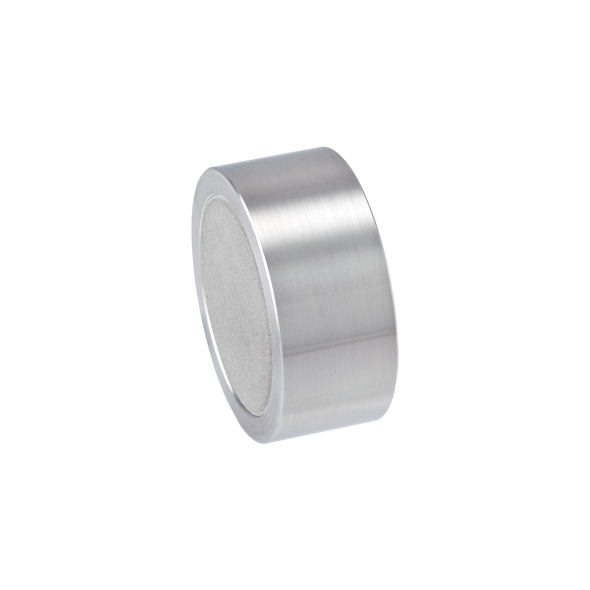

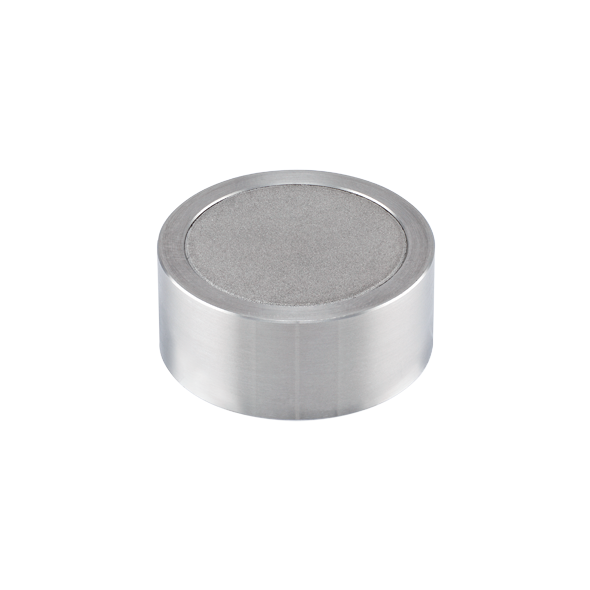

68024-P30-PG1-3 is a preparative guard column cartridge packed with 10 µm RP Phenyl Wide Pore particles featuring a 300 Å pore size in a 30 mm ID x 10 mm format. Installed ahead of the preparative column, the cartridge helps trap particulates, strongly retained contaminants, and sample matrix components before they reach the analytical bed. This protection helps preserve column efficiency, improve reproducibility, and extend the service life of the primary column.

The 300 Å pore structure is well suited for larger molecules and peptide-related applications while maintaining RP Phenyl selectivity. Constructed from stainless steel tubing with stainless steel frits, this guard cartridge is designed for use with compatible 30 mm ID RP Phenyl Wide Pore preparative columns.

Key Benefits

• RP Phenyl Wide Pore stationary phase

• C3-phenyl bonded chemistry

• Strong π-π interaction selectivity

• 300 Å pore size for larger molecules and peptides

• High-purity silica support

• Fully double endcapped

• Helps protect preparative columns from contaminants

• Maintains chromatographic performance

• Stainless steel cartridge construction

• Stainless steel frits

Typical Applications

• Preparative HPLC purification

• Fraction collection

• Peptide purification

• Aromatic compound purification

• Active pharmaceutical ingredient (API) purification

• Natural product purification

• Process development

• Method scale-up

• Column protection

• High-loading preparative workflows

Specifications

• Product Type: Preparative Guard Column Cartridge

• Stationary Phase: RP Phenyl Wide Pore

• Chromatography Mode: Reversed Phase

• Bonded Phase: C3-Phenyl

• Endcapping: Fully Double Endcapped

• Particle Size: 10 µm

• Pore Size: 300 Å

• Cartridge Dimensions: 30 mm ID x 10 mm

• Hardware Material: Stainless Steel

• Frit Material: Stainless Steel

• Quantity: 1 EA

• Brand: Cogent

Guard Column Holder Requirement

• A Cogent 30 mm ID Preparative Guard Column Holder is required for use with this guard cartridge.

• View the Cogent 30 mm ID Preparative Guard Column Holder (83000-P30-GH)

Additional Resources

• View Specifications of Reversed Phase HPLC Columns

• Important Information about Cogent RP Columns

Special Order Item Information

• Contact Customer Service for quotation, lead time, and ordering assistance.

• Learn more about Special Order Items and ordering policies.

Important Notes

• Designed to protect RP Phenyl Wide Pore preparative HPLC columns

• Wide pore design is suitable for larger molecules and peptides

• Matching stationary phase helps maintain chromatographic selectivity

• Recommended for routine purification and scale-up workflows

• Replace as needed based on sample cleanliness and operating conditions

• Requires a compatible 30 mm ID preparative guard column holder

  ---
