Guard Column Cartridges, RP Phenyl, 10um, 100A. 4.0mm ID x 10mm Length. Cogent Brand. 5/PK.
Additional Information:
Cogent RP Phenyl Guard Column Cartridges are packed with the same C3-phenyl bonded stationary phase used in Cogent RP Phenyl analytical columns. Manufactured with high-purity silica and exhaustive double endcapping, these cartridges provide the aromatic selectivity and π-π interaction characteristics that make RP Phenyl an effective choice when separating aromatic and structurally related compounds.
68024-PG2 is a guard column cartridge packed with 10 µm RP Phenyl particles featuring a 100 Å pore size in a 4.0 mm ID x 10 mm format. Installed ahead of the analytical column, the cartridge captures particulates, strongly retained contaminants, and sample matrix components before they reach the analytical bed. This protection helps maintain column efficiency, improve reproducibility, and extend the service life of the primary column.

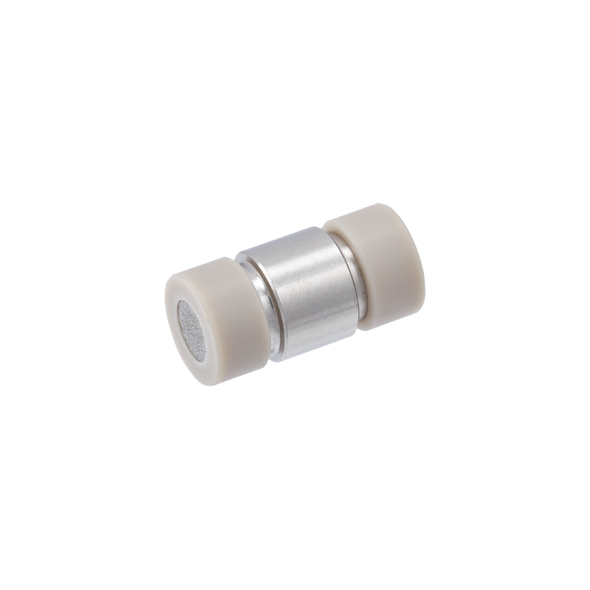

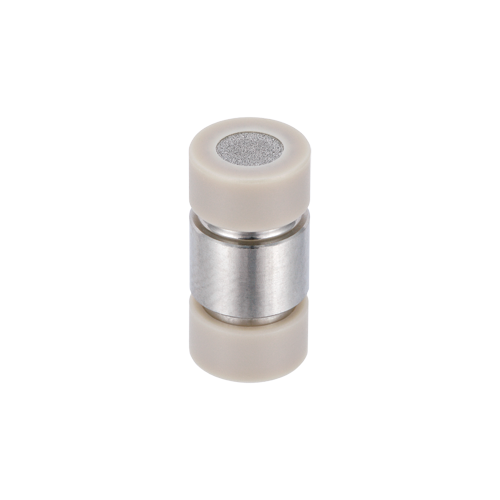

These guard cartridges are designed for use with 3.0 mm, 4.0 mm, and 4.6 mm ID Cogent RP Phenyl analytical columns. Each cartridge is packed in a stainless steel tube and fitted with stainless steel frits in PEEK end caps for durability and reliable performance in routine laboratory applications.
Key Benefits
RP Phenyl stationary phase
C3-phenyl bonded chemistry
Strong π-π interaction selectivity
High-purity silica support
Fully double endcapped
Helps protect analytical columns from contaminants and particulates
Maintains chromatographic performance
Stainless steel cartridge construction
Stainless steel frits with PEEK end caps
Extends analytical column service life
Typical Applications
Analytical HPLC
LC-MS methods
Pharmaceutical analysis
Aromatic compound separations
Positional isomer separations
Method development
Quality control testing
Routine laboratory analysis
Column protection
Sample cleanup prior to analytical separation
Specifications
Product Type: Guard Column Cartridges
Stationary Phase: RP Phenyl
Chromatography Mode: Reversed Phase
Bonded Phase: C3-Phenyl
Endcapping: Fully Double Endcapped
Particle Size: 10 µm
Pore Size: 100 Å
Cartridge Dimensions: 4.0 mm ID x 10 mm
Hardware Material: Stainless Steel
Frit Material: Stainless Steel
End Caps: PEEK
Quantity: 5/PK
Brand: Cogent
Guard Column Holder Requirement
A Cogent Guard Column Holder is required for use with these guard cartridges.
Additional Resources
Important Notes
Designed for use with 3.0 mm, 4.0 mm, and 4.6 mm ID RP Phenyl analytical columns
Matching stationary phase chemistry helps maintain chromatographic selectivity
Recommended for routine analytical and LC-MS workflows
Replace as needed based on sample cleanliness and operating conditions
