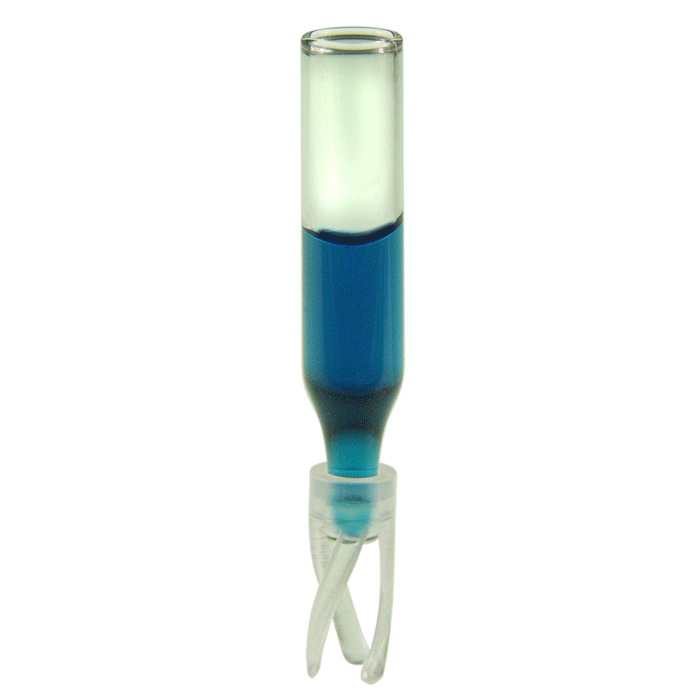

Inserts, Low Volume for Vials, Glass. Clear, 300ul fill volume with a wider, conical point and 6x29mm outer dimensions with plastic spring attached. For use in 2ml autosampler vials. AQ Brand. 100/PK.
Additional Info:
Improve reliability and reduce bubble formation in low‑volume workflows with a wider‑tip insert design.
9502S‑02CP inserts are manufactured from first hydrolytic, Class A, Type 33 borosilicate glass and feature a thicker wall construction combined with a wider conical tip. This design helps minimize bubble formation at the insert tip, improving injection consistency and reducing variability that can occur with certain sample types.
The wider precision cone concentrates the sample while maintaining easy needle access and dependable recovery. Residual volume is approximately 2.5 µL with most autosamplers. Polypropylene springs keep the insert centered within the vial, reducing the risk of needle misalignment and insert breakage during operation.
Manufactured in an ISO 9001:2015 certified facility, these inserts provide consistent quality and performance batch‑to‑batch. This design offers a strong balance of performance and value, making it one of the most widely used and economical options for routine applications.
Key Benefits
300 µL fill volume for low‑volume workflows
~2.5 µL residual volume for effective recovery
Wider conical tip reduces bubble formation
Thicker glass walls increase durability
Improved injection consistency for challenging samples
Spring‑mounted design ensures proper centering
Reduced risk of needle damage or insert breakage
Cost‑effective, high‑value design
Typical Applications
HPLC and UHPLC analysis
LC‑MS workflows
Routine pharmaceutical testing
Environmental and food analysis
Samples prone to bubble formation
Compatibility
Designed for 2 mL (12 × 32 mm) autosampler vials
Compatible with:
9 mm screw top caps
11 mm snap top caps
Performance and Design Notes
Wider cone geometry improves sample stability during injection
Thicker glass increases mechanical strength
Comparable performance to Polyspring™ style inserts
Designed for consistent automation and reproducibility
Important Notes
Ideal for routine workflows requiring durability and consistency
Recommended when bubble formation is a concern
One of the most popular and economical borosilicate insert options
